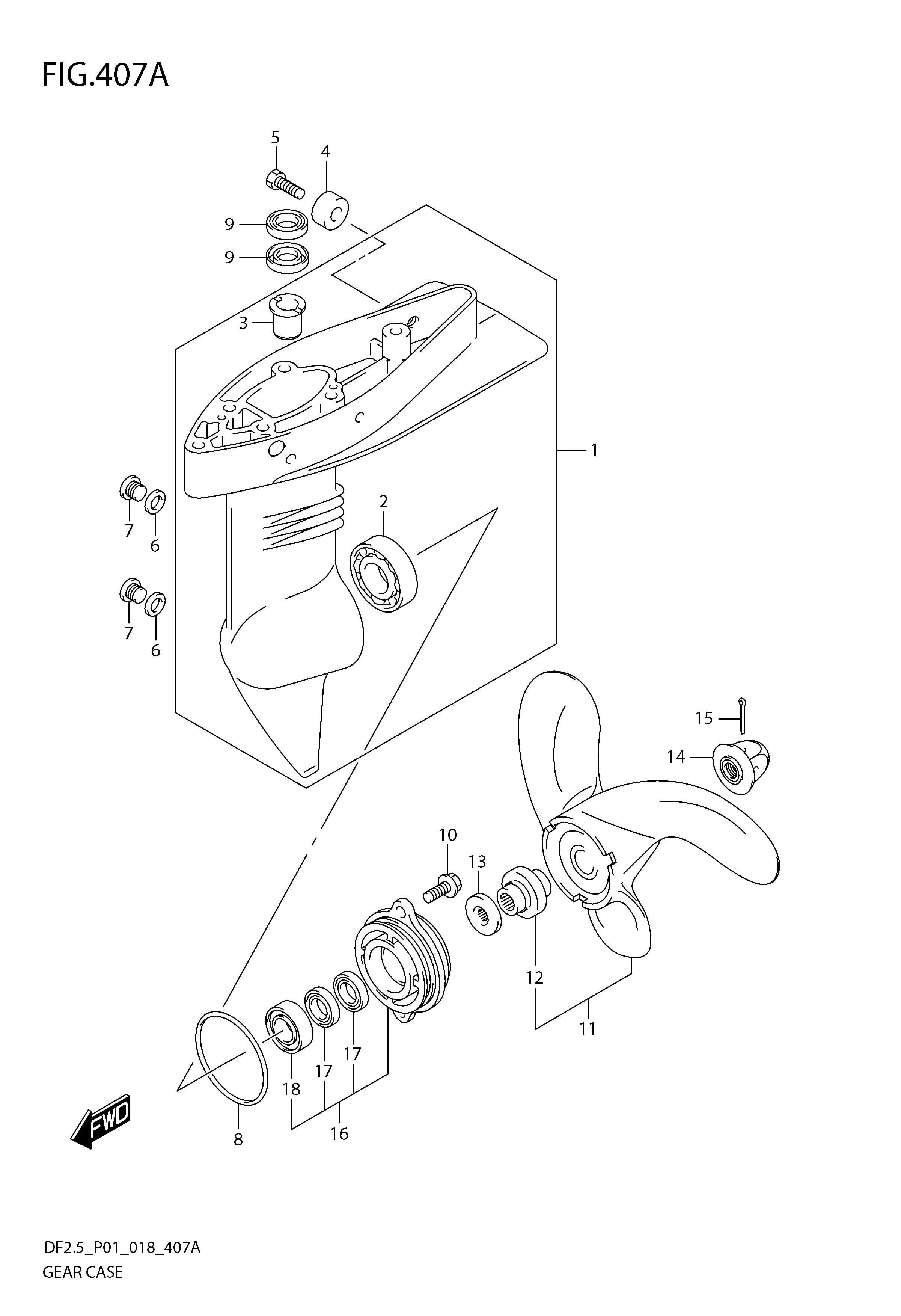

FIG. 407A GEAR CASE

FIG. 407A GEAR CASE
No No. Part Description Qty Price Per Pcs Remarks
1 55110-97J51-YAY CASE, GEAR (BLACK) 1 Rp1.221.500
2 09262-17019-000 BEARING (17X35X8) 1 Rp163.500
3 59311-97J20-000 BUSH, PINION 2 Rp127.500
4 55321-87J01-000 ANODE, PROTECTION 1 Rp79.500
5 09103-06281-000 BOLT (6X14) 1 Rp20.500
6 59178-97J00-000 GASKET, DRAIN PLUG 2 Rp15.000
7 09248-08001-000 PLUG (8X7.5) 2 Rp17.000
8 59291-97J00-000 O RING, PROP SFT BRG HOUSING 1 Rp59.000
9 09282-10008-000 OIL SEAL (10X21X4.5) 2 Rp31.500
10 09116-06225-000 BOLT (6X15) 2 Rp12.500
11 58110-97JA0-019 PROPELLER (3X7-3/8X5-3/8) 1 Rp582.844
12 58120-97JA0-000 BUSH, PROPELLER 1 Rp704.000
13 57635-91JL0-000 STOPPER, PROPELLER BUSH 1 Rp83.000
14 58130-91JL0-000 NUT, PROPELLER 1 Rp108.000
15 09204-03003-000 PIN 1 Rp17.500
16 56120-97J50-YAY HOUSING, PROP SFT BRG (BLACK) 1 Rp710.000
17 09282-12L05-000 OIL SEAL (12X24X4.5) 2 Rp45.000
18 08113-60010-000
SUB: 09262-12001L000		 BEARING (12X28X8) 1 Rp34.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
