DF2.5

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 335A CLAMP BRACKET FIG. 336A SWIVEL BRACKET FIG. 405A DRIVE SHAFT HOUSING TRANSOM(S)FIG. 405B DRIVE SHAFT HOUSING TRANSOM(L)FIG. 407A GEAR CASE FIG. 412A LOWER COVER FIG. 420A ENGINE COVER FIG. 432A FUEL TANK FIG. 444A TILLER HANDLE

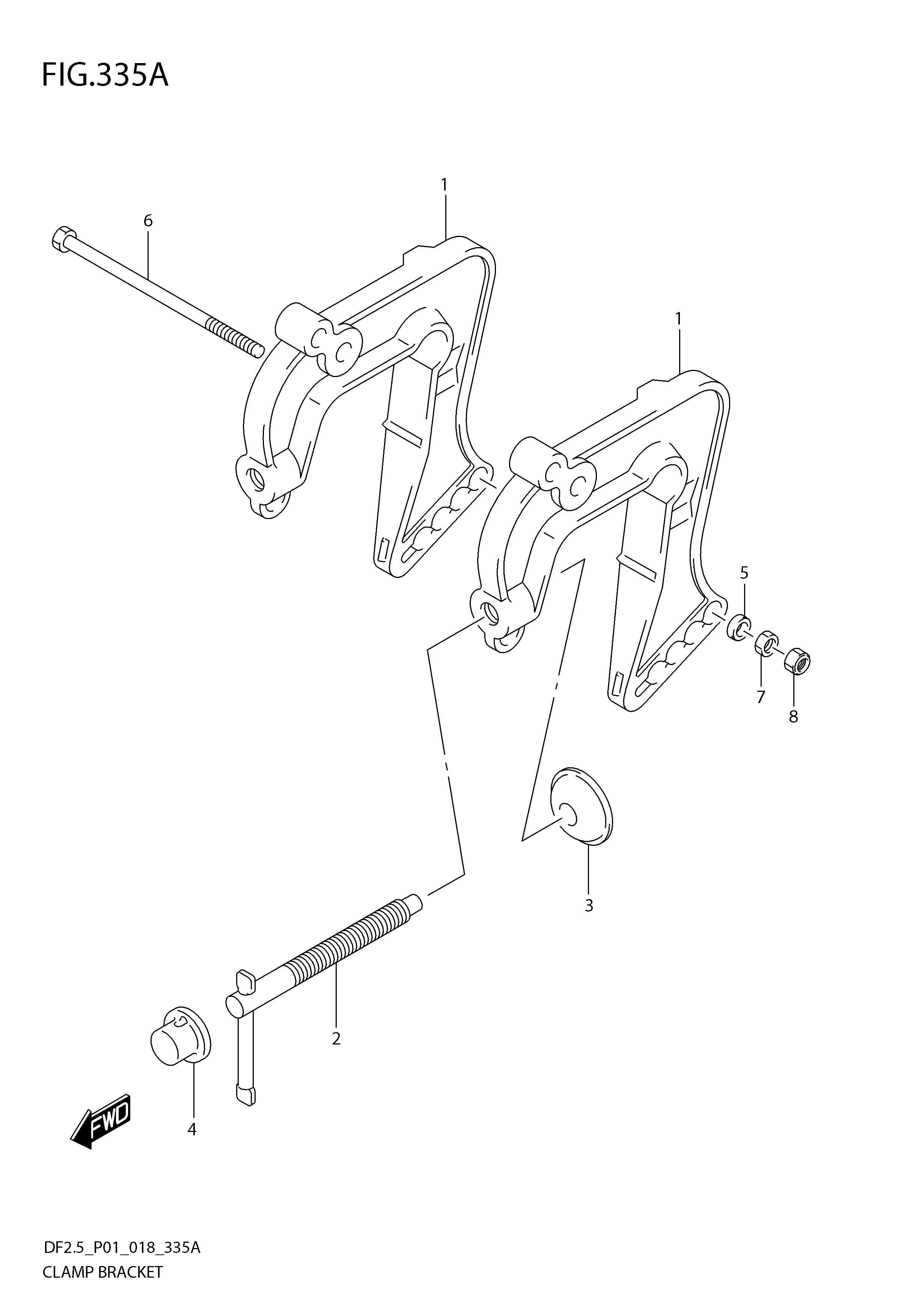

FIG. 335A CLAMP BRACKET

FIG. 335A CLAMP BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	41111-97J31-YAY	BRACKET, CLAMP (BLACK)	2	Rp617.500
2	41210-97J00-000	HANDLE, CLAMP	2	Rp66.500
3	41213-94J01-000	PLATE, CLAMP	2	Rp38.000
4	41214-97J00-000	CAP, CLAMP SCREW	2	Rp8.500
5	59181-97J10-000	SPACER, TILT LOCK	1	Rp10.000
6	09100-06176-000	BOLT (6X120)	1	Rp35.000
7	29141-93J00-000	NUT, TILT LOCK NO.1	1	Rp18.500
8	09159-06079-000	NUT	1	Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
