DF2.5

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 335A CLAMP BRACKETFIG. 336A SWIVEL BRACKETFIG. 405A DRIVE SHAFT HOUSING TRANSOM(S)FIG. 405B DRIVE SHAFT HOUSING TRANSOM(L)FIG. 407A GEAR CASEFIG. 412A LOWER COVERFIG. 420A ENGINE COVERFIG. 432A FUEL TANKFIG. 444A TILLER HANDLE

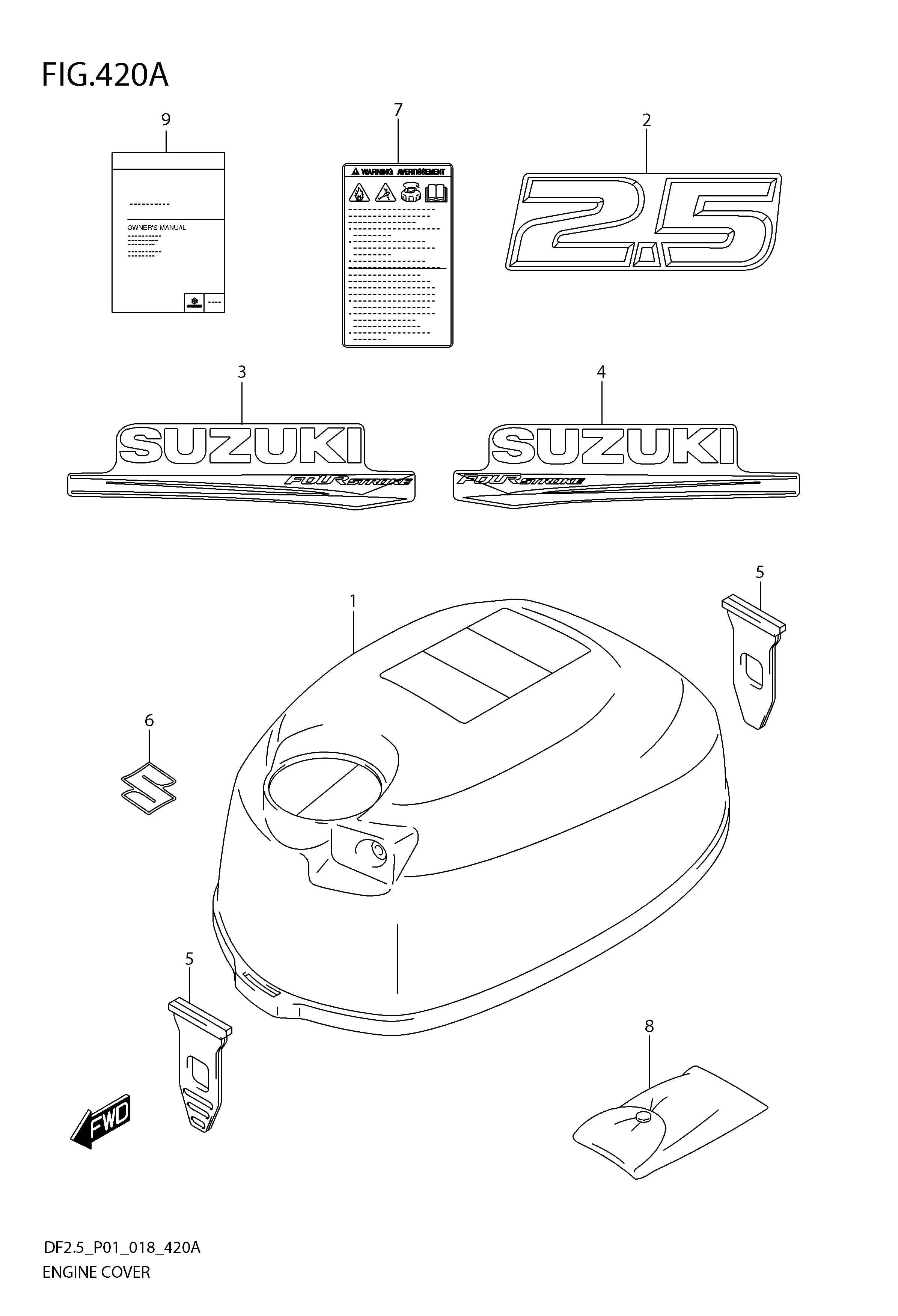

FIG. 420A ENGINE COVER

FIG. 420A ENGINE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 61411-97J10-YR9 COVER, ENGINE UPPER (BLACK) 1 Rp160.000
2 61435-97J50-000 MARK, EMBLEM REAR (2.5) 1 Rp23.500
3 61443-97J30-000 STRIPE, ENGINE COVER STBD 1 Rp59.000
4 61453-97J30-000 STRIPE, ENGINE COVER PORT 1 Rp59.000
5 61611-97J01-000 FASTENER, ENGINE COVER 2 Rp25.000
6 68111-99J00-000 EMBLEM, S 1 Rp22.000
7 61458-97J70-000 LABEL, ENGINE COVER 1 Rp27.000
8 09800-01007-000 TOOL ASSY 1 Rp166.500
9 99011-97J60-055 MANUAL, OWNER'S 1 Rp150.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
