Preview Engine Transmission Electrical Suspension Body

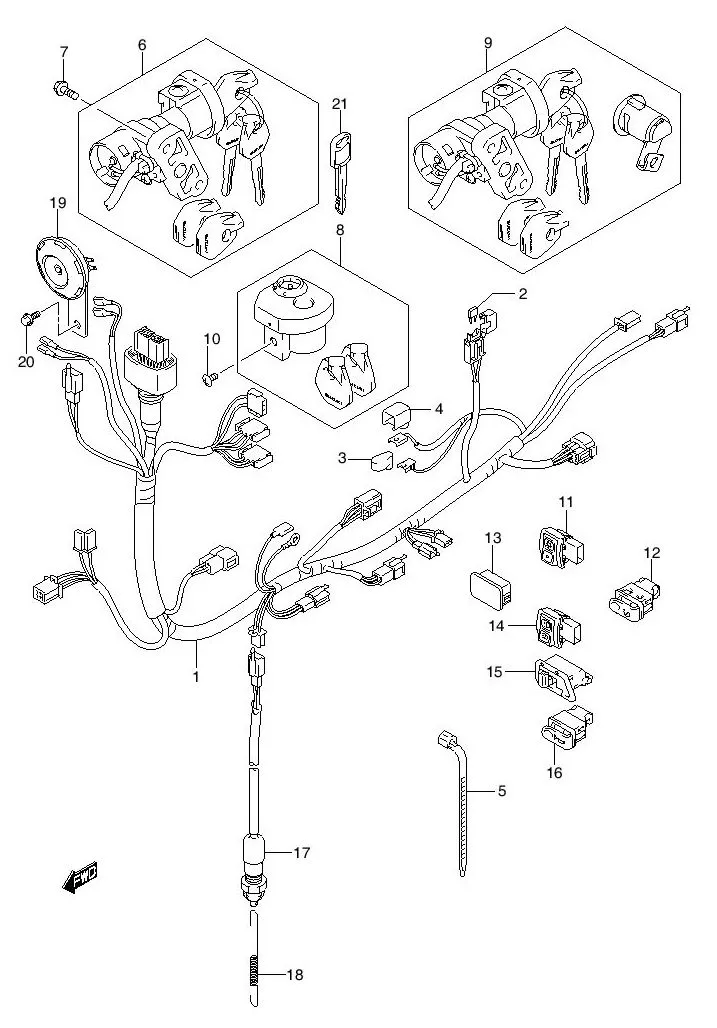

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 36610B47G20N000	HARNESS, WIRING	1	-	FH125MK6
1-1	DISCONTINUE SUB: 36610B47G10N000	HARNESS, WIRING	1	-	FH125DK6
2	09481-10101-000 SUB: 09481B10101N000	.FUSE, 10A	2	Rp4.000
3	31861-11500-000	.CAP, STARTER RELAY	1	-	FH125DK6
4	33624-38D00-000	.CAP, BATTERY	1	-
5-1	09407-18402-000	CLAMP (L:165)	2	Rp8.000
5-2	DISCONTINUE SUB: 09407B25401N000	CLAMP (L:235)	1	-
6	37111B20G10N000	LOCK ASSY, STEERING	1	-
7	01550-0620B-000 SUB: 01550-06203-000	BOLT	2	Rp3.500
8	37155B20G10N000	SHUTTER, STEERING LOCK	1	-
9	37100-20G20-000 SUB: 37100B20G10N000	LOCK SET	1	Rp237.000
10	02142-05803-000	SCREW	1	-
11	37340-09G00-000 SUB: 37340B09G00N000	SWITCH ASSY, LIGHTING	1	Rp20.500
12	37310-09G30-000 SUB: 37310B09G20N000	SWITCH ASSY, STARTER	1	Rp27.500	FH125DK6
13	56322B09G00N000	CAP, HANDLE REAR COVER	1	-	FH125MK6
14	37420-10E10-000 SUB: 37420B09G10N000	SWITCH ASSY, DIMMER	1	Rp19.500
15	37510-10E00-000 SUB: 37510B09G10N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.500
16	37520-09G10-000 SUB: 37520B09G10N000	SWITCH ASSY, HORN	1	Rp27.500
17	37740-35390-000 SUB: 37740B20G00N000	SWITCH ASSY, STOP LAMP	1	Rp17.000
18	09443-06083-000 SUB: 09443-06083L000	SPRING	1	Rp4.000
19	38500-09G01-000 SUB: 38500B09G01N000	HORN ASSY	1	Rp52.500
20	DISCONTINUE SUB: 01550-06123-000	BOLT	1	-
21	37146B33E00N000	KEY, BLANK	1	-	OPT
