ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.22 MAGNETOFIG.23 BATTERYFIG.24 ELECTRICALFIG.25 SPEEDOMETERFIG.26 HEADLAMPFIG.27 FRONT TURNSIGNALFIG.28 REAR COMBINATION LAMPFIG.29 WIRING HARNESS

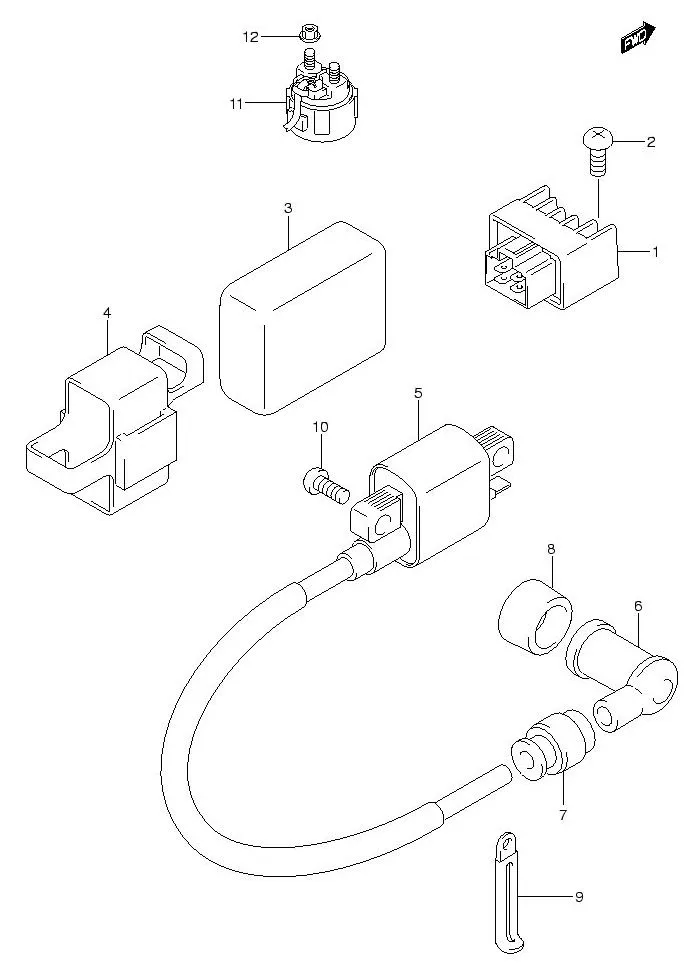

FIG.24 ELECTRICAL

FIG.24 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 32800-41H01-000
SUB: 32800B47E00N000		 RECTIFIER ASSY 1 Rp117.500
2 02112-0612A-000
SUB: 02112-06123-000		 SCREW 1 Rp3.500
3 32900-20G40-000
SUB: 32900B20G40N000		 CDI UNIT 1 Rp545.500
4 32980-20G10-000
SUB: 32980B20G10N000		 CUSHION, CDI UNIT 1 Rp12.000
5 33410-20G01-000
SUB: 33410B20G01N000		 COIL ASSY, IGNITION 1 Rp74.000
6 33510-22010AS01
SUB: 33510-35411L000		 CAP, SPARK PLUG 1 Rp39.500
7 DISCONTINUE
SUB: 33542-38B00L000		 SEAL, HIGH TENSION CORD 1 -
8 33541-38210-000 SEAL, SPARK PLUG 1 Rp11.000
9 09404-06429-000 CLAMP, HIGH TENSION (L:45) 1 Rp15.000
10 02112-0616A-000
SUB: 02112-06163-000		 SCREW, IGNITION COIL 2 Rp3.500
11 31800-31C00-000
SUB: 31800B31C00N000		 RELAY ASSY, STARTING MOTOR 1 Rp77.000
12 08316-35066-000 NUT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
