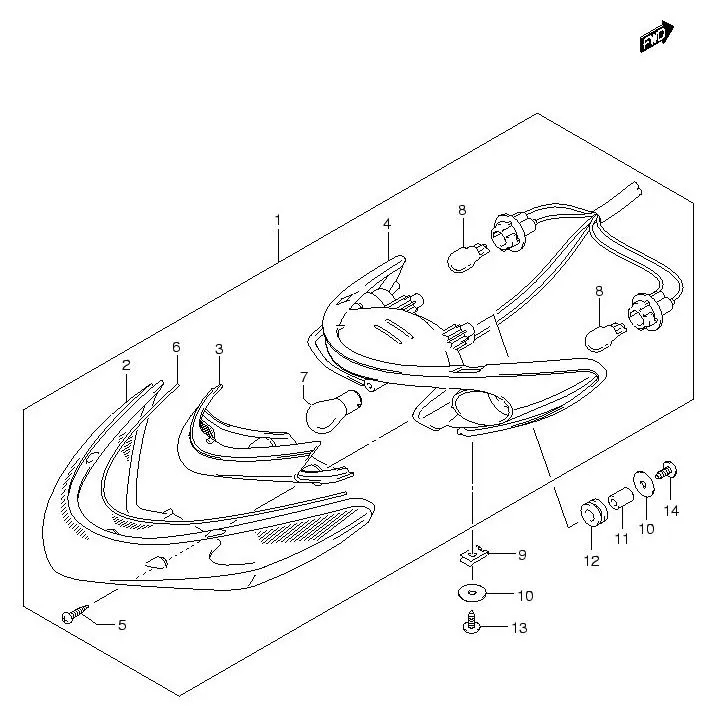

FIG.28 REAR COMBINATION LAMP

FIG.28 REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 35710B20G02N000		 LAMP ASSY, REAR COMB 1 -
2 35712-20G02-000
SUB: 35712B20G02N000		 .LENS 1 Rp33.000
3 DISCONTINUE
SUB: 35912B20G00N000		 .INNER LENS 1 -
4 DISCONTINUE
SUB: 35718B20G02N000		 .HOUSING 1 -
5 03211-04206-000 .SCREW 2 Rp3.500
6 DISCONTINUE
SUB: 35713B20G00N000		 .GASKET 1 -
7 09471-12127-000
SUB: 09471-12119-000		 .BULB (12V18/5W) 1 Rp12.500
8 09471-12114AS01
SUB: 09471-12203-000		 .BULB (12V10W) 2 Rp14.000
9 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000
10 09160-05045-000 WASHER (5.5X18X1.0) 4 Rp4.500
11 48211-09G00-000 SPACER (6.1X9X9) 2 Rp3.000
12 09320-09016-000
SUB: 09320-09016L000		 CUSHION 4 Rp4.000
13 03541-0516A-000
SUB: 03541-05163-000		 SCREW 2 Rp3.500
14 03541-0520A-000
SUB: 03541-05203-000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
