ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.22 MAGNETOFIG.23 BATTERYFIG.24 ELECTRICALFIG.25 SPEEDOMETERFIG.26 HEADLAMPFIG.27 FRONT TURNSIGNALFIG.28 REAR COMBINATION LAMPFIG.29 WIRING HARNESS

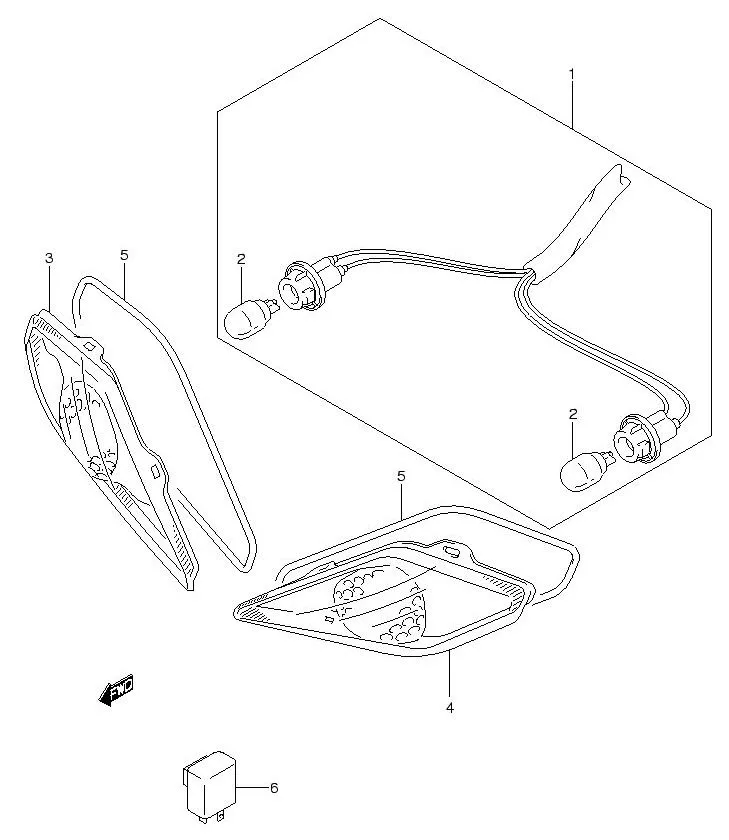

FIG.27 FRONT TURNSIGNAL

FIG.27 FRONT TURNSIGNAL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 35610B47G00N000		 SOCKET & CORD, FR TURN 1 -
2 09471-12114AS01
SUB: 09471-12203-000		 .BULB (12V10W) 2 Rp14.000
3 DISCONTINUE
SUB: 35612B47G00N000		 LENS, TURN, R 1 -
4 DISCONTINUE
SUB: 35632B47G00N000		 LENS, TURN, L 1 -
5 DISCONTINUE
SUB: 35613B47G00N000		 GASKET, TURNSIGNAL 2 -
6 38610-35491-000
SUB: 38610-35491L000		 RELAY ASSY, TURN SIGNAL 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
