ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.22 MAGNETOFIG.23 BATTERYFIG.24 ELECTRICALFIG.25 SPEEDOMETERFIG.26 HEADLAMPFIG.27 FRONT TURNSIGNALFIG.28 REAR COMBINATION LAMPFIG.29 WIRING HARNESS

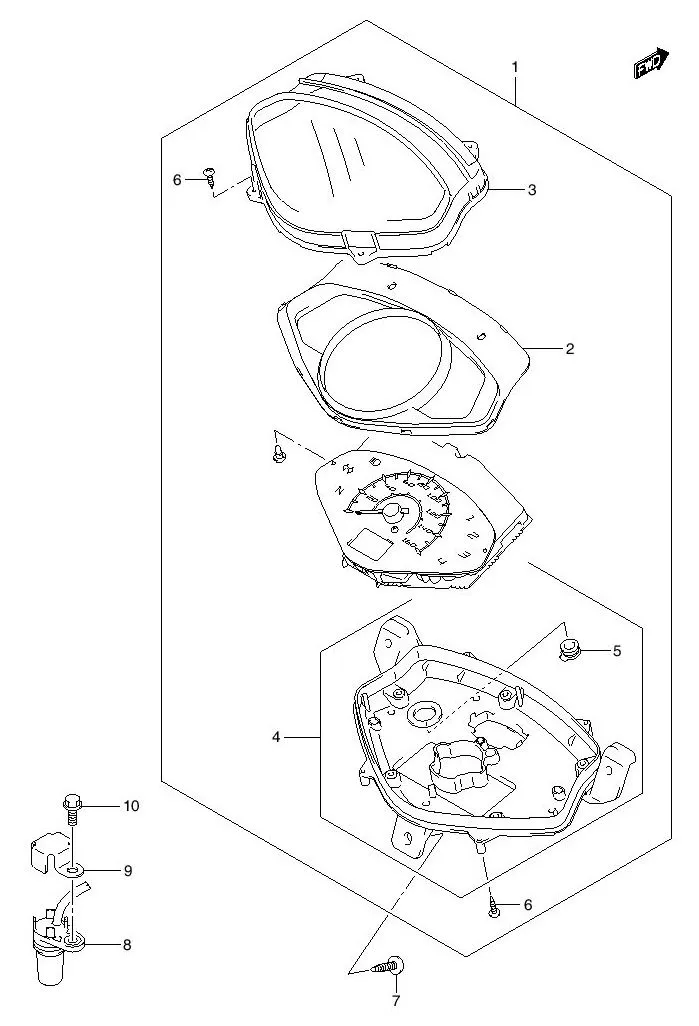

FIG.25 SPEEDOMETER

FIG.25 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 34100B47G00N000		 SPEEDOMETER ASSY 1 -
2 DISCONTINUE
SUB: 34125B47G00N000		 .REFRECTOR ASSY 1 -
3 34150-20G00-000
SUB: 34150B20G00N000		 .GLASS ASSY 1 Rp32.500
4 DISCONTINUE
SUB: 34111B47G00N000		 .LOWER CASE ASSY 1 -
5 DISCONTINUE
SUB: 34198B20G00N000		 ..GROMMET 1 -
6 34149-03G00-000 .SCREW, HEAD (3X14) 10 Rp3.500
7 03541-0520A-000
SUB: 03541-05203-000		 SCREW, SPEEDOMETER 3 Rp3.500
8 34990-20G01-000
SUB: 34990B20G01N000		 SENSOR, SPEED 1 Rp182.000
9 DISCONTINUE
SUB: 34994B20G00N000		 COVER, SPEED SENSOR 1 -
10 07130-0616A-000
SUB: 07130-06163-000		 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
