ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.22 MAGNETOFIG.23 BATTERYFIG.24 ELECTRICALFIG.25 SPEEDOMETERFIG.26 HEADLAMPFIG.27 FRONT TURNSIGNALFIG.28 REAR COMBINATION LAMPFIG.29 WIRING HARNESS

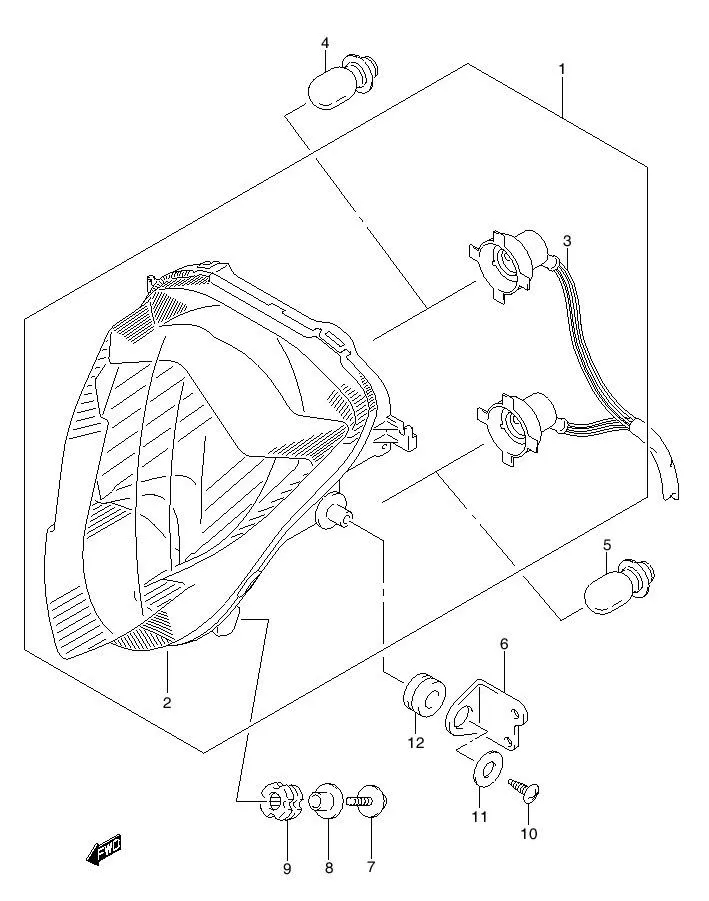

FIG.26 HEADLAMP

FIG.26 HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 35100B47G00N000		 HEADLAMP ASSY 1 -
2 35121-47G00-000
SUB: 35121B47G00N000		 .UNIT HEADLAMP 0 Rp187.500
3 35171-47G00-000
SUB: 35171B47G00N000		 .SOCKET ASSY 1 Rp37.500
4 09471-12213-000 BULB (12V32/32W) 1 Rp35.500
5 DISCONTINUE
SUB: 09471-23FA0-000		 BULB (12V18/18W) 1 -
6-1 DISCONTINUE
SUB: 35131B47G00N000		 PLATE, HEADLAMP, R 1 -
6-2 DISCONTINUE
SUB: 35132B47G00N000		 PLATE, HEADLAMP, L 1 -
7 09136-05055-000 SCREW 1 Rp20.500
8 DISCONTINUE
SUB: 09180-06319-000		 SPACER 1 -
9 09320-09010-000
SUB: 09320-09010L000		 CUSHION 1 Rp3.000
10 03541-0512A-000
SUB: 03541-05123L000		 SCREW 6 Rp3.500
11 09160-05501-000 WASHER (5.5X20X1.2) 2 Rp12.000
12 09320-10015-000
SUB: 09320-10015L000		 CUSHION 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
