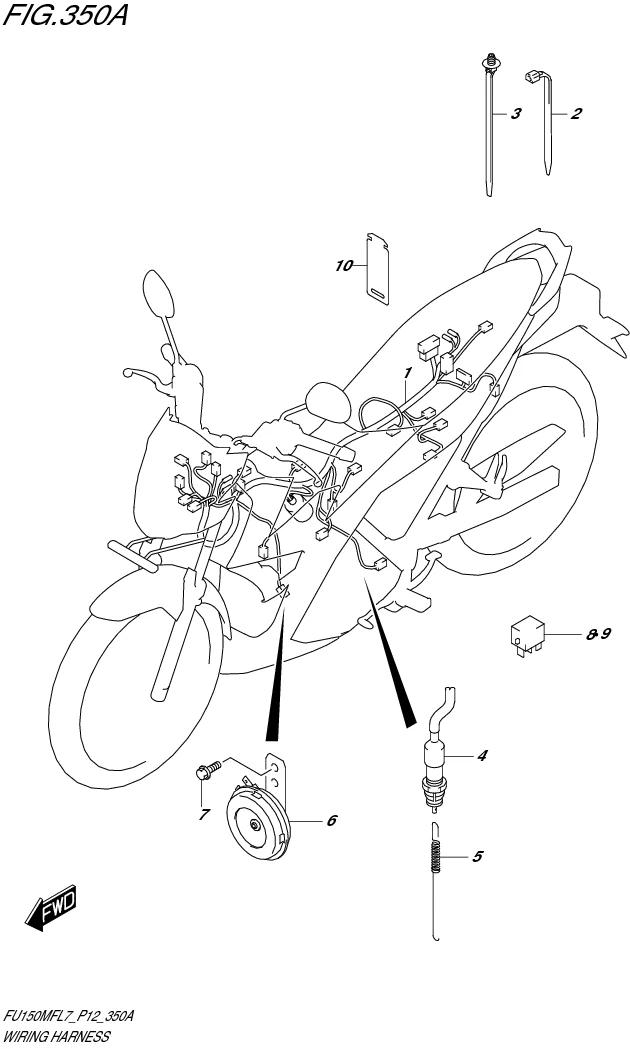

FIG. 350A WIRING HARNESS

FIG. 350A WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 36610-12K00-000 HARNESS, WIRING 1 Rp817.000
2 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 1 Rp13.000
3 09407-17403-000 CLAMP (L:154) 2 Rp3.500
4 37740-12K00-000 SWITCH ASSY, STOP LAMP 1 Rp20.000
5 09443-06090-000 SPRING 1 Rp4.500
6 38500-12K00-000 HORN ASSY 1 Rp61.000
7 01550-0612A-000 BOLT 1 Rp3.500
8 38860-33J00-000 RELAY MAIN 1 Rp35.500 MAIN
9 38860-33J00-000 RELAY FAN MOTOR 1 Rp35.500 FAN MOTOR
10 92274-12K00-000 RUBBER, CUSHION BATTERY 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
