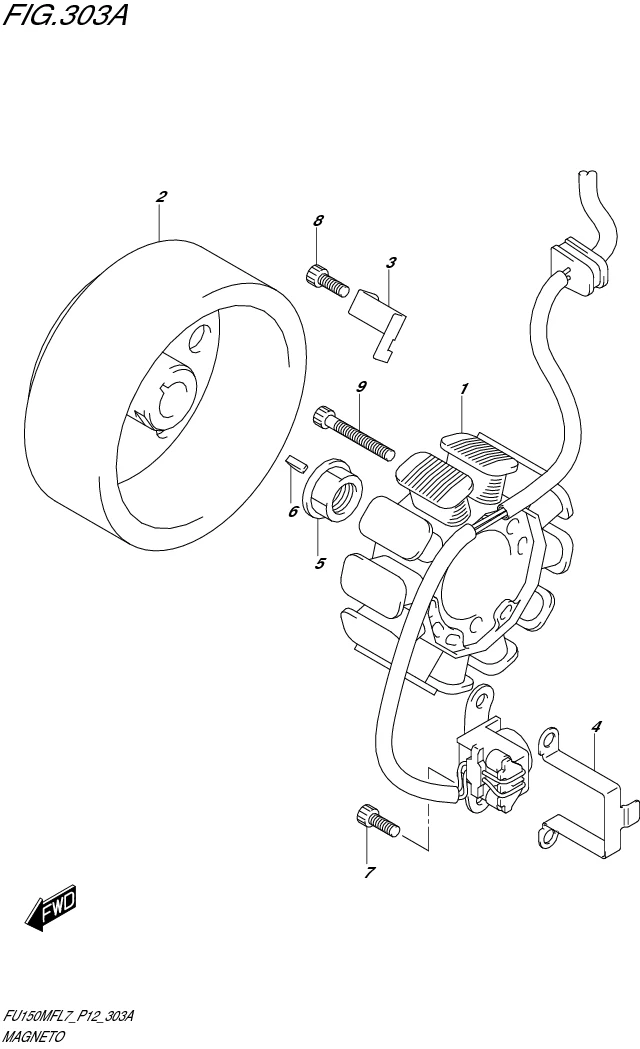

FIG. 303A MAGNETO

FIG. 303A MAGNETO

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32101-12K11-000 SUB: 32101-12K00-000	STATOR ASSY	1	Rp458.000
2	32102-12K00-000	ROTOR ASSY	1	Rp415.500
3	32371-12K00-000	CLAMP, MAGNET LEAD	1	Rp4.500
4	DISCONTINUE SUB: 32371B16H00N000	CLAMP, MAGNET LEAD	1	-
5	09159-14037-000	NUT	1	Rp6.500
6	09420-03008-000	KEY	1	Rp12.000
7	07130-0512A-000	BOLT	2	Rp4.000
8	07130-0512A-000	BOLT	1	Rp4.000
9	07130-0535A-000	BOLT	3	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
