All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 301A STARTING MOTORFIG. 303A MAGNETOFIG. 310A BATTERYFIG. 312A ELECTRICALFIG. 330A SPEEDOMETERFIG. 333A HEADLAMPFIG. 339A REAR COMBINATION LAMPFIG. 350A WIRING HARNESSFIG. 352A LOCK SETFIG. 355A HANDLE SWITCH

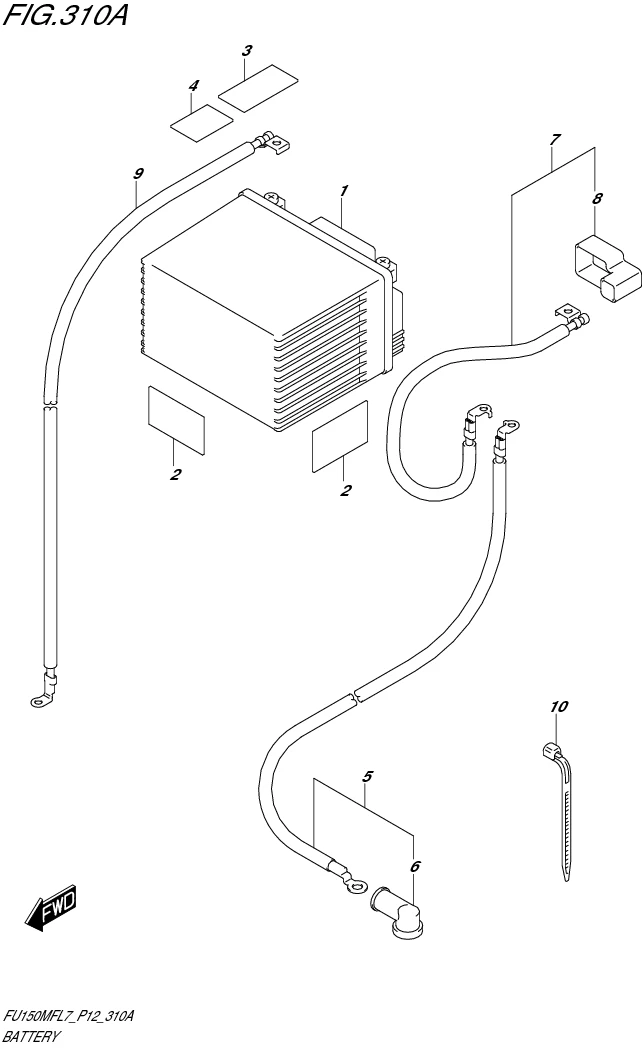

FIG. 310A BATTERY

FIG. 310A BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1-1 33610-25G30-000
SUB: 33610B25G30N000		 BATTERY (GS GTZ6V) 1 Rp602.500
1-2 DISCONTINUE
SUB: 33610-25G60-000		 BATTERY (NIPRESS NTZ6V) 1 -
2 33652-38000-000
SUB: 33652-38000L000		 PROTECTOR 5 Rp3.000
3 33652-39J00-000 PROTECTOR 2 Rp7.500
4 36652-07H00-000
SUB: 36652B07H00N000		 PROTECTOR 1 Rp4.000
5 33810-12K00-000 WIRE, STARTER MOTOR 1 Rp34.000
6 31861-48B10-000
SUB: 31861-48B10L000		 .CAP 1 Rp5.000
7 33820-12K00-000 WIRE, BATTERY PLUS 1 Rp19.000
8 33624-22J00-000
SUB: 33624B22J00N000		 .CAP 1 Rp7.000
9 33860-12K00-000 WIRE, BATTERY MINUS LEAD 1 Rp37.000
10 36990-25G20-000 CLAMP (L:165) 2 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
