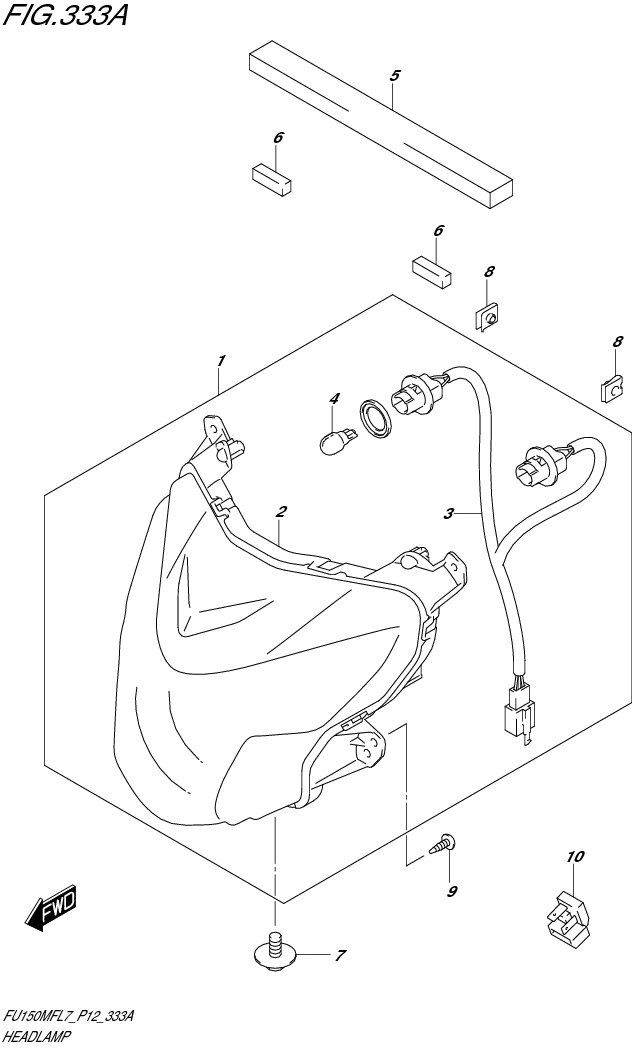

FIG. 333A HEADLAMP

FIG. 333A HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-12K01-000
SUB: 35100-12K00-000		 LAMP ASSY, FRONT COMB 1 Rp891.000
2 35121-12K01-000
SUB: 35121-12K00-000		 .HEDLAMP UNIT 1 Rp768.000
3 35171-12K00-000 .CORD & SOCKET 1 Rp78.000
4 09471-12114AS01 .BULB (12V10W) 2 Rp14.000
5 35137-12K00-000 CUSHION, HEDLAMP 1 Rp5.500
6 35137-12K10-000 CUSHION, HEDLAMP 2 Rp4.500
7 35151-12K00-000 SCREW (5X15.3) 1 Rp9.000
8 09148-06020-000 NUT 2 Rp30.500
9 03541-0516A-000 SCREW 4 Rp3.500
10 38610-23J40-000
SUB: 38610-23J10-000		 RELAY ASSY, TURNSIGHAL 1 Rp48.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
