Preview Engine Transmission Electrical Suspension Body

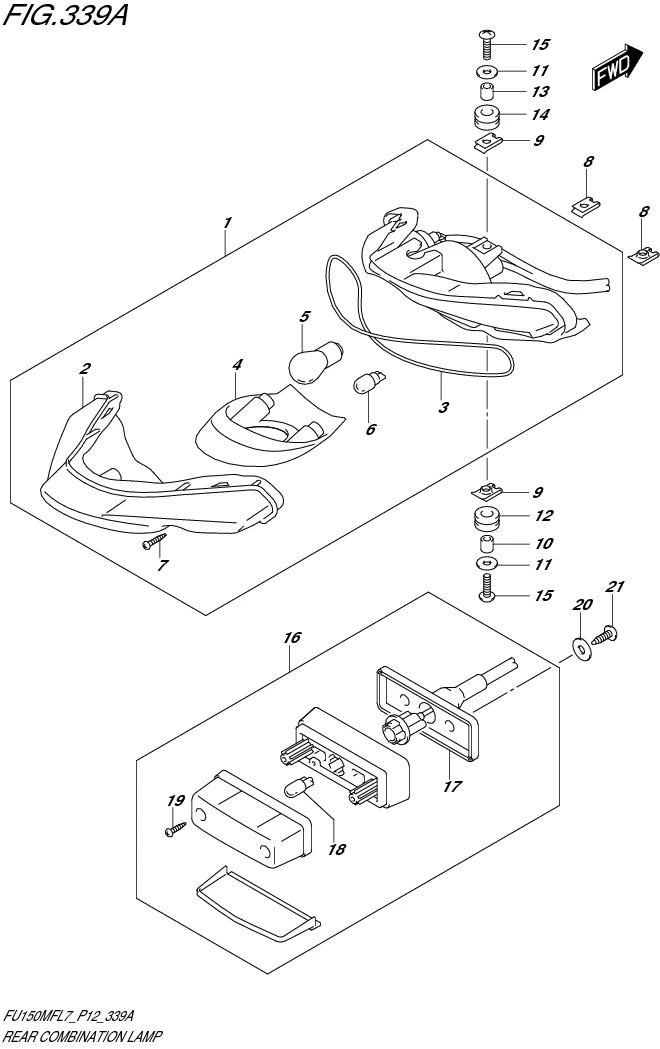

No	No. Part	Description	Qty	Price Per Pcs
1	35710-12K00-000	LAMP ASSY, REAR COMBINATION	1	Rp239.500
2	35712-12K00-000	.LENS	1	Rp39.000
3	35713-12K00-000	.GASKET	1	Rp5.000
4	35719-12K00-000	.LENS, INNER	1	Rp22.000
5	09471-12127-000 SUB: 09471-12127L000	.BULB (12V18/5W)	1	Rp12.500
6	09471-12114AS01	.BULB (12V10W)	2	Rp14.000
7	03211-0420A-000 SUB: 03211B0420AN000	.SCREW	2	Rp3.500
8	09148-05054-000 SUB: 09148B05054N000	NUT	2	Rp16.000
9	09148-05038-000 SUB: 09148B05038N000	NUT	2	Rp4.000
10	48211-09G00-000 SUB: 48211B09G00N000	SPACER (6.1X9X9)	1	Rp3.000
11	09160-05050-000 SUB: 09160B05050N000	WASHER (5.5X18X1)	2	Rp5.500
12	09320-09016-000	CUSHION	1	Rp4.000
13	09180-06310-000 SUB: 09180B06310N000	SPACER (6.5X10X10)	1	Rp5.000
14	35781-45H00-000 SUB: 35781B45H00N000	CUSHION	1	Rp3.000
15	02142-0520A-000 SUB: 02142B0520AN000	SCREW	2	Rp5.500
16	35910-16H40-000	LAMP ASSY, LICENSE	1	Rp63.500
17	35918-16H40-000	.CORD ASSY	1	Rp28.000
18	09471-12216-000	.BULB (12V5W)	1	Rp15.000
19	03211-0416B-000	.SCREW	2	Rp4.500
20	09160-05045-000	WASHER (5.5X18X1)	2	Rp4.500
21	03541-0516A-000	SCREW	2	Rp3.500
