All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 301A STARTING MOTORFIG. 303A MAGNETOFIG. 310A BATTERYFIG. 312A ELECTRICALFIG. 330A SPEEDOMETERFIG. 333A HEADLAMPFIG. 339A REAR COMBINATION LAMPFIG. 350A WIRING HARNESSFIG. 352A LOCK SETFIG. 355A HANDLE SWITCH

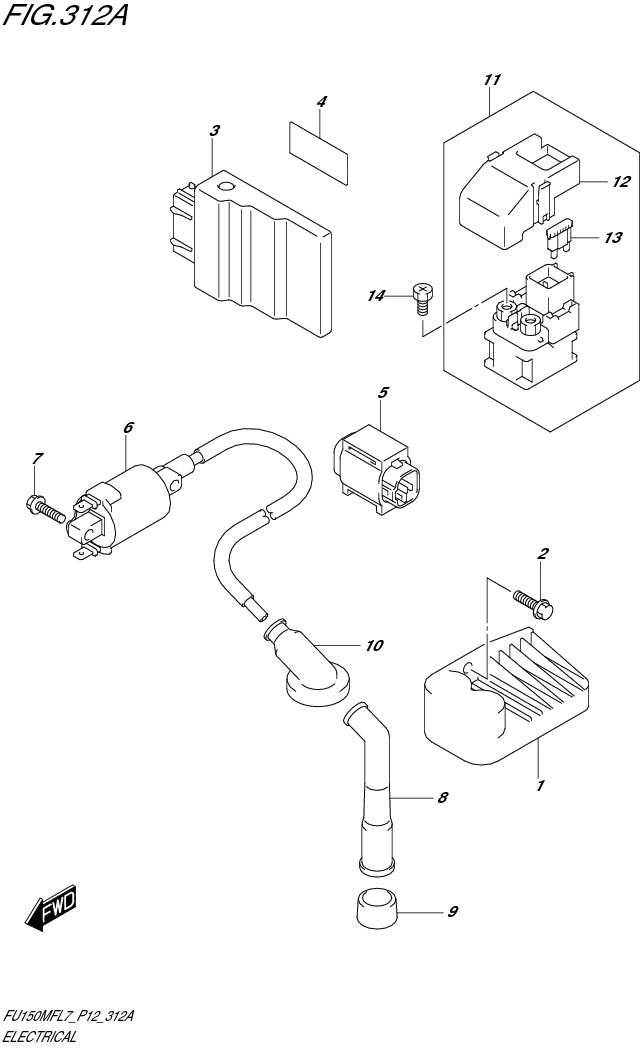

FIG. 312A ELECTRICAL

FIG. 312A ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 32800-12K00-000 RECTIFIER ASSY 1 Rp531.500
2 01547-0616A-000 BOLT 1 Rp6.500
3 32920-12K00-000 CONTROL UNIT, FI 1 Rp858.000
4 33652-38000-000
SUB: 33652-38000L000		 PROTECTOR 2 Rp3.000
5 33960-06G10-000
SUB: 33960B06G10N000		 SENSOR ASSY, FUEL CUT 1 Rp108.000
6 33410-40J10-000 COIL ASSY, IGNITION 1 Rp78.000
8 01547-0620B-000
SUB: 01547B0620AN000		 BOLT 2 Rp6.500
8 33510-25G00-000
SUB: 33510B25G00N000		 CAP, SPARK PLUG 1 Rp43.000
9 33541-25G00-000
SUB: 33541B25G00N000		 SEAL, SPARK PLUG 1 Rp9.000
10 33542-25G10-000
SUB: 33542B25G10N000		 SEAL, HIGH TENSION CORD 1 Rp17.500
11 31800-47E01-000
SUB: 31800-47E00-000		 RELAY ASSY, STARTING MOTOR 1 Rp710.000
12 31861-47E00-000
SUB: 31861B47E00N000		 .COVER 1 Rp7.000
13 09481-20102-000 .FUSE (20A) 2 Rp7.000
14 09128-06013-000
SUB: 09128B06013N000		 SCREW (6X8) 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
