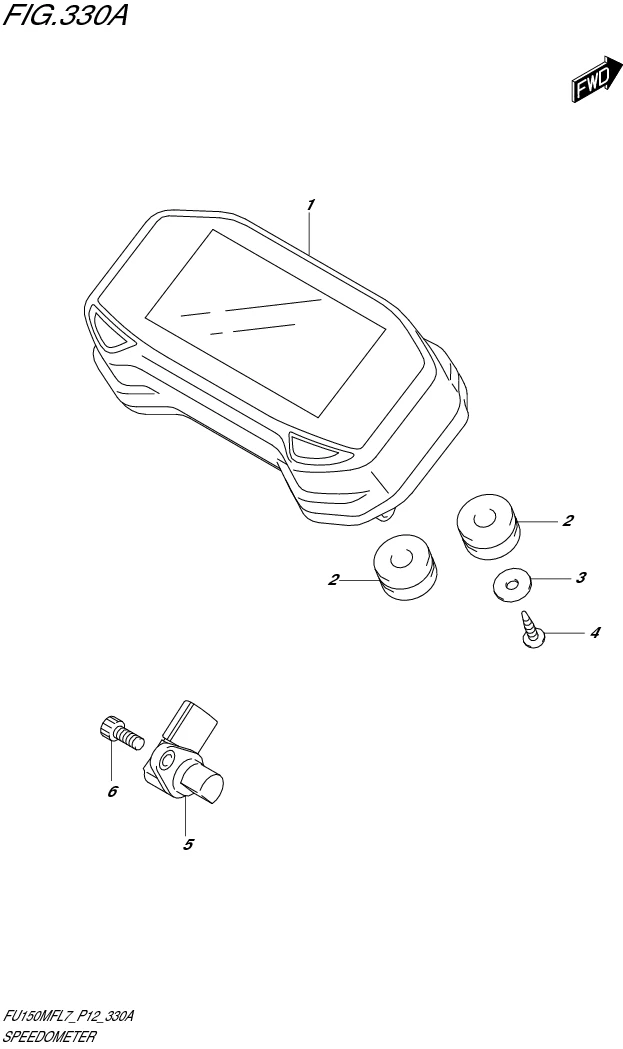

FIG. 330A SPEEDOMETER

FIG. 330A SPEEDOMETER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	34100-12K01-000 SUB: 34100-12K00-000	SPEEDOMETER	1	Rp778.000
2	34189-30H30-000	CUSHION, SPEEDOMETER	3	Rp4.500
3	09160-04026-000 SUB: 09160B04026N000	WASHER (4.5X16X1.2)	1	Rp10.500
4	03541-0416A-000	SCREW	2	Rp3.500
5	34990-12K00-000	SENSOR, SPEED	1	Rp109.500
6	07130-0512A-000 SUB: 07130B0512BN000	BOLT	1	Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
