All New Ertiga Hybrid

< KEMBALI KE THUMBNAIL 302A STARTING MOTOR304A GENERATOR (N_EASS)308A AT/CVT CONTROLLER (4AT:N_EASS)308B AT/CVT CONTROLLER (4AT:W_EASS)30AA EPI CONTROLLER BRACKET30HA BATTERY PACK (W_EASS)30JA GENERATOR BRACKET (N_EASS)30JB GENERATOR BRACKET (W_EASS)30NA EPI CONTROLLER (5MT:N_EASS)30NB EPI CONTROLLER (4AT:N_EASS)30NC EPI CONTROLLER (5MT:W_EASS)30ND EPI CONTROLLER (4AT:W_EASS)310A CRANK & CAM SENSOR311A RELAY & SWITCH (5MT:W_EASS)312A IGNITION COIL (N_EASS)312B IGNITION COIL (W_EASS)315A OIL PRESSURE SWITCH316A BACK UP LAMP SWITCH (5MT)319A ISG ASSY (W_EASS)31AA AIR BAG CONTROLLER31EA AIR BAG FORWARD SENSOR31JA BATTERY PACK BRACKET (W_EASS)31KA BRAKE STROKE SENSOR (W_EASS)320A BATTERY (N_EASS)320B BATTERY (W_EASS)321A BATTERY CABLE (5MT)321B BATTERY CABLE (4AT)324A SPEEDOMETER (5MT:W_EASS)324B SPEEDOMETER (4AT:W_EASS)324C SPEEDOMETER (5MT:N_EASS)324D SPEEDOMETER (4AT:N_EASS)330A HEADLAMP332A FOG & DRIVING LAMP (GL,GX,SS)334A TURN SIGNAL LAMP (N_EASS)335A HIGH MOUNT STOP LAMP338A ROOM LAMP (GA)338B ROOM LAMP (GL,GX,SS)33CA REAR TURN SIGNAL LAMP (N_EASS)33CB REAR TURN SIGNAL LAMP (W_EASS)33DA BACK UP LAMP33EA REAR REFLECTOR33GA HARNESS PARTS (GX)33LA AIR TEMP SENSOR (W_EASS)341A MAIN HARNESS (5MT:N_EASS:N_TUNER)341B MAIN HARNESS (5MT:N_EASS:W_TUNER)341C MAIN HARNESS (5MT:W_EASS)341D MAIN HARNESS (4AT:N_EASS)341E MAIN HARNESS (4AT:W_EASS)346A ENGINE HARNESS (5MT:W_EASS)346B ENGINE HARNESS (4AT:W_EASS)346C ENGINE HARNESS (5MT:N_EASS)346D ENGINE HARNESS (4AT:N_EASS)34DA FUEL PUMP HARNESS34EA INSTRUMENT PANEL HARNESS (GA:N_EASS)34EB INSTRUMENT PANEL HARNESS (GL:N_EASS)34EC INSTRUMENT PANEL HARNESS (GX:W_EASS)34ED INSTRUMENT PANEL HARNESS (SS:W_EASS)34JA FLOOR HARNESS (GA:N_EASS)34JB FLOOR HARNESS (GL:N_EASS)34JC FLOOR HARNESS (W_EASS)34MA BACK DOOR HARNESS (N_EASS)34MB BACK DOOR HARNESS (W_EASS)34TA DOOR HARNESS ((GX,SS):W_EASS)34TB DOOR HARNESS (GA:N_EASS)34TC DOOR HARNESS (GL:N_EASS)34VA ROOF HARNESS (N_TUNER)34VB ROOF HARNESS (W_TUNER)34XA REAR BUMPER HARNESS34YA JUNCTION BOX (N_EASS)34YB JUNCTION BOX (W_EASS)350A ELECTRICAL CONTROL BODY351A ELECTRICAL CONTROL INSTRUMENTAL PANEL358A LICENSE LAMP360A LOCK SET ((GA,GL):5MT)360B LOCK SET (GL:4AT)360C LOCK SET ((GX,SS))370A FRONT WINDOW WIPER374A WINDOW WASHER376A REAR WINDOW WIPER392A AUDIO (N__TUNER)392B AUDIO (W_TUNER)

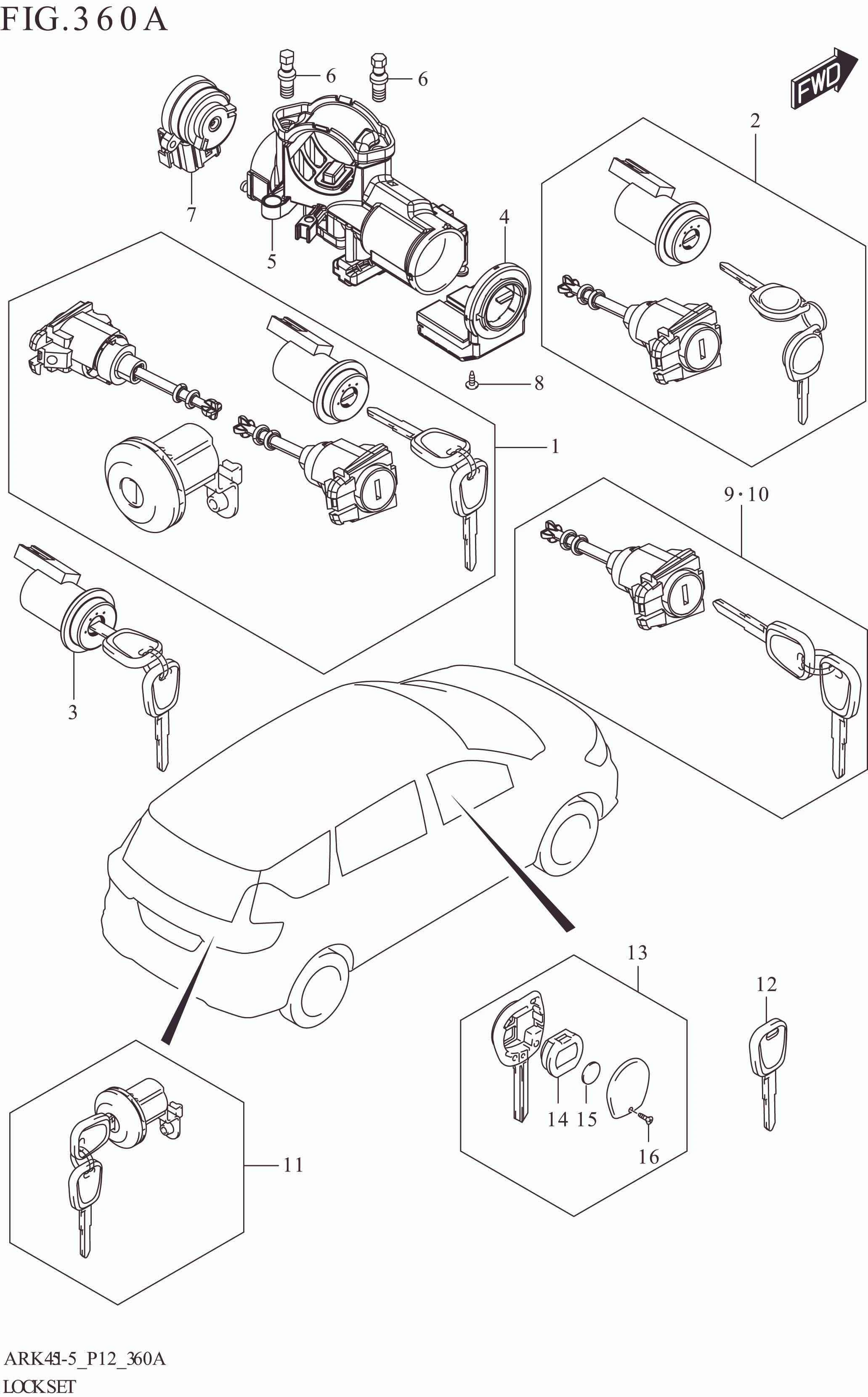

360A LOCK SET ((GA,GL):5MT)

360A LOCK SET ((GA,GL):5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 37104-73810-000 LOCK SET 1 Rp636.000 GA:5MT
2 37104-73830-000 LOCK SET 1 Rp375.000 GL:5MT
3-1 37104-73820-000 LOCK ASSY,STEERING 1 Rp378.500 GA:5MT
3-2 37104-73840-000 LOCK ASSY,STEERING 1 Rp295.500 GL:5MT
4 33970-73R00-000 CONTROLLER ASSY,IMM 1 Rp169.500 (GA,GL):5MT
5 37101-73R00-000 BODY,STEERING LOCK 1 Rp450.500 (GA,GL):5MT
6 37152-59R00-000 .BOLT, STEERING LOCK 2 Rp6.000 (GA,GL):5MT
7 37111-59R01-000 SWITCH 1 Rp118.500 (GA,GL):5MT
8 37152-59R10-000 SCREW, IMM CONT 1 Rp4.500 (GA,GL):5MT
9 82280-73860-000 CYLINDER SET,FR DR LATCH,L 1 Rp336.000 GA:5MT
10 82270-73860-000 CYLINDER SET,FR DR LATCH,R 1 Rp337.500 GA:5MT
11 82500-73810-000 CYLINDER SET,BACK DR LOCK 1 Rp336.000 GA:5MT
12 37145-73R00-000 KEY,BLANK 1 Rp228.500 GA:5MT OPT
13 37145-73R10-000 KEY,BLANK 1 Rp124.000 GL:5MT OPT
14 37182-73R00-000 SWITCH ASSY,TRANSMITTER 1 Rp158.500 GL:5MT
15 * 37185-54G10-000 .BATTERY (CR1616) 1 Rp32.000 GL:5MT
16 37186-59R00-000 SCREW 1 Rp4.500 GL:5MT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
