All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 302A STARTING MOTOR304A GENERATOR (N_EASS)308A AT/CVT CONTROLLER (4AT:N_EASS)308B AT/CVT CONTROLLER (4AT:W_EASS)30AA EPI CONTROLLER BRACKET30HA BATTERY PACK (W_EASS)30JA GENERATOR BRACKET (N_EASS)30JB GENERATOR BRACKET (W_EASS)30NA EPI CONTROLLER (5MT:N_EASS)30NB EPI CONTROLLER (4AT:N_EASS)30NC EPI CONTROLLER (5MT:W_EASS)30ND EPI CONTROLLER (4AT:W_EASS)310A CRANK & CAM SENSOR311A RELAY & SWITCH (5MT:W_EASS)312A IGNITION COIL (N_EASS)312B IGNITION COIL (W_EASS)315A OIL PRESSURE SWITCH316A BACK UP LAMP SWITCH (5MT)319A ISG ASSY (W_EASS)31AA AIR BAG CONTROLLER31EA AIR BAG FORWARD SENSOR31JA BATTERY PACK BRACKET (W_EASS)31KA BRAKE STROKE SENSOR (W_EASS)320A BATTERY (N_EASS)320B BATTERY (W_EASS)321A BATTERY CABLE (5MT)321B BATTERY CABLE (4AT)324A SPEEDOMETER (5MT:W_EASS)324B SPEEDOMETER (4AT:W_EASS)324C SPEEDOMETER (5MT:N_EASS)324D SPEEDOMETER (4AT:N_EASS)330A HEADLAMP332A FOG & DRIVING LAMP (GL,GX,SS)334A TURN SIGNAL LAMP (N_EASS)335A HIGH MOUNT STOP LAMP338A ROOM LAMP (GA)338B ROOM LAMP (GL,GX,SS)33CA REAR TURN SIGNAL LAMP (N_EASS)33CB REAR TURN SIGNAL LAMP (W_EASS)33DA BACK UP LAMP33EA REAR REFLECTOR33GA HARNESS PARTS (GX)33LA AIR TEMP SENSOR (W_EASS)341A MAIN HARNESS (5MT:N_EASS:N_TUNER)341B MAIN HARNESS (5MT:N_EASS:W_TUNER)341C MAIN HARNESS (5MT:W_EASS)341D MAIN HARNESS (4AT:N_EASS)341E MAIN HARNESS (4AT:W_EASS)346A ENGINE HARNESS (5MT:W_EASS)346B ENGINE HARNESS (4AT:W_EASS)346C ENGINE HARNESS (5MT:N_EASS)346D ENGINE HARNESS (4AT:N_EASS)34DA FUEL PUMP HARNESS34EA INSTRUMENT PANEL HARNESS (GA:N_EASS)34EB INSTRUMENT PANEL HARNESS (GL:N_EASS)34EC INSTRUMENT PANEL HARNESS (GX:W_EASS)34ED INSTRUMENT PANEL HARNESS (SS:W_EASS)34JA FLOOR HARNESS (GA:N_EASS)34JB FLOOR HARNESS (GL:N_EASS)34JC FLOOR HARNESS (W_EASS)34MA BACK DOOR HARNESS (N_EASS)34MB BACK DOOR HARNESS (W_EASS)34TA DOOR HARNESS ((GX,SS):W_EASS)34TB DOOR HARNESS (GA:N_EASS)34TC DOOR HARNESS (GL:N_EASS)34VA ROOF HARNESS (N_TUNER)34VB ROOF HARNESS (W_TUNER)34XA REAR BUMPER HARNESS34YA JUNCTION BOX (N_EASS)34YB JUNCTION BOX (W_EASS)350A ELECTRICAL CONTROL BODY351A ELECTRICAL CONTROL INSTRUMENTAL PANEL358A LICENSE LAMP360A LOCK SET ((GA,GL):5MT)360B LOCK SET (GL:4AT)360C LOCK SET ((GX,SS))370A FRONT WINDOW WIPER374A WINDOW WASHER376A REAR WINDOW WIPER392A AUDIO (N__TUNER)392B AUDIO (W_TUNER)

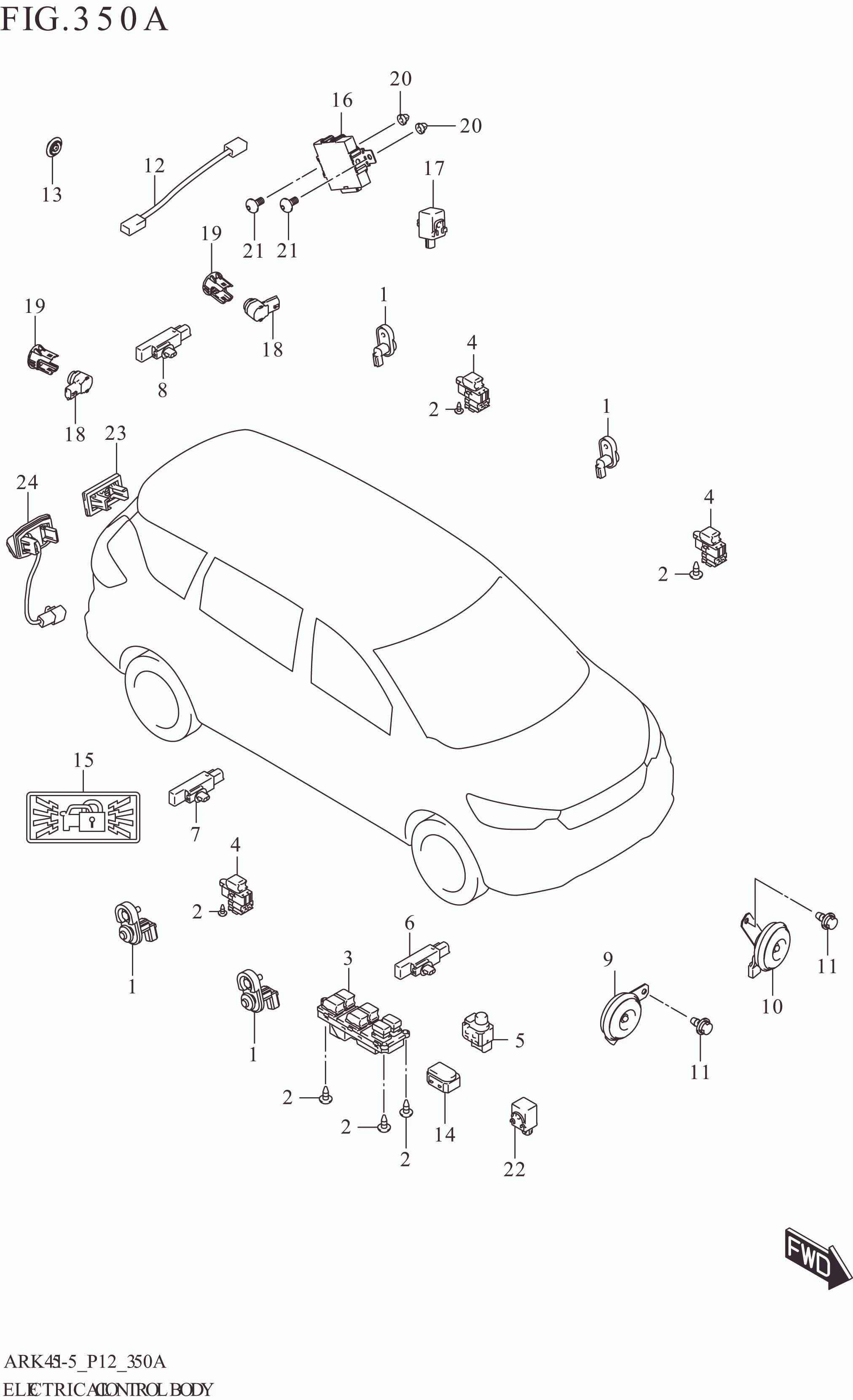

350A ELECTRICAL CONTROL BODY

350A ELECTRICAL CONTROL BODY
No No. Part Description Qty Price Per Pcs Remarks
1 37670M56R00-000 SWITCH ASSY,DOOR 4 Rp54.000
2 03541-0410A-000 SCREW 6 Rp11.000
3-1 37990-73RA1-000 SWITCH ASSY,POWER WINDOW MA 1 - UPTO 202203
3-2 37990-73RA2-000 SWITCH ASSY,POWER WINDOW MA 1 Rp601.000 FROM 202204
4 37995M79M02-000
SUB: 37995M79M01-000		 SWITCH ASSY,POWER WINDOW SUB 3 Rp109.500
5-1 37950-62J21-000 SWITCH ASSY,MIRROR 1 Rp278.500 GL
5-2 37950-62J31-000 SWITCH ASSY,MIRROR 1 Rp463.500 GX,SS
6 37175-73R00-000 ANTENNA ASSY,KLS 1 Rp65.500 GX,SS
7 37175-73R00-000 ANTENNA ASSY,KLS 1 Rp65.500 GX,SS
8 37175-73R00-000 ANTENNA ASSY,KLS 1 Rp65.500 GX,SS
9 38500-73R00-000 HORN ASSY,LOW PITCHED 1 Rp73.000
10 38500-73R10-000 HORN ASSY,HIGH PITCHED 1 Rp80.500
11 09115-08001-000 BOLT (8X18) 2 Rp21.500
12 37177M66R10-000 SWITCH ASSY,BACK DOOR KLS 1 Rp184.000 GX,SS
13 09250-16015-000 PLUG (OD:24.5) 1 Rp3.500 GA,GL
14 37285M76M00-5PK CAP,MIRROR SW HOLE (BLACK) 1 Rp33.500 GA
15 36771-79M01-000 LABEL,SECURITY ALARM 1 Rp5.000 GX,GL,SS
16 37730-73R00-000 CONTROLLER ASSY,PARK SNSR 1 Rp371.500 GX,GL,SS
17 37734M56R00-000 BUZZER,PARK SNSR 1 Rp93.500 GX,GL,SS
18-1 37735-73R00-ZQZ SENSOR ASSY,PARK (WHITE) 2 Rp192.500 GX,GL,SS BODY COLOR:ZQZ
18-7 37735-73R00-WBD SENSOR ASSY,PARK (RED) 2 Rp185.500 GX,GL,SS BODY COLOR:ZBD,ZRY,WAP,WAT,WAS,WAY
18-6 37735-73R00-WAE SENSOR ASSY,PARK (KHAKI) 2 Rp197.500 GX,GL,SS BODY COLOR:ZYZ
18-5 37735-73R00-ZLL SENSOR ASSY,PARK (RED) 2 Rp197.500 GX,GL,SS BODY COLOR:Z2S
18-4 37735-73R00-ZBD SENSOR ASSY,PARK (BLACK) 2 Rp192.500 GX,GL,SS BODY COLOR:ZBD,ZRY,WAP,WAT,WAS,WAY
18-3 37735-73R00-ZYZ SENSOR ASSY,PARK (GRAY) 2 Rp197.500 GX,GL,SS BODY COLOR:ZYZ
18-2 37735-73R00-Z2S SENSOR ASSY,PARK (SILVER) 2 Rp192.500 GX,GL,SS BODY COLOR:Z2S
19-1 37737-73R00-ZQZ BEZEL,PARK SNSR (WHITE) 2 Rp76.500 GX,GL,SS BODY COLOR:ZQZ
19-2 37737-73R00-Z2S BEZEL,PARK SNSR (SILVER) 2 Rp76.500 GX,GL,SS BODY COLOR:Z2S
19-3 37737-73R00-ZYZ BEZEL,PARK SNSR (GRAY) 2 Rp76.500 GX,GL,SS BODY COLOR:ZYZ
19-4 37737-73R00-ZBD BEZEL,PARK SNSR (BLACK) 2 Rp76.500 GX,GL,SS BODY COLOR:ZBD,ZRY,WAP,WAT,WAS,WAY
19-5 37737-73R00-ZLL BEZEL,PARK SNSR (RED) 2 Rp78.000 GX,GL,SS BODY COLOR:Z2S
19-6 37737-73R00-WAE BEZEL,PARK SNSR (KHAKI) 2 Rp78.000 GX,GL,SS BODY COLOR:ZYZ
19-7 37737-73R00-WBD BEZEL,PARK SNSR (RED) 2 Rp73.000 GX,GL,SS BODY COLOR:ZBD,ZRY,WAP,WAT,WAS,WAY
20 71851M70F00-000 NUT 2 Rp4.000 GX,GL,SS
21 03141M0612A-000 SCREW 2 Rp4.500 GX,GL,SS
22 38590-72M00-000 BUZZER ASSY,KLS 1 Rp441.500 GX,SS
23 39977M66R00-000 CAP,BACK CAMERA 1 Rp16.000 N_BKCAM
24 39970M72R00-000 CAMERA ASSY,BACK 1 Rp2.859.000 W_BKCAM

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
