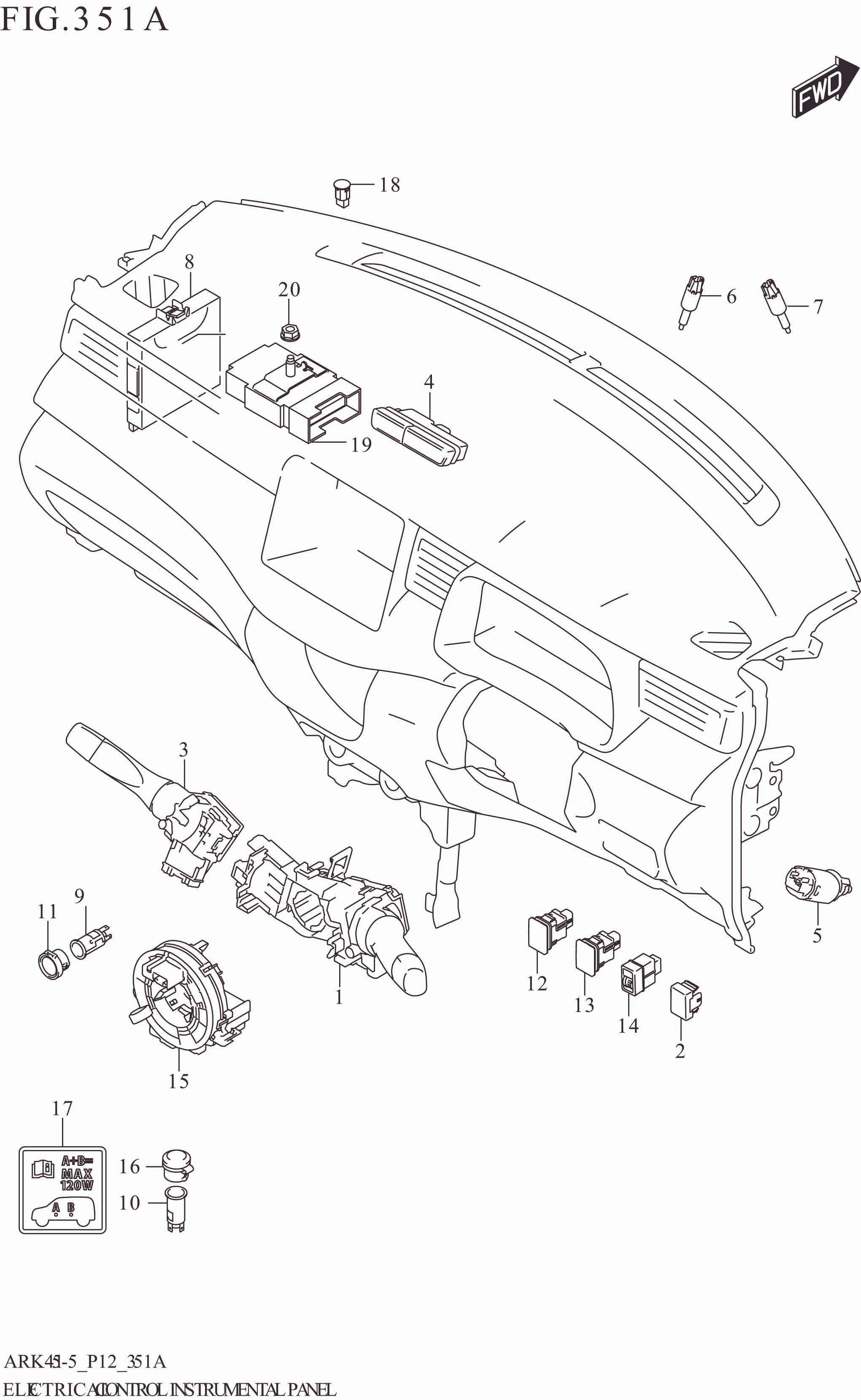

351A ELECTRICAL CONTROL INSTRUMENTAL PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	37210-73R10-000	SWITCH ASSY,LIGHTING & TURN	1	Rp213.000	GL
1-3	37210-52SB0-000	.SWITCH ASSY,LIGHTING & TURN	1	Rp888.000	GX,SS
1-1	37210-73R00-000	SWITCH ASSY,LIGHTING & TURN	1	Rp162.500	GA
2	37285M66R00-000	CAP,OPTION SW HOLE	0	Rp5.500
3-1	37310-73R10-000	SWITCH ASSY,WIPER & WASHER	1	Rp225.000	GA,GL
3-2	37310-52SB0-000	SWITCH ASSY,WIPER & WASHER	1	Rp250.500	GX,SS
4	37430M68P20-000	SWITCH ASSY,HAZARD&A/B (BLACK)	1	Rp235.500
5	37740-73R00-000	SET,STOP LAMP SW	1	Rp200.500
6	37970M74L02-000	SWITCH ASSY,CLUTCH	1	Rp165.500
7	37970M71M02-000	SWITCH ASSY,CLUTCH START	1	Rp86.500	GX,SS
8-1	36775-73R51-000 SUB: 36775-73R50-000	CONTROLLER ASSY,BODY ELEC	1	Rp1.501.000	GA
8-2	36775-86T10-000	CONTROLLER ASSY,BODY ELEC	1	Rp1.763.500	GL
8-3	36775-86TB1-000 SUB: 36775-86TB0-000	CONTROLLER ASSY,BODY ELEC	1	Rp2.289.500	GX,SS
9	39420-76F00-000	BODY,SOCKET	1	Rp103.000	GA
10	39420-76F00-000	BODY,SOCKET	2	Rp103.000	GL,GX,SS
11	39440M56R20-5PK	COVER,SOCKET (BLACK)	1	Rp18.000
12	37780M66R00-000	SWITCH ASSY,ID STOP OFF	1	Rp107.500	GX,SS
13	37775M66R00-000	SWITCH ASSY,PARK SNSR	1	Rp120.000	GL,GX,SS
14	37585M66R00-000	SWITCH ASSY,ESP OFF	1	Rp103.000	GX,SS
15-1	37410-73R00-000	SET,CONTACT COIL & SAS	1	Rp1.087.000	GA
15-2	37410-73R10-000	SET,CONTACT COIL & SAS	1	Rp1.149.000	GL
15-3	37410-52SB0-000	SET,CONTACT COIL & AUTO LIGHT	1	Rp1.168.500	GX,SS
16	39441-67L00-5PK	COVER, SOCKET (BLACK)	1	Rp16.500	GL,GX,SS
17	39442-73R10-000	LABEL,ACC SOCKET	1	Rp4.000	GL,GX,SS
18	38680-62R00-000	SENSOR ASSY,AUTO LIGHT	1	Rp639.500	GX,SS
19	3B140-86T00-000	CONTROLLER ASSY,GATEWAY	1	Rp576.500
20	08316-1006A-000	NUT (6X12)	1	Rp2.000
