All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 302A STARTING MOTOR304A GENERATOR (N_EASS)308A AT/CVT CONTROLLER (4AT:N_EASS)308B AT/CVT CONTROLLER (4AT:W_EASS)30AA EPI CONTROLLER BRACKET30HA BATTERY PACK (W_EASS)30JA GENERATOR BRACKET (N_EASS)30JB GENERATOR BRACKET (W_EASS)30NA EPI CONTROLLER (5MT:N_EASS)30NB EPI CONTROLLER (4AT:N_EASS)30NC EPI CONTROLLER (5MT:W_EASS)30ND EPI CONTROLLER (4AT:W_EASS)310A CRANK & CAM SENSOR311A RELAY & SWITCH (5MT:W_EASS)312A IGNITION COIL (N_EASS)312B IGNITION COIL (W_EASS)315A OIL PRESSURE SWITCH316A BACK UP LAMP SWITCH (5MT)319A ISG ASSY (W_EASS)31AA AIR BAG CONTROLLER31EA AIR BAG FORWARD SENSOR31JA BATTERY PACK BRACKET (W_EASS)31KA BRAKE STROKE SENSOR (W_EASS)320A BATTERY (N_EASS)320B BATTERY (W_EASS)321A BATTERY CABLE (5MT)321B BATTERY CABLE (4AT)324A SPEEDOMETER (5MT:W_EASS)324B SPEEDOMETER (4AT:W_EASS)324C SPEEDOMETER (5MT:N_EASS)324D SPEEDOMETER (4AT:N_EASS)330A HEADLAMP332A FOG & DRIVING LAMP (GL,GX,SS)334A TURN SIGNAL LAMP (N_EASS)335A HIGH MOUNT STOP LAMP338A ROOM LAMP (GA)338B ROOM LAMP (GL,GX,SS)33CA REAR TURN SIGNAL LAMP (N_EASS)33CB REAR TURN SIGNAL LAMP (W_EASS)33DA BACK UP LAMP33EA REAR REFLECTOR33GA HARNESS PARTS (GX)33LA AIR TEMP SENSOR (W_EASS)341A MAIN HARNESS (5MT:N_EASS:N_TUNER)341B MAIN HARNESS (5MT:N_EASS:W_TUNER)341C MAIN HARNESS (5MT:W_EASS)341D MAIN HARNESS (4AT:N_EASS)341E MAIN HARNESS (4AT:W_EASS)346A ENGINE HARNESS (5MT:W_EASS)346B ENGINE HARNESS (4AT:W_EASS)346C ENGINE HARNESS (5MT:N_EASS)346D ENGINE HARNESS (4AT:N_EASS)34DA FUEL PUMP HARNESS34EA INSTRUMENT PANEL HARNESS (GA:N_EASS)34EB INSTRUMENT PANEL HARNESS (GL:N_EASS)34EC INSTRUMENT PANEL HARNESS (GX:W_EASS)34ED INSTRUMENT PANEL HARNESS (SS:W_EASS)34JA FLOOR HARNESS (GA:N_EASS)34JB FLOOR HARNESS (GL:N_EASS)34JC FLOOR HARNESS (W_EASS)34MA BACK DOOR HARNESS (N_EASS)34MB BACK DOOR HARNESS (W_EASS)34TA DOOR HARNESS ((GX,SS):W_EASS)34TB DOOR HARNESS (GA:N_EASS)34TC DOOR HARNESS (GL:N_EASS)34VA ROOF HARNESS (N_TUNER)34VB ROOF HARNESS (W_TUNER)34XA REAR BUMPER HARNESS34YA JUNCTION BOX (N_EASS)34YB JUNCTION BOX (W_EASS)350A ELECTRICAL CONTROL BODY351A ELECTRICAL CONTROL INSTRUMENTAL PANEL358A LICENSE LAMP360A LOCK SET ((GA,GL):5MT)360B LOCK SET (GL:4AT)360C LOCK SET ((GX,SS))370A FRONT WINDOW WIPER374A WINDOW WASHER376A REAR WINDOW WIPER392A AUDIO (N__TUNER)392B AUDIO (W_TUNER)

304A GENERATOR (N_EASS)

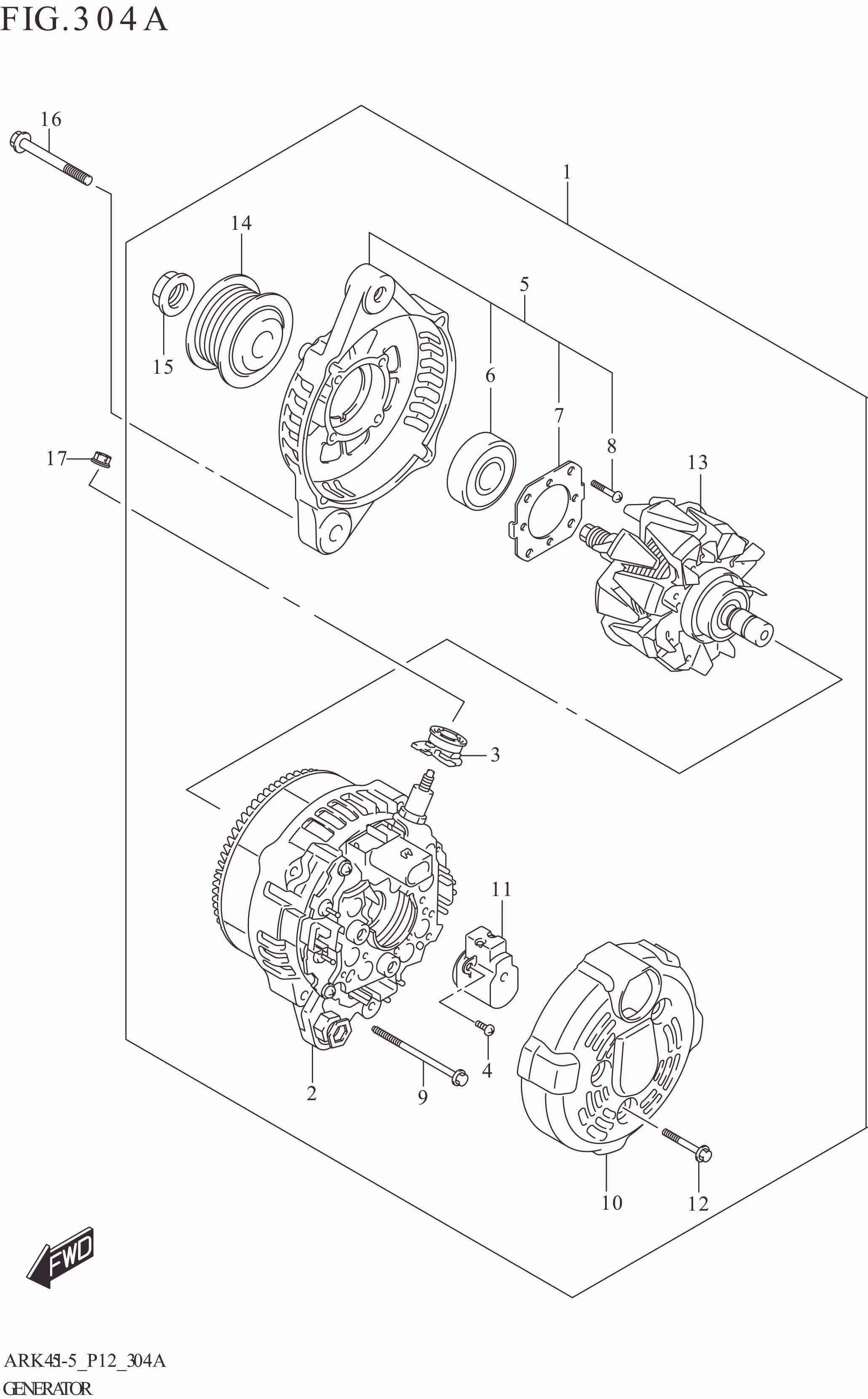

304A GENERATOR (N_EASS)
No No. Part Description Qty Price Per Pcs Remarks
1 31400-73R02-000 GENERATOR ASSY 1 Rp2.791.000
2 31401-73R01-000 .COIL ASSY,ALTERNATOR 1 Rp1.825.500
3 31514-66M10-000 .INSULATION BUSH,TERMINAL 1 Rp13.000
4 31516-85250-000 .SCREW 3 Rp22.500
5 31580-73R00-000 .FRAME ASSY,DRIVE END 1 Rp203.500
6 31582-73J01-000 ..BEARING 1 Rp119.000
7 31585-82111-000 ..RETAINER,BEARING 1 Rp20.000
8 31586-73J00-000 ..SCREW 4 Rp42.500
9 31587-72M00-000 .BOLT 4 Rp49.500
10 31614-66M10-000 .COVER,END,RR 4 Rp139.000
11 31656-61J20-000 .HOLDER ASSY,BRUSH 1 Rp87.000
12 31692-72M00-000 .BOLT 3 Rp44.500
13 31710-66M10-000 .ROTOR ASSY 1 Rp4.779.500
14 31771-72R00-000 .PULLEY 1 Rp141.000
15 31775-86510-000 .NUT 1 Rp14.000
16 01550-1085A-000 BOLT (10X85) 1 Rp7.000
17 08316-1008A-000 NUT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
