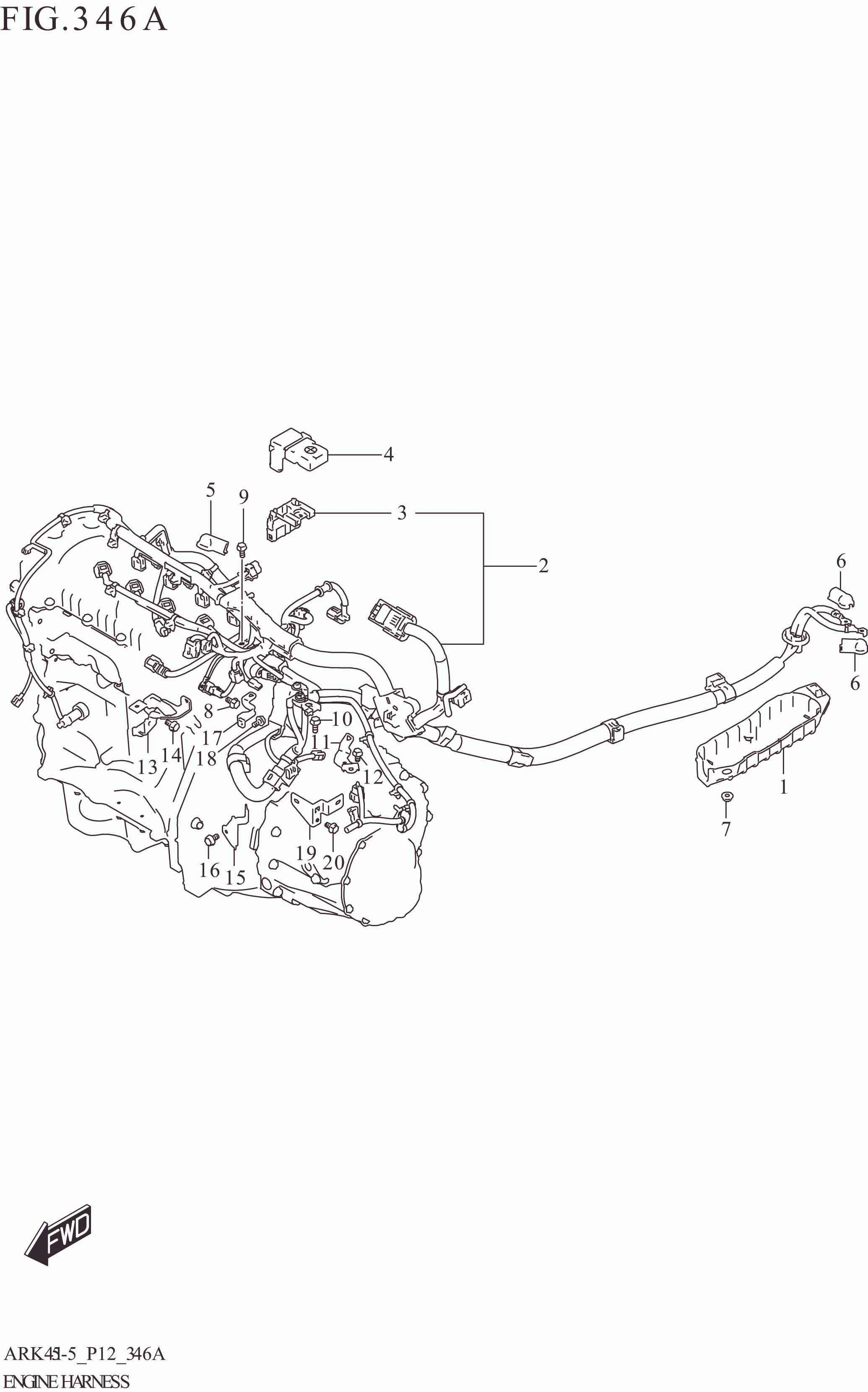

346A ENGINE HARNESS (5MT:W_EASS)

346A ENGINE HARNESS (5MT:W_EASS)
No No. Part Description Qty Price Per Pcs Remarks
1 33842-79S00-000 COVER,SUB BATTERY CABLE OUTER 1 Rp343.000
2 36650-86T00-000 HARNESS ASSY,ENG 1 Rp2.943.500
3 36739-86T00-000 .FUSE,BATTERY 1 Rp202.000
4 36694-81P10-000 COVER,BTRY TERMINAL 1 Rp94.500
5 36997M68P00-000 COVER,TERMINAL 1 Rp9.500
6 36997M68P10-000 COVER,TERMINAL 2 Rp65.000
7 09159-06076-000 NUT (M6) 1 Rp19.500
8 01550-0612A-000 BOLT (6X12) 1 Rp3.500
9 01550-0616A-000 BOLT (6X16) 1 Rp3.500
10 01550-0616A-000 BOLT (6X16) 1 Rp3.500
11 36651-72R10-000 BRACKET,ENG HARN MT 1 Rp16.000
12 01550-0612A-000 BOLT (6X12) 1 Rp3.500
13 36653M62R00-000 BRACKET,ENG HARN PROTECTOR 1 Rp40.000
14 01550-0612A-000 BOLT (6X12) 1 Rp3.500
15 36651M68P00-000 BRACKET,ENG HARN MT 1 Rp9.500
16 01550-0612A-000 BOLT (6X12) 1 Rp3.500
17 36653M68P80-000 BRACKET,ENG HARN 1 Rp8.500
18 01550-0612A-000 BOLT (6X12) 1 Rp3.500
19 36651M61MB0-000 BRACKET,ENG HARN 1 Rp12.500
20 01550-0612A-000 BOLT (6X12) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
