  3. All New Ertiga Hybrid
  4. Electrical
  5. 330A HEADLAMP

All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 302A STARTING MOTOR304A GENERATOR (N_EASS)308A AT/CVT CONTROLLER (4AT:N_EASS)308B AT/CVT CONTROLLER (4AT:W_EASS)30AA EPI CONTROLLER BRACKET30HA BATTERY PACK (W_EASS)30JA GENERATOR BRACKET (N_EASS)30JB GENERATOR BRACKET (W_EASS)30NA EPI CONTROLLER (5MT:N_EASS)30NB EPI CONTROLLER (4AT:N_EASS)30NC EPI CONTROLLER (5MT:W_EASS)30ND EPI CONTROLLER (4AT:W_EASS)310A CRANK & CAM SENSOR311A RELAY & SWITCH (5MT:W_EASS)312A IGNITION COIL (N_EASS)312B IGNITION COIL (W_EASS)315A OIL PRESSURE SWITCH316A BACK UP LAMP SWITCH (5MT)319A ISG ASSY (W_EASS)31AA AIR BAG CONTROLLER31EA AIR BAG FORWARD SENSOR31JA BATTERY PACK BRACKET (W_EASS)31KA BRAKE STROKE SENSOR (W_EASS)320A BATTERY (N_EASS)320B BATTERY (W_EASS)321A BATTERY CABLE (5MT)321B BATTERY CABLE (4AT)324A SPEEDOMETER (5MT:W_EASS)324B SPEEDOMETER (4AT:W_EASS)324C SPEEDOMETER (5MT:N_EASS)324D SPEEDOMETER (4AT:N_EASS)330A HEADLAMP332A FOG & DRIVING LAMP (GL,GX,SS)334A TURN SIGNAL LAMP (N_EASS)335A HIGH MOUNT STOP LAMP338A ROOM LAMP (GA)338B ROOM LAMP (GL,GX,SS)33CA REAR TURN SIGNAL LAMP (N_EASS)33CB REAR TURN SIGNAL LAMP (W_EASS)33DA BACK UP LAMP33EA REAR REFLECTOR33GA HARNESS PARTS (GX)33LA AIR TEMP SENSOR (W_EASS)341A MAIN HARNESS (5MT:N_EASS:N_TUNER)341B MAIN HARNESS (5MT:N_EASS:W_TUNER)341C MAIN HARNESS (5MT:W_EASS)341D MAIN HARNESS (4AT:N_EASS)341E MAIN HARNESS (4AT:W_EASS)346A ENGINE HARNESS (5MT:W_EASS)346B ENGINE HARNESS (4AT:W_EASS)346C ENGINE HARNESS (5MT:N_EASS)346D ENGINE HARNESS (4AT:N_EASS)34DA FUEL PUMP HARNESS34EA INSTRUMENT PANEL HARNESS (GA:N_EASS)34EB INSTRUMENT PANEL HARNESS (GL:N_EASS)34EC INSTRUMENT PANEL HARNESS (GX:W_EASS)34ED INSTRUMENT PANEL HARNESS (SS:W_EASS)34JA FLOOR HARNESS (GA:N_EASS)34JB FLOOR HARNESS (GL:N_EASS)34JC FLOOR HARNESS (W_EASS)34MA BACK DOOR HARNESS (N_EASS)34MB BACK DOOR HARNESS (W_EASS)34TA DOOR HARNESS ((GX,SS):W_EASS)34TB DOOR HARNESS (GA:N_EASS)34TC DOOR HARNESS (GL:N_EASS)34VA ROOF HARNESS (N_TUNER)34VB ROOF HARNESS (W_TUNER)34XA REAR BUMPER HARNESS34YA JUNCTION BOX (N_EASS)34YB JUNCTION BOX (W_EASS)350A ELECTRICAL CONTROL BODY351A ELECTRICAL CONTROL INSTRUMENTAL PANEL358A LICENSE LAMP360A LOCK SET ((GA,GL):5MT)360B LOCK SET (GL:4AT)360C LOCK SET ((GX,SS))370A FRONT WINDOW WIPER374A WINDOW WASHER376A REAR WINDOW WIPER392A AUDIO (N__TUNER)392B AUDIO (W_TUNER)

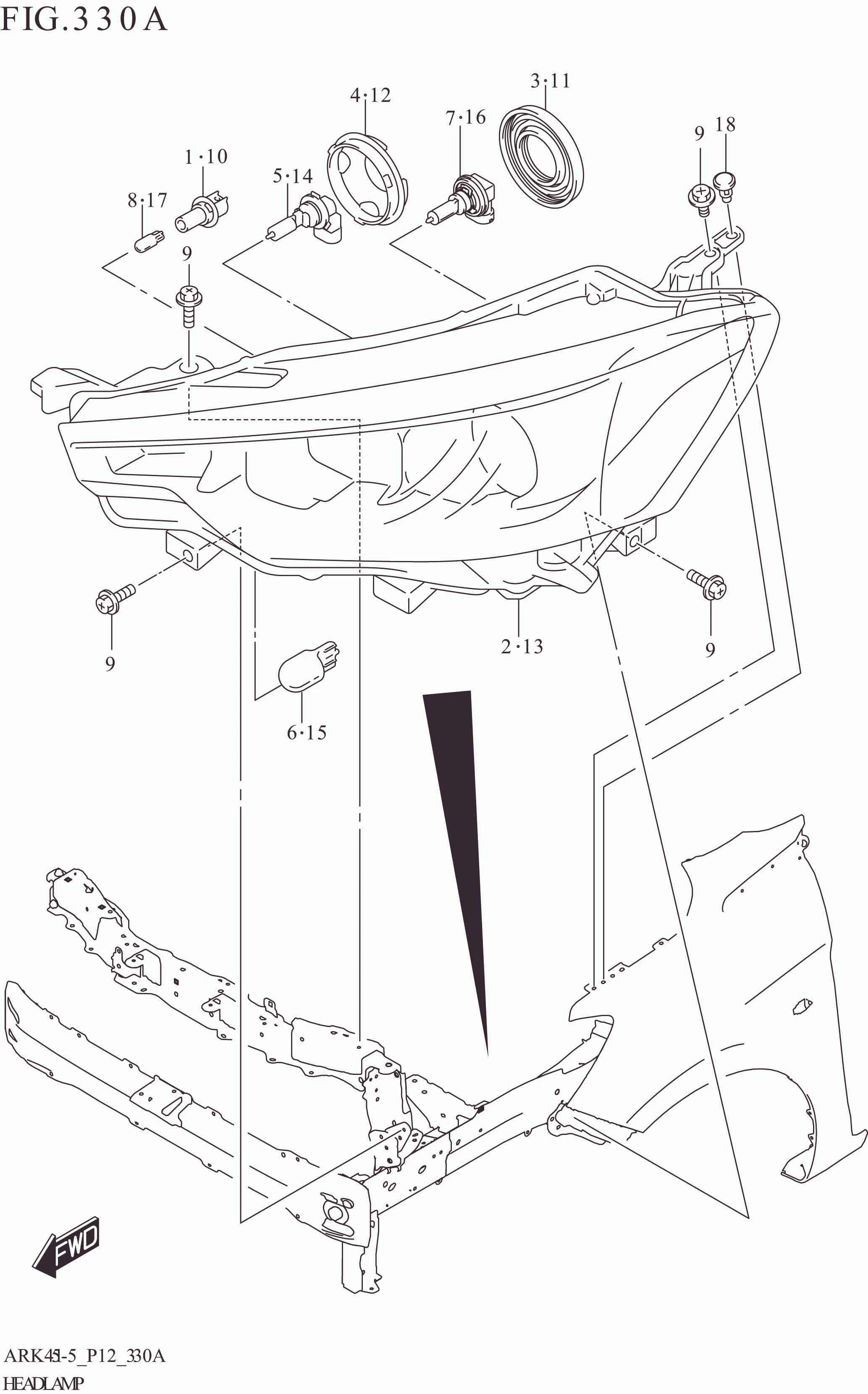

330A HEADLAMP

330A HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35118-81P00-000 SOCKET,POSITION LAMP 1 Rp53.500
2 35120-73R10-000 UNIT,HEADLAMP,R 1 Rp1.100.500
3 35179-76F10-000 COVER,SOCKET 1 Rp69.500
4 35267-79P00-000 COVER 1 Rp159.000
5 * 09471-12151-000 BULB (12V60W,HB3,#9005) 1 Rp471.000
6 09471-12202-000 BULB (12V21W) 1 Rp78.000
7 09471-12210-000 BULB (12V55W/H11) 1 Rp303.000
8 09471-12216-000 BULB (12V5W) 1 Rp15.000
9 35181-71L00-000 SCREW (6X16) 8 Rp22.500
10 35118-81P00-000 SOCKET,POSITION LAMP 1 Rp53.500
11 35179-76F10-000 COVER,SOCKET 1 Rp69.500
12 35267-79P00-000 COVER 1 Rp159.000
13 35320-73R10-000 UNIT,HEADLAMP,L 1 Rp1.153.500
14 * 09471-12151-000 BULB (12V60W,HB3,#9005) 1 Rp471.000
15 09471-12202-000 BULB (12V21W) 1 Rp78.000
16 09471-12210-000 BULB (12V55W/H11) 1 Rp303.000
17 09471-12216-000 BULB (12V5W) 1 Rp15.000
18 09409-08010-000 CLIP 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
