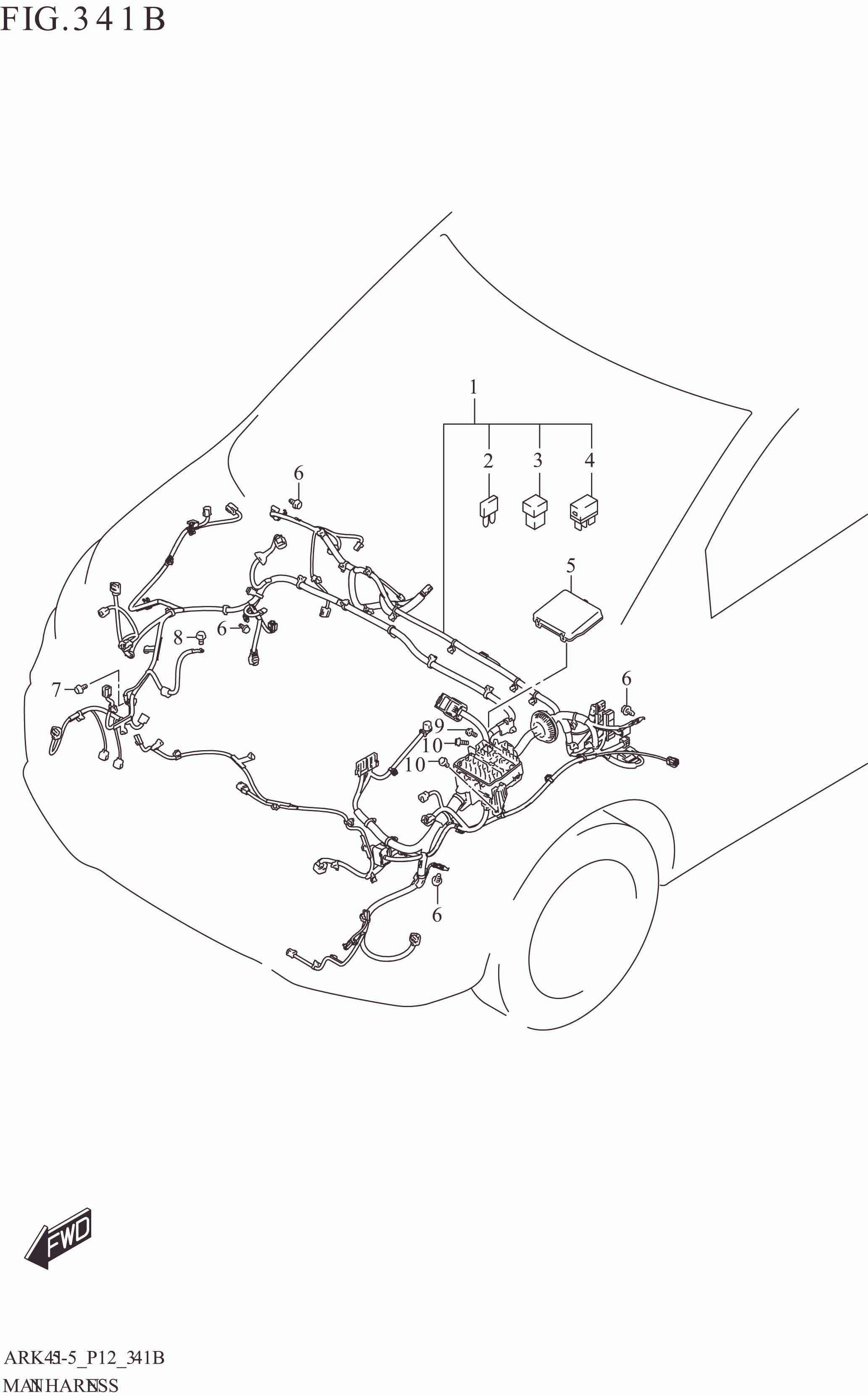

341B MAIN HARNESS (5MT:N_EASS:W_TUNER)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36610-86T10-000	HARNESS ASSY,MAIN	1	Rp2.953.000
2-1	09481-05501-000	.FUSE (5A)	0	Rp17.000
2-2	09481-10504-000	.FUSE (10A)	0	Rp12.500
2-3	09481-15504-000	.FUSE (15A)	0	Rp13.000
2-4	09481-20504-000	.FUSE (20A)	0	Rp14.500
2-5	09481-25504-000	.FUSE (25A)	0	Rp17.500
2-6	09481-30504-000	.FUSE (30A)	0	Rp15.000
3-1	09481-30403-000	.FUSE (30A)	0	Rp41.000
3-2	09481-40403-000	.FUSE (40A)	0	Rp51.500
3-3	09481-50403-000	.FUSE (50A)	0	Rp51.000
4-3	38860-77M00-000	.RELAY ASSY	2	Rp45.000	HEAD LAMP
4-8	38860-77M00-000	.RELAY ASSY	1	Rp45.000	A/C
4-7	38860-77M00-000	.RELAY ASSY	1	Rp45.000	FUEL PUMP
4-6	38860-77M00-000	.RELAY ASSY	1	Rp45.000	MAIN
4-5	38860-77M00-000	.RELAY ASSY	1	Rp45.000	HORN
4-4	38860-77M00-000	.RELAY ASSY	1	Rp45.000	ST
4-2	38860-77M00-000	.RELAY ASSY	1	Rp45.000	HTR
4-1	38860-77M00-000	.RELAY ASSY	3	Rp45.000	RDTR
5	36717-86T00-000	COVER,RELAY BOX	1	Rp64.000
6	09115-06005-000	BOLT (6X16)	4	Rp14.000
7	09115-06005-000	BOLT (6X16)	1	Rp14.000
8	01550-0612A-000	BOLT (6X12)	1	Rp3.500
9	01551-0616C-000	BOLT (6X16)	1	Rp14.500
10	01551-0616C-000	BOLT (6X16)	2	Rp14.500
