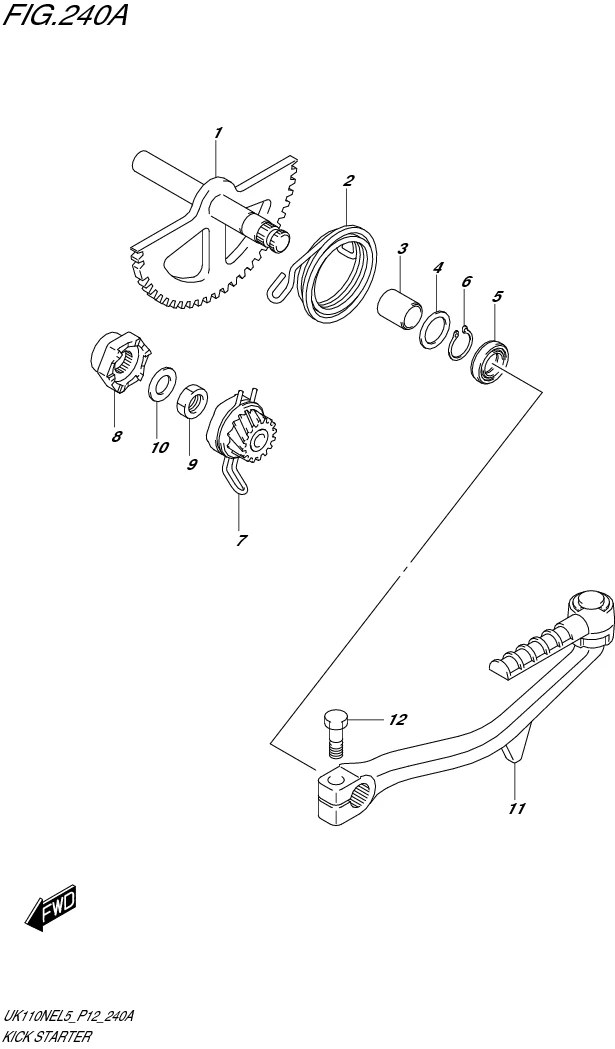

FIG. 240A KICK STARTER

FIG. 240A KICK STARTER
No No. Part Description Qty Price Per Pcs Remarks
1 26210-09J10-000 SHAFT, KICK STARTER (NT:56) 1 Rp118.000
2 26212-46G20-000
SUB: 26212-46G00-000		 SPRING, KICK STARTER SHAFT 1 Rp13.000
3 26213-09J00-000 BUSH, KICK SHAFT 1 Rp5.500
4 09160-14053-000 WASHER (14.5X22X0.8) 1 Rp5.500
5 09283-14016-000 SEAL 1 Rp13.000
6 08331-3114A-000 CIRCLIP 1 Rp12.500
7 26200-09J10-000 GEAR ASSY,KICK STR DRIVEN (NT:9) 1 Rp101.500
8 26231-39J00-000 STARTER, KICK, RH 1 Rp42.500
9 09140-12037-000 NUT 1 Rp8.500
10 09164-12020-000 WASHER (12.2X22X1.2) 1 Rp9.500
11 26300-40J00-000 LEVER ASSY, KICK STARTER 1 Rp68.000
12 26314-33G20-000 BOLT, KICK STARTER LEVER 1 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
