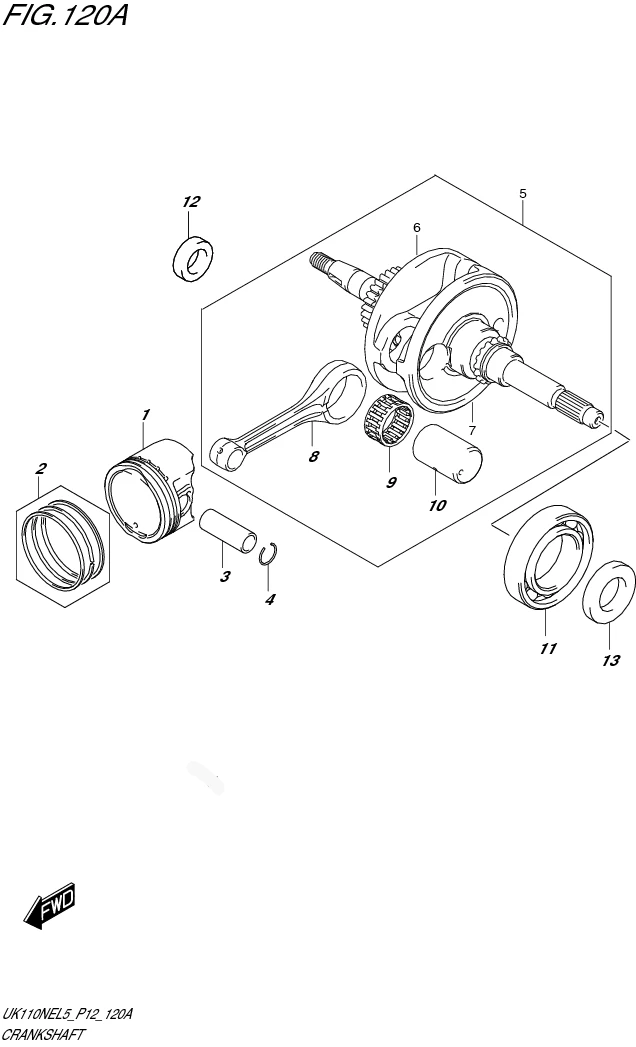

FIG. 120A CRANKSHAFT

FIG. 120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12111-40J00-0F0
SUB: 12111-09J10-0F0		 PISTON 1 Rp90.000
2 12140-22J00-0F0
SUB: 12140-22J00-000		 RING SET, PISTON 1 Rp43.000
3 12151-09J10-000 PIN, PISTON 1 Rp7.500
4 09381-13001-000 SNAP RING 2 Rp3.000
5 12200-09JF0-000
SUB: 12200-09JB0-000		 CRANKSHAFT ASSY 1 Rp778.000
6 12220-09JB0-000
SUB: 12220-09JA0-000		 .CRANKSHAFT COMP,R 1 Rp229.000
7 12261-09JB0-000
SUB: 12261-09JA0-000		 .CRANKSHAFT,L 1 Rp226.000
8 12161-09J02-0B0 .CONNROD 1 Rp98.500
9 09263-25070-0B0 .BEARING 1 Rp35.000
10 12211-09J02-0B0 .PIN,CRANK 1 Rp31.500
11 09262-35L10-000 BEARING (35X62X14) 1 Rp57.500 LH
12 09283-16010-000 SEAL, CRANKSHAFT OIL 1 Rp17.500 RH
13 09283-22035-000 SEAL, CRANKSHAFT OIL 1 Rp16.500 LH

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
