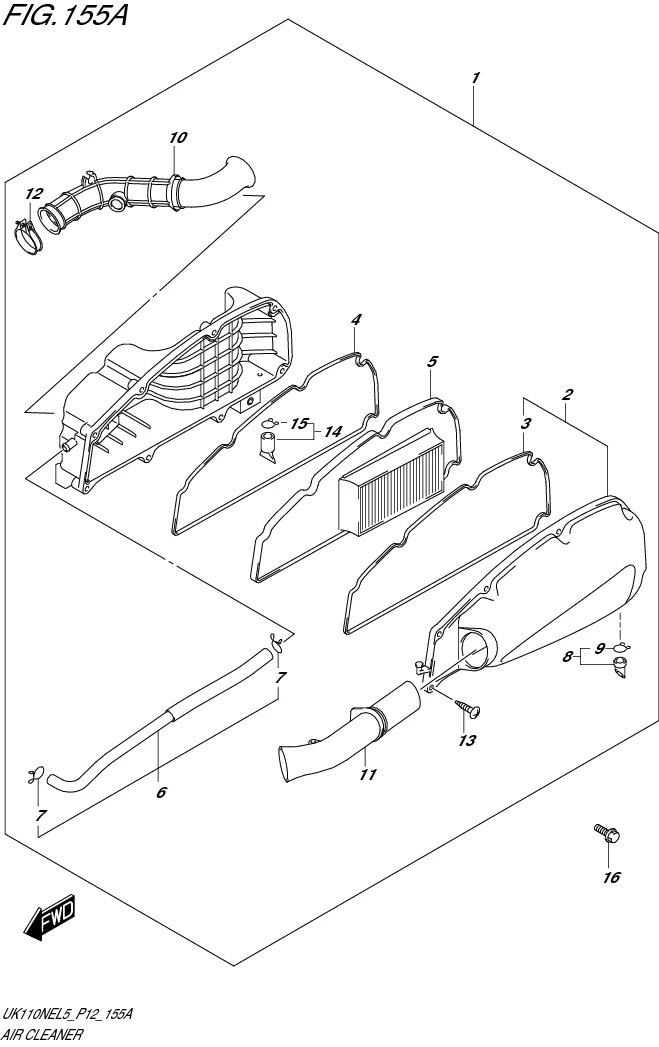

FIG. 155A AIR CLEANER

FIG. 155A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13071-40J00-000
SUB: 13700-40JA0-000		 CLEANER ASSY, AIR 1 Rp302.000
2 13740-40JA0-000 .CAP, AIR CLEANER 1 Rp103.500
3 13746-40JA0-000 ..GASKET 1 Rp44.500
4 13746-40JA0-000 .GASKET 1 Rp44.500
5 13780-40JA0-000 .FILTER ASSY, AIR CLEANER 1 Rp148.000
6 13850-40JA0-000 .TUBE, BREATHER 1 Rp95.500
7 13872-40JC0-000 ..CLIP 2 Rp10.500
8 13870-40JB0-000 .TUBE, COMP DRAIN 1 Rp21.500
9 13872-40JB0-000 ..CLIP 1 Rp11.500
10 13881-40JA1-000
SUB: 13881-40JA0-000		 .TUBE, OUTLET 1 Rp91.500
11 13891-40JA0-000 .TUBE, INLET 1 Rp99.500
12 09402-36208-000 .CLAMP 1 Rp31.500
13 03541-0525A-000 .SCREW 8 Rp3.500
14 13870-40JA0-000 .PLUG, COMP DRAIN 1 Rp13.000
15 13872-40JA0-000 ..CLIP 1 Rp12.500
16 01550-0620A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
