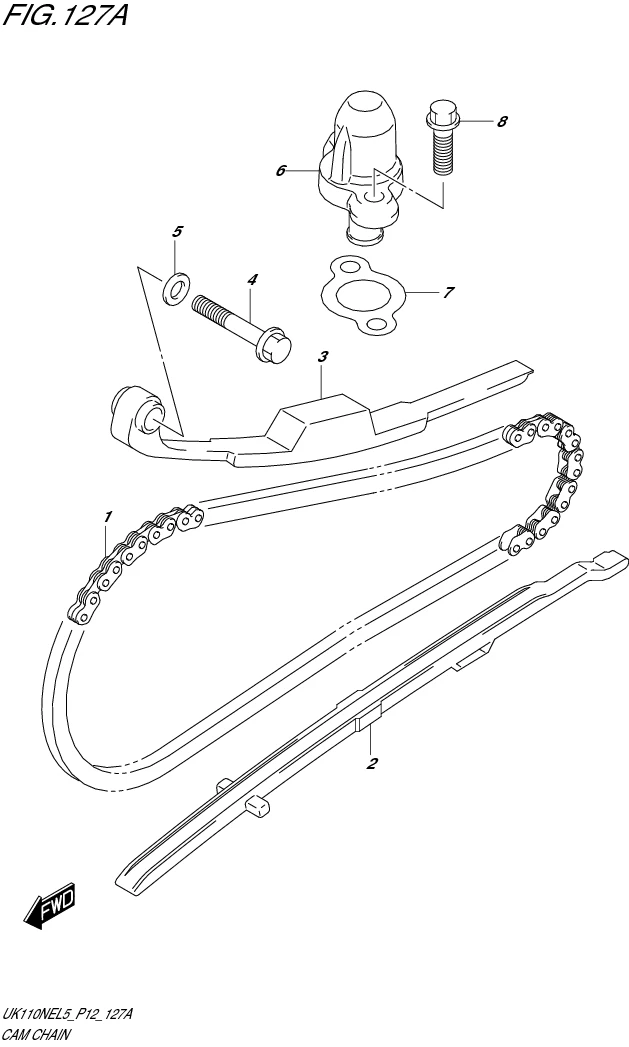

FIG. 127A CAM CHAIN

FIG. 127A CAM CHAIN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12760-22J00-000	CHAIN, CAMSHAFT DRIVE	1	Rp74.000
2	12771-40J00-000	GUIDE, CAM CHAIN	1	Rp9.500
3	12811-22J01-000 SUB: 12811-22J00-000	TENSIONER, CAM CHAIN	1	Rp57.500
4	09103-06247-000	BOLT (6X32)	1	Rp4.000
5	09168-06004-000	GASKET (6.2X11X1.2)	1	Rp2.500
6	12830-09J00-000	ADJUSTER ASSY, TENSIONER	1	Rp96.000
7	12837-46G10-000	GASKET, TENSIONER ADJUSTER(NA)	1	Rp4.000
8	01547-0620B-000 SUB: 01547-0620A-000	BOLT	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
