Preview Engine Transmission Electrical Suspension Body

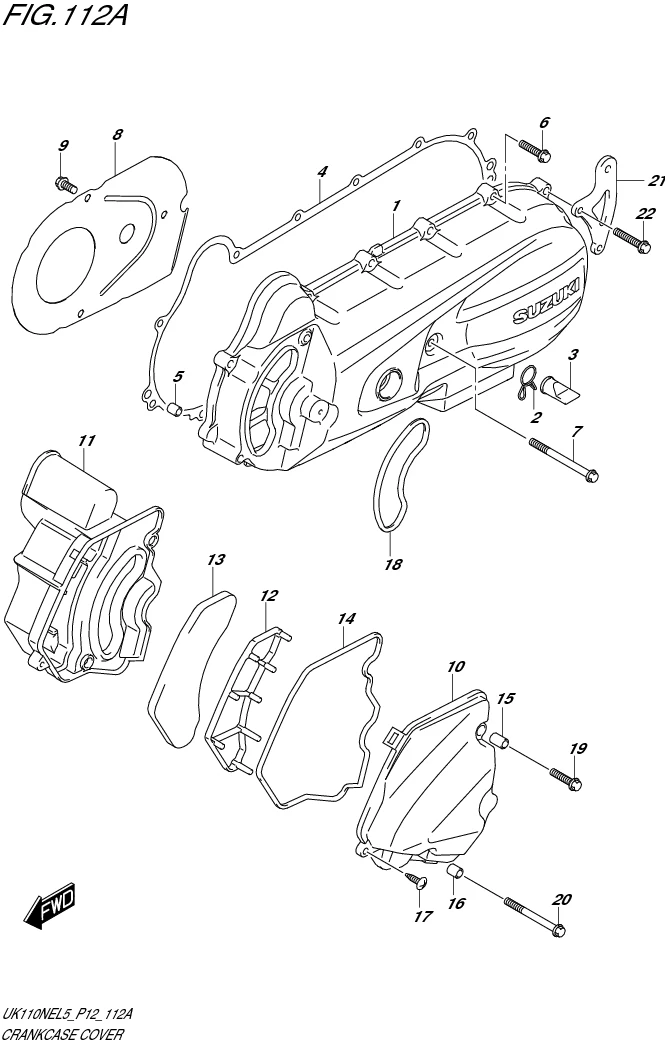

No	No. Part	Description	Qty	Price Per Pcs
1	11340-09J00-000	COVER, CLUTCH	1	Rp533.000
2	11344-13H00-000	CLIP	1	Rp3.000
3	11345-13H10-000	PLUG, WATER DRAIN	1	Rp4.500
4	11482-09J00-000	GASKET, CLUTCH COVER(NA)	1	Rp20.500
5	09206-08008-000	PIN (6.3X8X12)	2	Rp4.000
6	01547-0625A-000	BOLT	10	Rp6.500
7	01547-0670A-000	BOLT	1	Rp7.500
8	11346-09J00-000	PLATE, CLUTCH COVER AIR INTAKE	1	Rp19.000
9	01547-0610A-000 SUB: 01547-0612A-000	BOLT	3	Rp3.000
10	11381-09J00-000	DUCT, BELT COOLING NO.1	1	Rp23.000
11	11382-09J00-000	DUCT, BELT COOLING NO.2	1	Rp17.500
12	11383-09J00-000	PLATE, BELT COOLING DUCT	1	Rp6.500
13	11384-09J00-000	FILTER, BELT COOLING	1	Rp20.500
14	11386-09J00-000	GASKET, BELT COOLING DUCT NO.2	1	Rp4.000
16	09180-06268-000	SPACER (6.5X9X13.5)	1	Rp13.000
16	09180-06307-000	SPACER (6.5X9X10)	1	Rp5.000
17	03541-0516A-000	SCREW	1	Rp3.500
18	11385-09J00-000	GASKET, BELT COOLING DUCT NO.1	1	Rp3.000
19	01547-0625A-000	BOLT	1	Rp6.500
20	01547-0660A-000	BOLT	1	Rp7.500
21	13770-40JA2-000 SUB: 13770-40JA0-000	BRACKET, AIR CLEANER	1	Rp13.000
22	01547-0630A-000	BOLT	2	Rp6.500
