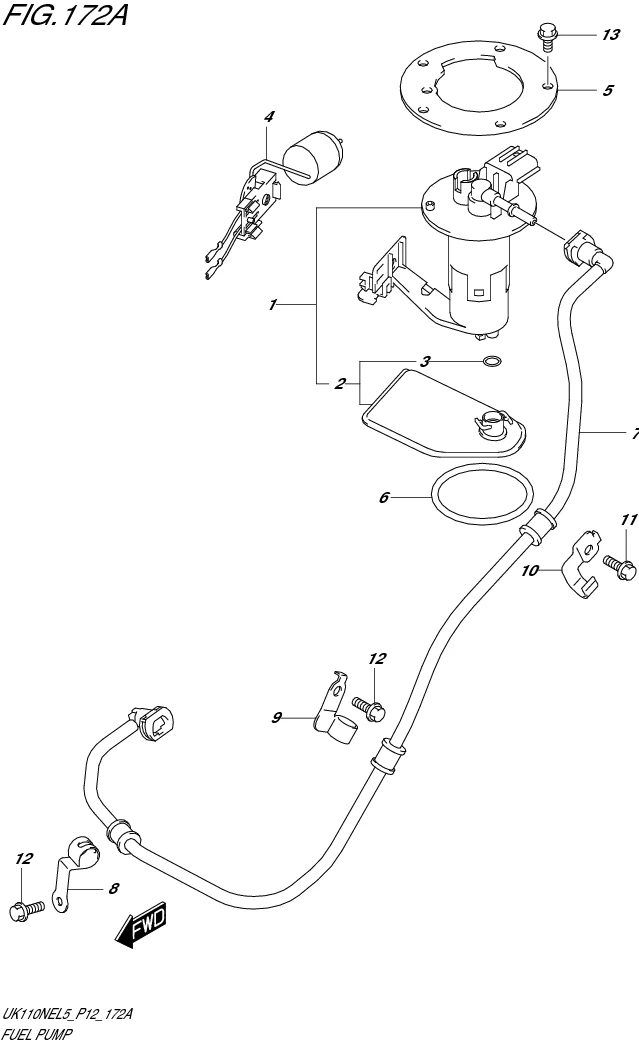

FIG. 172A FUEL PUMP

FIG. 172A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-09JB2-000
SUB: 15100-09JB0-000		 PUMP ASSY, FUEL 1 Rp517.500
2 15420-09JB0-000 .FILTER, FUEL 1 Rp266.500
3 15424-09JB0-000 ..O RING 1 Rp10.000
4 34810-40J01-000
SUB: 34810-40J00-000		 GAUGE ASSY, FUEL LVEL SENDER 1 Rp83.000
5 15121-09JC0-000 PLATE, FUEL PUMP 1 Rp10.500
6 15201-09JA0-000 O RING, FUEL PUMP 1 Rp54.500
7 15810-40JA0-000 HOSE, FUEL 1 Rp191.000
8 DISCONTINUE
SUB: 15891-40JA0-000		 CLAMP, FUEL HOSE FR 1 -
9 15892-40JA0-000 CLAMP, FUEL HOSE MR 1 Rp5.000
10 15893-40JA1-000
SUB: 15893-40JA0-000		 CLAMP, FUEL HOSE RR 1 Rp5.000
11 01547-0610A-000 BOLT 1 Rp3.000
12 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 2 Rp3.000
13 01547-0610A-000 BOLT 5 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
