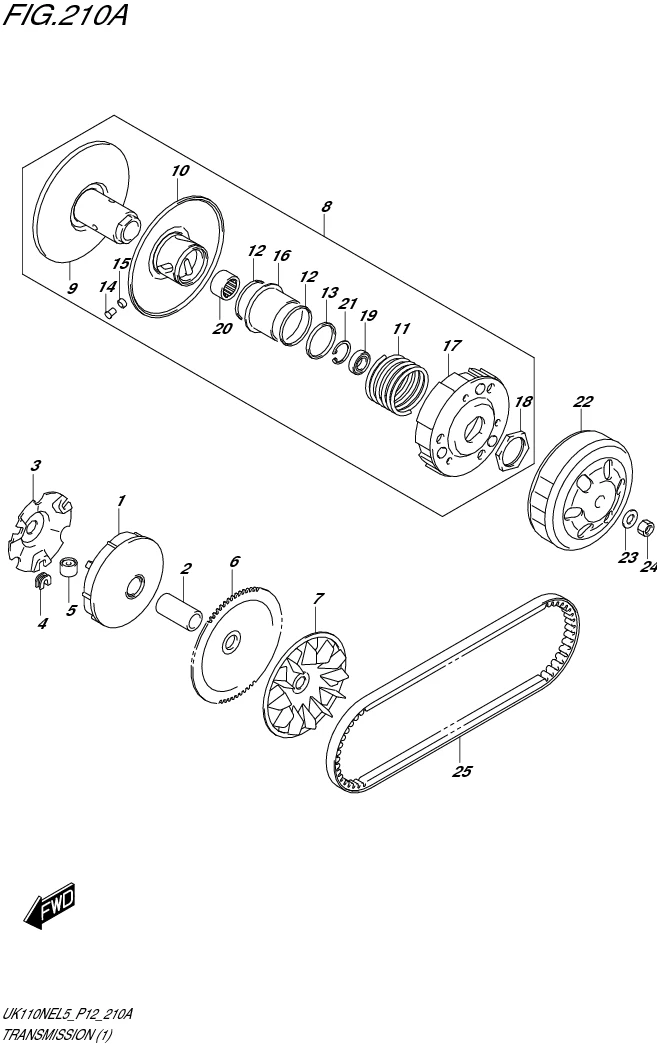

FIG. 210A TRANSMISSION (1)

FIG. 210A TRANSMISSION (1)
No No. Part Description Qty Price Per Pcs Remarks
1 21120-40J01-000
SUB: 21120-40J00-000		 FACE, MOVABLE DRIVE 1 Rp130.000
2 21125-39J00-000 SPACER, MOVABLE DRIVE 1 Rp43.500
3 21431-40J00-000 PLATE, MOVABLE DRIVE 1 Rp33.500
4 21481-40J10-000
SUB: 21481-40J00-000		 DAMPER, MOVABLE DRIVE PLATE 3 Rp8.000
5 21650-32G11-000 ROLLER, MOVABLE DRIVE 6 Rp13.500
6 21111-39J00-000 FACE, FIXED DRIVE (NT:70) 1 Rp94.000
7 21113-39J00-000 FAN, FIXED DRIVE 1 Rp24.000
8 21200-40J20-000
SUB: 21200-40J00-000		 FACE ASSY, DRIVEN 1 Rp756.000
9 21210-39J10-000 .FACE, FIXED DRIVEN 1 Rp118.000
10 21240-39J10-000
SUB: 21240-39J00-000		 .FACE, MOVABLE DRIVEN 1 Rp92.500
11 21243-39J00-000 .SPRING, MOVABLE DRIVEN 1 Rp25.500
12 21245-33G00-000 .O RING, MOVABLE DRIVEN 2 Rp12.500
13 21247-39J00-000 .OIL SEAL (34X39X3) 2 Rp21.000
14 21248-39J00-000 .PIN, MOVABLE DRIVEN 3 Rp6.500
15 21249-33G00-000 .SPACER, MOVABLE DRIVEN PIN 3 Rp4.500
16 21471-09J00-000 .SHEET, MOVABLE DRIVEN 1 Rp14.000
17 21501-40J00-000 .CLUTCH ASSY, SHOE(NA) 1 Rp395.000
18 21518-40J00-000 .NUT, SHOE CLUTCH 1 Rp10.500
19 09262-15049-000 .BEARING 1 Rp38.000 LH
20 09263-20105-000 .BEARING (20X26X14) 1 Rp107.500 RH
21 09381-24005-000 .CIRCLIP 1 Rp8.000
22 21220-40J01-000
SUB: 21220-40J00-000		 HOUSING, CLUTCH 1 Rp103.500
23 09164-12020-000 WASHER (12.2X22X1.2) 1 Rp9.500
24 09140-12037-000 NUT 1 Rp8.500
25 27601-09J50-000
SUB: 27601-09J40-000		 V-BELT, DRIVE 1 Rp113.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
