SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 ENGINE ELECTRICALFIG.47 STARTING MOTORFIG.48 GENERATORFIG.49 BATTERYFIG.50 SPEEDOMETERFIG.51 HEADLAMPFIG.52 FRONT FOG LAMP (4DR)FIG.53 FRONT FOG LAMP (5DR)FIG.54 REAR LAMP/ROOM LAMP (4DR)FIG.55 REAR LAMP/ROOM LAMP (5DR)FIG.56 WIRING HARNESS (4DR)FIG.57 WIRING HARNESS (5DR)FIG.58 ELECTRICAL CONTROL (4DR)FIG.59 ELECTRICAL CONTROL (5DR)FIG.60 LOCK SET (4DR)FIG.61 LOCK SET (5DR)FIG.62 FRONT WINDOW WIPERFIG.63 WINDOW WASHER (4DR)FIG.64 WINDOW WASHER (5DR)FIG.65 REAR WINDOW WIPER (5DR)FIG.66 RADIO

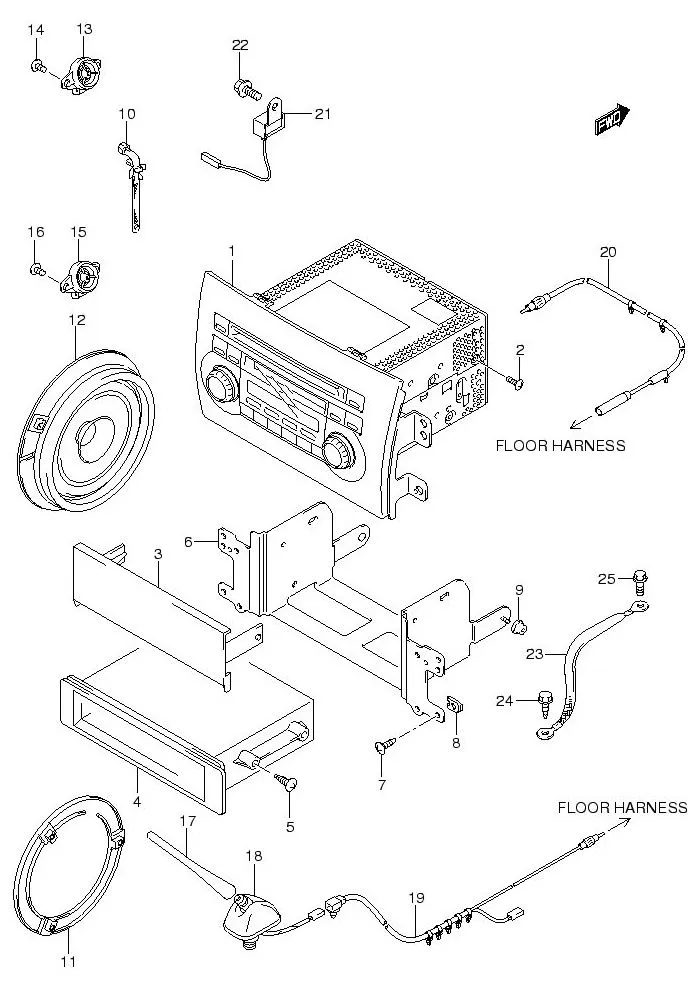

FIG.66 RADIO

FIG.66 RADIO
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 39101-80J31-CZT		 TUNER ASSY (AM/FM,CD,9KHZ) 1 - W/TUNER
2 02142-0508A-000
SUB: 02142-0506A-000		 SCREW 6 Rp3.500 W/TUNER
3 DISCONTINUE
SUB: 39161-74G00-000		 COVER, RADIO HOLE 1 - N/TUNER
4 39182-77M10-000
SUB: 39182M70E51-000		 POCKET, TUNER 1 Rp38.000 N/TUNER
5 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500 N/TUNER
6-1 DISCONTINUE
SUB: 39321-80J00-000		 BRACKET, TUNER 1 - N/TUNER
6-2 DISCONTINUE
SUB: 39321-79J00-000		 BRACKET, TUNER 1 - W/TUNER
7 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
8 09148-05045-000
SUB: 09148B05045N000		 NUT 4 Rp4.000
9 34955M54G10-000 BUSH, RADIO BRKT 2 Rp6.500
10 09407-12404-000 CLAMP 1 Rp19.500 N/TUNER
11 DISCONTINUE
SUB: 39350B63J20N000		 COVER, SPEAKER HOLE 2 - N/REAR SPEAKER
12 DISCONTINUE
SUB: 39102B63J50N000		 SPEAKER ASSY 4 -
13 DISCONTINUE
SUB: 39102B79J00N000		 SPEAKER ASSY, TWEETER FR 2 - W/TWEETER
14 03541-0410A-000 SCREW 4 Rp11.000 W/TWEETER
15 DISCONTINUE
SUB: 39102B79J10N000		 SPEAKER ASSY, TWEETER RR 2 - W/TWEETER
16 03541-0410A-000 SCREW 4 Rp11.000 W/TWEETER
17 39251-81JA0-000 ROD, ANTENNA 1 Rp195.000 5DR
18 39253-81JA2-000
SUB: 39253-81JA1-000		 BASE, ANTENNA 1 Rp896.000 5DR
19-1 DISCONTINUE
SUB: 39271-80JB0-000		 FEEDER, GLASS ANTENNA 1 - 4DR
19-2 39271-80J10-000 FEEDER, ANT ROOF 1 Rp349.000 5DR
20 39270-80J00-000 FEEDER, ANT I/P 1 Rp300.500
21 DISCONTINUE
SUB: 39295-55G00-000		 FILTER ASSY, NOISE 1 - 4DR
22 09115-06005-000 BOLT 2 Rp14.000 4DR
23 39312-78F10-000
SUB: 39312B78F10N000		 WIRE, NOISE SUPPR 1 Rp47.500
24 09115-06005-000 BOLT (6X16) 1 Rp14.000
25 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 1 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
