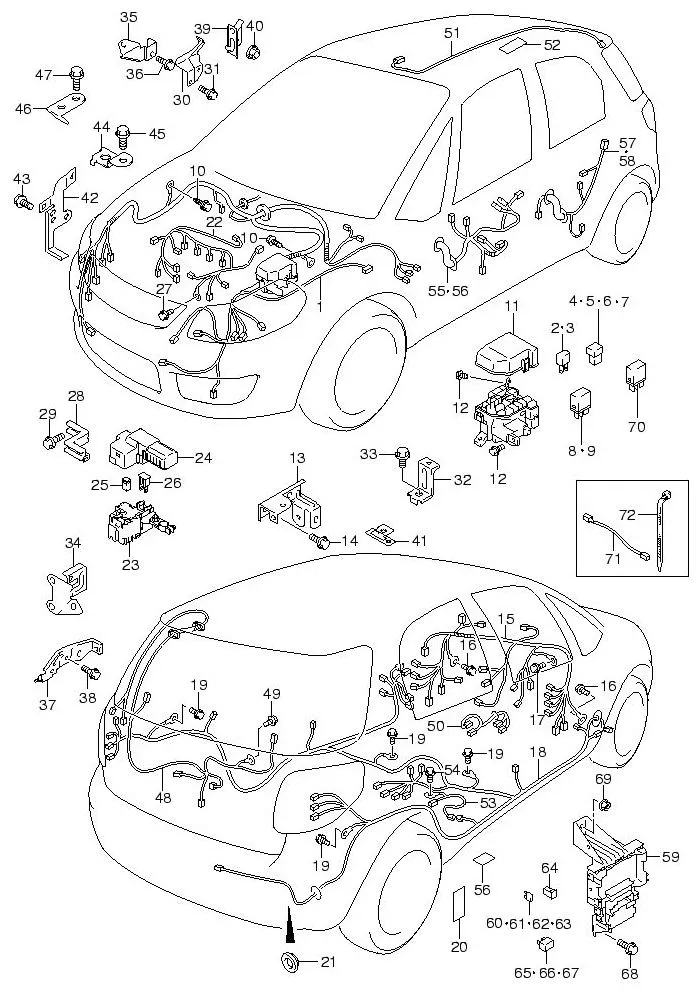

FIG.57 WIRING HARNESS (5DR)

FIG.57 WIRING HARNESS (5DR)
No No. Part Description Qty Price Per Pcs Remarks
1-2 36610-81K50-000
SUB: 36610B81K10N000		 HARNESS ASSY, MAIN 1 Rp9.632.000 MT:DX
1-1 DISCONTINUE
SUB: 36610B81K00N000		 HARNESS ASSY, MAIN 1 - MT:STD
1-4 36610-81K60-000
SUB: 36610B81K20N000		 HARNESS ASSY, MAIN 1 Rp10.108.500 AT:DX
1-3 36610-81K70-000
SUB: 36610B81K30N000		 HARNESS ASSY, MAIN 1 Rp7.979.000 AT:STD
2 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 0 Rp12.500
3 09481-20501-000 •FUSE (20A) 2 Rp16.000
4 09481-30401-000 •FUSE (30A) 0 Rp47.500
5 09481-40401-000 •FUSE (40A) 1 Rp53.000
6 09481-50401-000
SUB: 09481M50401-000		 •FUSE (50A) 1 Rp56.500
7 09481M60401-000 •FUSE (60A) 1 Rp66.000
8 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, STARTER 1 Rp47.000
9 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, RADIATOR 1 Rp47.000
10 09115-06005-000 BOLT (6X16) 2 Rp14.000
11 36717-80J00-000 COVER, RELAY BOX 1 Rp247.000
12 01550-0616C-000 BOLT, RELAY BOX 2 Rp3.500
13 DISCONTINUE
SUB: 36614B79J10N000		 BRACKET, MAIN HARN 1 -
14 01550-0812A-000
SUB: 01550B0812AN000		 BOLT, HARN BRKT 2 Rp3.500
15-1 DISCONTINUE
SUB: 36620B81K00N000		 HARNESS ASSY, I/P 1 - STD
15-2 36620-81K10-000
SUB: 36620B81K10N000		 HARNESS ASSY, I/P 1 Rp4.136.000 DX
16 09115-06005-000 BOLT (6X16) 2 Rp14.000
17 02162-0612A-000 BOLT 1 Rp11.000
18-2 36603-81K10-000
SUB: 36603B81K10N000		 HARNESS ASSY, FLOOR 1 Rp5.652.500 DX
18-1 DISCONTINUE
SUB: 36603B81K00N000		 HARNESS ASSY, FLOOR 1 - STD
19 09115-06005-000 BOLT (6X16) 4 Rp14.000
20 DISCONTINUE
SUB: 84761-50X50-000		 SEAL, HARNESS HOLE 2 -
21 09250-25007-000 CAP, HARNESS HOLE 1 Rp11.000
22-1 36650-81K00-000
SUB: 36650B81K00N000		 HARNESS ASSY, ENGINE 1 Rp5.457.500 MT
22-2 36650-81KA0-001
SUB: 36650B81KA0N000		 HARNESS ASSY, ENGINE 1 Rp3.451.000 AT
23 36740-80J00-000 •BOX ASSY, MAIN FUSE 1 Rp1.367.000
24 36694-80J00-000 ••COVER, BATTERY TERMINAL 1 Rp153.500
25 09481-50401-000
SUB: 09481M50401-000		 ••FUSE (50A) 2 Rp56.500
26 09481-80301-000
SUB: 09481M80301-000		 ••FUSE (80A) 1 Rp86.500
27 DISCONTINUE
SUB: 01550B0612AN000		 BOLT, ENG HARNESS GND 1 -
28 DISCONTINUE
SUB: 36651B63J00N000		 BRACKET, ENG HARNESS T/M 1 - MT
29 01550-0812A-000
SUB: 01550B0812AN000		 BOLT, HARN BRACKET T/M MT 1 Rp3.500 MT
30 DISCONTINUE
SUB: 36651B79J10N000		 BRACKET, ENG HARNESS BODY 1 - AT
31 02162-0612A-000 BOLT, HARN BRACKET BODY 2 Rp11.000 AT
32 DISCONTINUE
SUB: 36651B60J00N000		 BRACKET, ENG HARNESS BLOCK 1 -
33 01550-1025A-000
SUB: 01550B1025AN000		 BOLT, BLOCK BRKT 1 Rp3.500
34 DISCONTINUE
SUB: 36651B79J30N000		 BRACKET, O2 SNSR CONN 1 -
35 DISCONTINUE
SUB: 36651B79J50N000		 BRACKET, ENG HARNESS T/M 1 - AT
36 01550-0816A-000
SUB: 01550B0816AN000		 BOLT, HARN BRACKET 1 Rp6.000 AT
37 DISCONTINUE
SUB: 36651-79J60-000		 BRACKET, ENG HARNESS HOOK 1 -
38 DISCONTINUE
SUB: 01550B0612AN000		 BOLT, HARN BRACKET HOOK 1 -
39 DISCONTINUE
SUB: 36651B79J70N000		 BRACKET, ENG HARNESS T/M 1 - AT
40 08316-1006A-000
SUB: 08316B1006AN000		 NUT, HARN BRACKET T/M 1 Rp2.000 AT
41 DISCONTINUE
SUB: 36652B60J00N000		 BRACKET, ENG HARN 1 -
42 DISCONTINUE
SUB: 36653B80G00N000		 BRACKET, O2 CONN 1 -
43 DISCONTINUE
SUB: 01550B0612AN000		 BOLT, O2 CONN BRACKET 1 -
44 DISCONTINUE
SUB: 36655B54G50N000		 BRACKET, ENG HARNESS T/M 1 - AT
45 01550-0812A-000
SUB: 01550B0812AN000		 BOLT, HARN BRACKET T/M 1 Rp3.500 AT
46 DISCONTINUE
SUB: 36995B77E21N000		 BRACKET, ENG HARNESS OP SW 1 -
47 01550-0816A-000
SUB: 01550B0816AN000		 BOLT, OP WIRE BRKT 1 Rp6.000
48 36680-81K00-000
SUB: 36680B81K00N000		 HARNESS ASSY, BACK DOOR 1 Rp941.500
49 09115-06005-000 BOLT, BACK DOOR GND 1 Rp14.000
50 36615-81K00-000
SUB: 36615B81K00N000		 WIRE, EPS 1 Rp1.011.000
51 DISCONTINUE
SUB: 36820B81KA0N000		 WIRE, DOME LAMP 1 -
52 36930M82000-000
SUB: 36930M82010-000		 COVER, DOME LAMP WIRE 5 Rp6.500
53 36840-80J00-000 WIRE, FUEL PUMP 1 Rp604.000
54 09103-06265-000
SUB: 09103-06168-000		 BOLT, FUEL WIRE GND 1 Rp25.500
55-1 DISCONTINUE
SUB: 36756B81K00N000		 WIRE, FR DOOR DRIVER SIDE 1 - STD
55-2 36756-81K10-000
SUB: 36756B81K10N000		 WIRE, FR DOOR DRIVER SIDE 1 Rp1.190.500 DX
56-1 DISCONTINUE
SUB: 36757B81K00N000		 WIRE, FR DOOR PASSENGER SIDE 1 - STD
56-2 DISCONTINUE
SUB: 36757B81K10N000		 WIRE, FR DOOR PASSENGER SIDE 1 - DX
57-1 DISCONTINUE
SUB: 36751B81K00N000		 WIRE, RR DOOR RH 1 - STD
57-2 DISCONTINUE
SUB: 36751B81K10N000		 WIRE, RR DOOR RH 1 - DX
58-1 DISCONTINUE
SUB: 36751B81KA0N000		 WIRE, RR DOOR LH 1 - STD
58-2 DISCONTINUE
SUB: 36751B81KB0N000		 WIRE, RR DOOR LH 1 - DX
59 36780-81K10-000 BOX SET, J/B & BODY CONT MDL 1 Rp6.486.500
60 09481-10501-000
SUB: 09481M10501-000		 •FUSE (10A) 7 Rp12.500
61 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 10 Rp12.500
62 09481-20501-000 •FUSE (20A) 3 Rp16.000
63 09481-30501-000
SUB: 09481M30501-000		 •FUSE (30A) 1 Rp16.500
64 09481-30401-000 •FUSE (30A) 1 Rp47.500
65 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, HEATER 1 Rp47.000
66 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, HORN 1 Rp47.000
67 38860-76F01-000
SUB: 38860B76F01N000		 •RELAY, RR DEFOGGER 1 Rp47.000
68 01551-0816C-000 BOLT, J/B 1 Rp17.500
69 08316-1008A-000
SUB: 08316B1008AN000		 NUT, J/B 1 Rp3.500
70 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, MAIN 3 Rp47.000
71 36691-79J00-000 WIRE, AIR BAG PASSENGER 1 Rp1.116.500 OPT
72 09407-18402-000
SUB: 09407B18402N000		 CLAMP 4 Rp8.000 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
