SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.46 ENGINE ELECTRICALFIG.47 STARTING MOTORFIG.48 GENERATORFIG.49 BATTERYFIG.50 SPEEDOMETERFIG.51 HEADLAMPFIG.52 FRONT FOG LAMP (4DR)FIG.53 FRONT FOG LAMP (5DR)FIG.54 REAR LAMP/ROOM LAMP (4DR)FIG.55 REAR LAMP/ROOM LAMP (5DR)FIG.56 WIRING HARNESS (4DR)FIG.57 WIRING HARNESS (5DR)FIG.58 ELECTRICAL CONTROL (4DR)FIG.59 ELECTRICAL CONTROL (5DR)FIG.60 LOCK SET (4DR)FIG.61 LOCK SET (5DR)FIG.62 FRONT WINDOW WIPERFIG.63 WINDOW WASHER (4DR)FIG.64 WINDOW WASHER (5DR)FIG.65 REAR WINDOW WIPER (5DR)FIG.66 RADIO

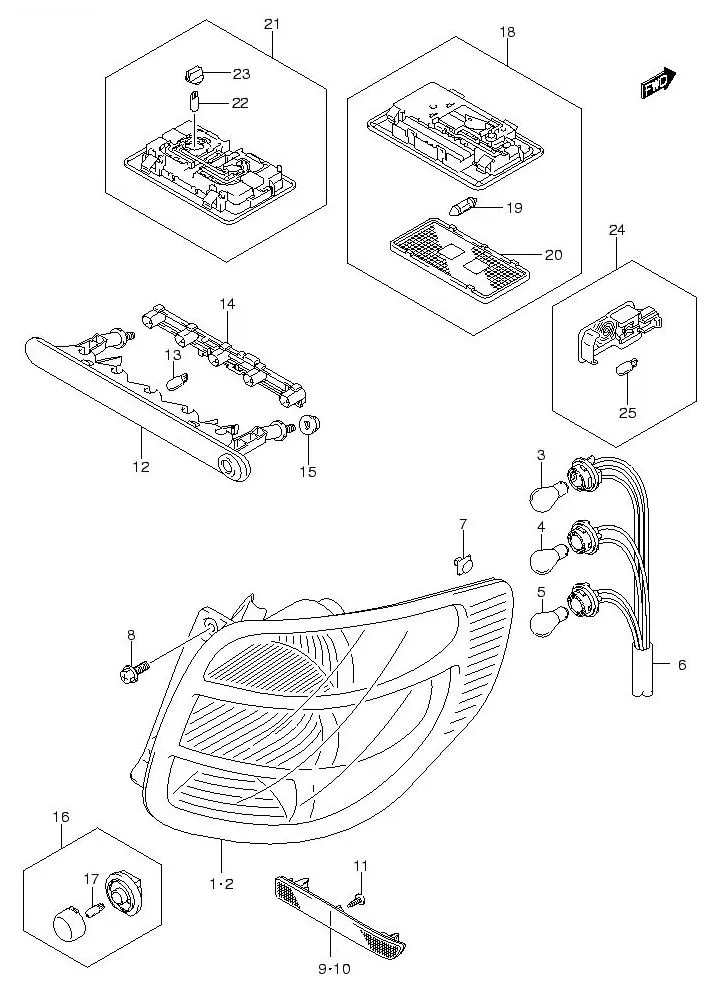

FIG.55 REAR LAMP/ROOM LAMP (5DR)

FIG.55 REAR LAMP/ROOM LAMP (5DR)
No No. Part Description Qty Price Per Pcs Remarks
1 35650-80JA0-000 UNIT, RR COMBINATION RH 1 Rp2.254.000
2 35670-80JA0-000 UNIT, RR COMBINATION LH 1 Rp2.254.000
3 09471-12192-000 BULB (12V21/5W) 2 Rp56.000
4 09471-12191-000 BULB (12V21W) 2 Rp52.500
5 09471-12202-000 BULB (12V 21W/WY21W) (AMBER) 2 Rp78.000
6 35658-80JA0-000 CORD ASSY 2 Rp472.000
7 35153-65J00-000
SUB: 35153B65J00N000		 GROMMET, REAR COMB LAMP 4 Rp7.000
8 02162-0620B-000 SCREW 4 Rp17.500
9 35950-81K00-000
SUB: 35950-79J01-000		 REFLECTOR ASSY, REAR RH 1 Rp31.000
10 35970-81K00-000
SUB: 35970-79J01-000		 REFLECTOR ASSY, REAR LH 1 Rp31.000
11 03241M0516A-000
SUB: 03141M0516A-000		 SCREW 2 Rp4.500
12 35820-79J00-000 LAMP UNIT, HIGH MOUNT STOP 1 Rp817.500
13 09471-12216-000
SUB: 09471B12216N000		 BULB (12V5W) 5 Rp15.000
14 35817-79J01-000 BULB COVER 1 Rp478.500
15 09159-06100-000 NUT 2 Rp19.000
16 35910-75F31-000
SUB: 35910-75F30-000		 LAMP ASSY, LICENSE 2 Rp181.000
17 09471-12081-000
SUB: 09471B12081N000		 •BULB (12V5W) 2 Rp11.000
18 DISCONTINUE
SUB: 36210B63J10N6GS		 LAMP ASSY, ROOM (GRAY) 1 -
19 09471-12L04-000
SUB: 09471B12181N000		 •BULB (12V10W) 1 Rp30.500
20 36212-63J00-000 •LENS 1 Rp107.000
21 36230-79J00-6GS LAMP ASSY, SPOT (GRAY) 1 Rp742.000
22 09471-12113-000 •BULB (12V8W) (KOITO) 2 Rp21.500
23 36218-74F00-000 •SOCKET 2 Rp40.500
24 36210-54G20-000 LAMP ASSY, LUGGAGE ROOM 1 Rp199.500
25 09471-12081-000
SUB: 09471B12081N000		 •BULB (12V 5W) 1 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
