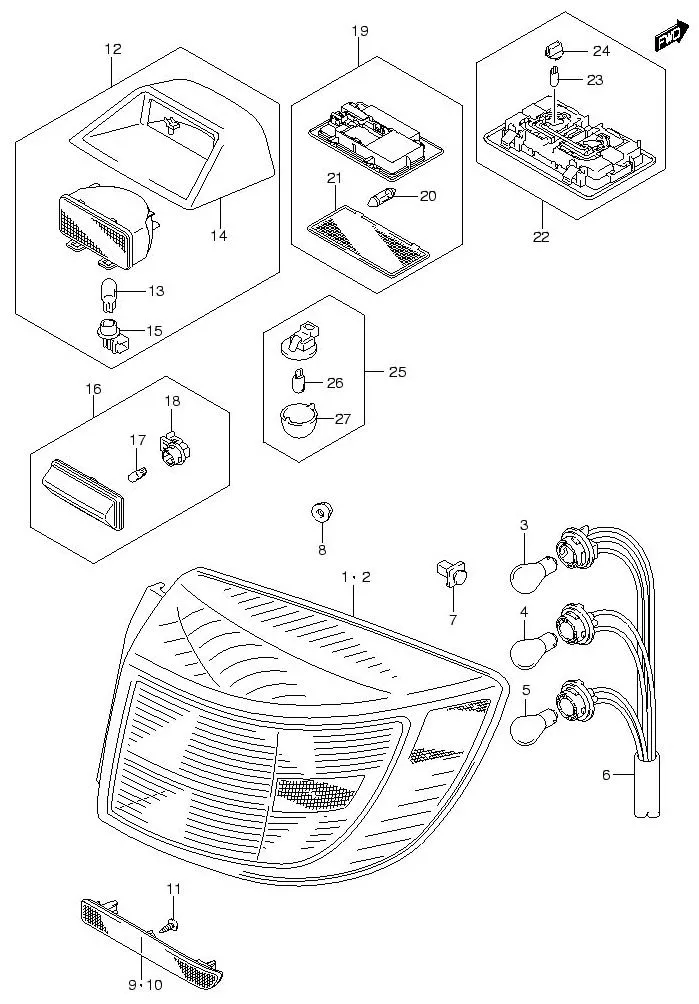

FIG.54 REAR LAMP/ROOM LAMP (4DR)

FIG.54 REAR LAMP/ROOM LAMP (4DR)
No No. Part Description Qty Price Per Pcs Remarks
1 35650-80J60-000 LAMP UNIT, RR COMBINATION RH 1 Rp2.688.000
2 35670-80J70-000 LAMP UNIT, RR COMBINATION LH 1 Rp2.688.000
3 09471-12192-000 BULB (12V21/5W) 2 Rp56.000
4 09471-12191-000 BULB (12V21W) 2 Rp52.500
5 09471-12202-000 BULB (12V 21W/WY21W) (AMBER) 2 Rp78.000
6 DISCONTINUE
SUB: 35658-80J60-000		 SOCKET & CORD ASSY 2 -
7 35153-65J00-000
SUB: 35153B65J00N000		 GROMMET, REAR COMB LAMP 2 Rp7.000
8 08316-1005A-000
SUB: 08316B1005AN000		 NUT 6 Rp2.500
9 35950-81K00-000
SUB: 35950-79J01-000		 REFLECTOR ASSY, REAR RH 1 Rp31.000
10 35970-81K00-000
SUB: 35970-79J01-000		 REFLECTOR ASSY, REAR LH 1 Rp31.000
11 03241M0516A-000
SUB: 03141M0516A-000		 SCREW 2 Rp4.500
12 DISCONTINUE
SUB: 35810-80J00-R8H		 LAMP ASSY, HIGH MOUNT STOP (BEIGE) 1 -
13 09471-12146-000
SUB: 09471B12146N000		 •BULB (12V18W) (W16W) 1 Rp39.500
14 DISCONTINUE
SUB: 35821-80J00-R8H		 •COVER (BEIGE) 1 -
15 DISCONTINUE
SUB: 36258-70C30-000		 •SOCKET, BULB 1 -
16 DISCONTINUE
SUB: 35910-55G00-000		 LAMP ASSY, LICENSE 2 -
17 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V5W) 2 Rp15.000
18 DISCONTINUE
SUB: 36258-70C30-000		 •SOCKET, BULB 2 -
19 DISCONTINUE
SUB: 36210B63J10N6GS		 LAMP ASSY, ROOM (GRAY) 1 -
20 09471-12L04-000
SUB: 09471B12181N000		 •BULB (12V10W) 1 Rp30.500
21 36212-63J00-000 •LENS 1 Rp107.000
22 36230-79J00-6GS LAMP ASSY, SPOT (GRAY) 1 Rp742.000
23 09471-12113-000 •BULB (12V8W) (KOITO) 2 Rp21.500
24 36218-74F00-000 •SOCKET 2 Rp40.500
25 DISCONTINUE
SUB: 36230-70C00-000		 LAMP ASSY, TRUNK ROOM 1 -
26 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V5W) 1 Rp15.000
27 DISCONTINUE
SUB: 36232-70C00-000		 •LENS 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
