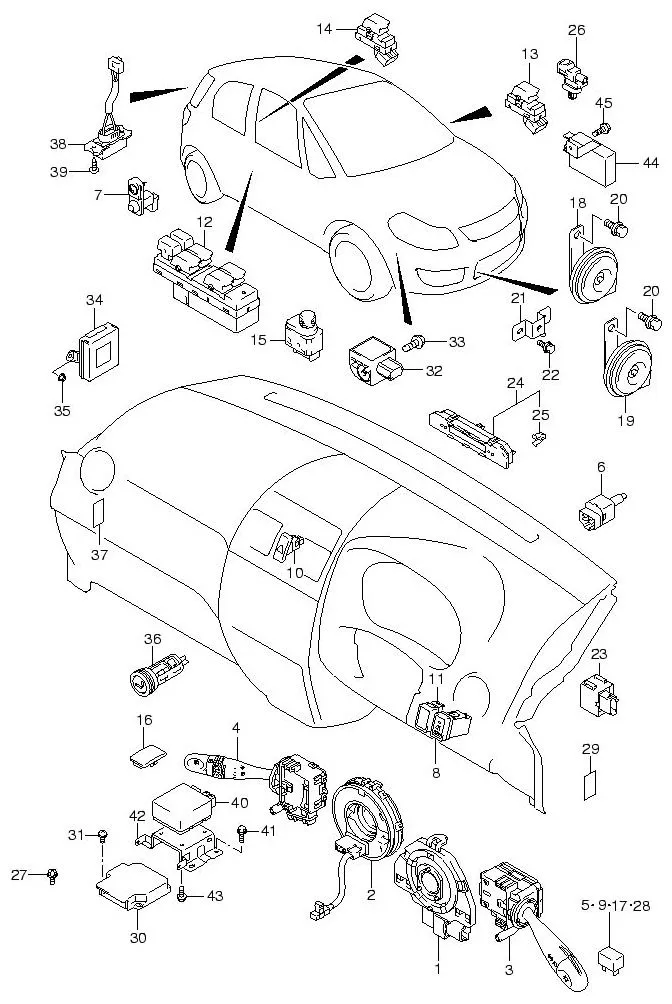

FIG.59 ELECTRICAL CONTROL (5DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37485M55K00-000	BODY ASSY, CANCEL CAM & HORN	1	Rp218.000	STD
2	37480-62J20-000	CABLE ASSY, CONTACT COIL	1	Rp1.548.000	DX
3	37210-73HB1-000 SUB: 37210-58J00-000	SWITCH ASSY, LIGHTING & TURN	1	Rp286.000
4	37310-62J21-000 SUB: 37310-62J20-000	SWITCH ASSY, WIPER & WASHER	1	Rp1.508.500
5	38860-76F01-000 SUB: 38860B76F01N000	RELAY, REAR WIPER	1	Rp47.000
6	37740-81K00-000 SUB: 37740B75H10N000	SWITCH ASSY, STOP LAMP	1	Rp77.500
7	37670-58J10-000 SUB: 37670B58J10N000	SWITCH ASSY, DOOR	4	Rp107.500
8	37270-62J00-000	SWITCH ASSY, FR FOG LAMP	1	Rp375.000	W/FRONT FOG LAMP
9	38860-76F01-000 SUB: 38860B76F01N000	RELAY, FR FOG LAMP	1	Rp47.000	W/FRONT FOG LAMP
10	37430-62J00-P4Z	SWITCH ASSY, HAZARD WARNING (GRAY)	1	Rp322.500
11	37285-62J10-000	CAP, OPTION SWITCH HOLE	0	Rp41.500
12	37990-80J00-000	SWITCH ASSY, POWER WINDOW MAIN	1	Rp1.732.500
13	37995-62J00-000	SWITCH ASSY, POWER WINDOW SUB	1	Rp247.500
14	37995-62J00-000	SWITCH ASSY, POWER WINDOW RR	2	Rp247.500
15-1	37950-62J01-000 SUB: 37950-62J00-000	SWITCH ASSY, MIRROR	1	Rp274.000	STD
15-2	37950-62J11-000 SUB: 37950-62J10-000	SWITCH ASSY, MIRROR	1	Rp333.000	DX
16	37285-62J00-000	CAP, OPTION SWITCH HOLE	0	Rp45.000
17	38860-76F01-000 SUB: 38860B76F01N000	RELAY, SHIFT LOCK	1	Rp47.000	AT
18	38500-81K00-000 SUB: 38500B81K00N000	HORN ASSY, LOW PITCHED	1	Rp89.000
19	38500-81K10-000 SUB: 38500B81K10N000	HORN ASSY, HIGH PITCHED	1	Rp103.500
20	09115-08001-000	BOLT	2	Rp21.500
21	DISCONTINUE SUB: 38570B81K00N000	BRACKET, HORN	1	-
22	09115-06005-000	BOLT	2	Rp14.000
23	38610-84F00-000	RELAY, TURN SIGNAL & 4 WAY	1	Rp613.000
24-1	DISCONTINUE SUB: 34600-79J10-000	MONITOR ASSY, CLOCK	1	-	STD
24-2	DISCONTINUE SUB: 34600-80J02-000	MONITOR ASSY, INFORMATION	1	-	DX
25	09409-08332-000	•CLIP	3	Rp18.000
26	95643-58J00-000	SENSOR, OUTSIDE TEMPERATURE	1	Rp262.000	DX
27	02162-0616B-000	SCREW	2	Rp15.500
28	38860-76F01-000 SUB: 38860B76F01N000	RELAY, AT	1	Rp47.000	AT
29	77151-82000-000 SUB: 77151B82000N000	FILM, SIDE BODY OUTER, REAR	1	Rp7.000
30	38910-79J02-000	CONTROLLER ASSY, AIR BAG	1	Rp9.992.500	DX
31-1	09115-06004-000	BOLT (6X16)	3	Rp19.500	DX
31-2	DISCONTINUE SUB: 09129-06006-000	BOLT	3	-	N/AIR BAG
32	38930-80J00-000	SENSOR ASSY, FORWARD	1	Rp1.278.000	DX
33	09115-06004-000	BOLT (6X16)	1	Rp19.500	DX
34	38880-80J30-000	CONTROLLER ASSY, AT	1	Rp11.131.500	AT
35	08316-1006A-000 SUB: 08316B1006AN000	NUT	2	Rp2.000	AT
36	DISCONTINUE SUB: 39400-59J10-000	LIGHTER ASSY, CIGARETTE	1	-
37	DISCONTINUE SUB: 84761-50X50-000	SEAL (140X190)	1	-
38	37178-79J00-000	SWITCH ASSY, BACK DOOR	1	Rp532.500
39	03541-0416A-000 SUB: 03541B0416AN000	SCREW	2	Rp3.500
40	DISCONTINUE SUB: 38720B79J50N000	CONTROLLER ASSY, EPS	1	-
41	09115-06005-000	BOLT (6X16)	2	Rp14.000
42	DISCONTINUE SUB: 38721B56K00N000	BRACKET, EPS CONTROLLER	1	-
43	02162-0508A-000 SUB: 02162B0508AN000	SCREW	2	Rp3.500
44	38850-81K00-000	CONTROLLER ASSY SPEED CONVERTER	1	Rp3.098.500	STD:MT
45	02162-0616A-000	BOLT	1	Rp3.000	STD:MT
