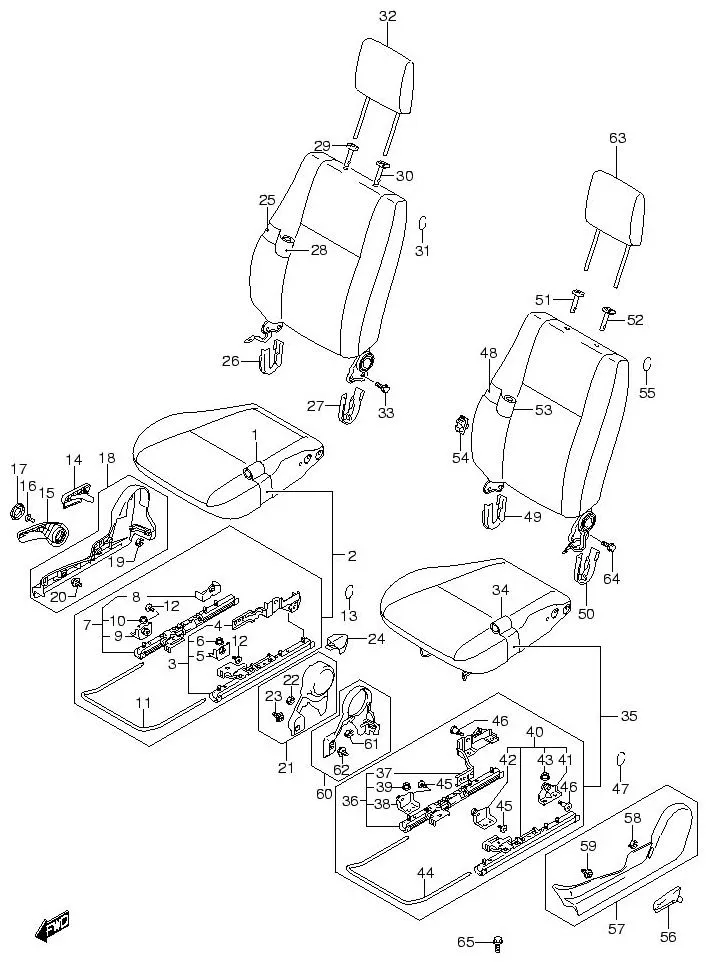

FIG.138 FRONT SEAT (DX)

FIG.138 FRONT SEAT (DX)
No No. Part Description Qty Price Per Pcs Remarks
1-2 85180-63J70-EKA TRIM, FR CUSH RH 1 - 5DR
1-1 85180-63J70-ETV TRIM, FR CUSH RH 1 - 4DR
2 DISCONTINUE
SUB: 85105-80J20-000		 CUSHION S/ASSY, FR RH 1 -
3 DISCONTINUE
SUB: 86601-80J20-000		 •ADJUSTER SUB ASSY, FR RH 1 -
4 DISCONTINUE
SUB: 86712-63J70-000		 ••RISER, LIFTER RR INSIDE RH 1 -
5 DISCONTINUE
SUB: 86721-63J70-000		 ••RISER, LIFTER FR INSIDE RH 1 -
6 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
7 DISCONTINUE
SUB: 86603-80J20-000		 •ADJUSTER SUB ASSY, FR RH 1 -
8 DISCONTINUE
SUB: 86641-63J70-000		 ••RISER, RR OUTSIDE 1 -
9 DISCONTINUE
SUB: 86710-63J70-000		 ••RISER, LIFTER FR OUTSIDE RH 1 -
10 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
11 DISCONTINUE
SUB: 86691-63J00-000		 •HANDLE, FR SEAT ADJUSTER 1 -
12 DISCONTINUE
SUB: 86717-63J70-000		 •BOLT 4 -
13 09387-19001-000
SUB: 09387B19001N000		 RING 11 Rp9.000
14-1 85211-65J00-R8H KNOB, RCLNG RH (BEIGE) 1 Rp64.500 4DR
14-2 85211-65JA0-P4Z
SUB: 85211-65J00-P4Z		 KNOB, RCLNG RH (GRAY) 1 Rp90.000 5DR
15-1 DISCONTINUE
SUB: 85213-65J00-R8H		 LEVER, SEAT LIFTER (BEIGE) 1 - 4DR
15-2 DISCONTINUE
SUB: 85213-65J00-P4Z		 LEVER, SEAT LIFTER (GRAY) 1 - 5DR
16 09132-05043-000
SUB: 09132B05043N000		 SCREW (5X10) 2 Rp17.500
17-1 DISCONTINUE
SUB: 85214-63J20-R8H		 CAP, LIFTER LEVER (BEIGE) 1 - 4DR
17-2 DISCONTINUE
SUB: 85214-63J20-P4Z		 CAP, LIFTER LEVER (GRAY) 1 - 5DR
18-1 DISCONTINUE
SUB: 85220-63J20-R8H		 COVER, RCLNG OUTSIDE RH (BEIGE) 1 - 4DR
18-2 85220-63J20-P4Z COVER, RCLNG OUTSIDE RH (GRAY) 1 Rp488.000 5DR
19 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
20 09409-10313-000 •CLIP 2 Rp14.000
21-1 DISCONTINUE
SUB: 85240-65J00-R8H		 COVER, FR RCLNG INSIDE RH (BEIGE) 1 - 4DR
21-2 85240-65J00-P4Z COVER, FR RCLNG INSIDE RH (GRAY) 1 Rp141.000 5DR
22 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
23 09409-10313-000 •CLIP 1 Rp14.000
24 DISCONTINUE
SUB: 85243-63J70-000		 COVER, RR RISER INSIDE RH 1 -
25 DISCONTINUE
SUB: 85305B63JG0N000		 BACK S/ASSY, FR RH 1 -
26-1 DISCONTINUE
SUB: 85222-63J00-R8H		 COVER, FR BACK FRAME RH (BEIGE) 1 - 4DR
26-2 DISCONTINUE
SUB: 85222M63J00-P4Z		 COVER, FR BACK FRAME RH (GRAY) 1 - 5DR
27-2 DISCONTINUE
SUB: 85242-63J00-P4Z		 COVER, FR BACK FRAME LH (GRAY) 1 - 5DR
27-1 DISCONTINUE
SUB: 85242-63J00-R8H		 COVER, FF BACK FRAME LH (BEIGE) 1 - 4DR
28-1 85380-63J40-CHN TRIM, FR BACK RH 1 - 4DR
28-2 85380-63J40-EKA TRIM, FR BACK RH 1 - 5DR
29-1 DISCONTINUE
SUB: 85341-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - 4DR
29-2 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 - 5DR
30-1 DISCONTINUE
SUB: 85840-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - 4DR
30-2 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 - 5DR
31 09387-19001-000
SUB: 09387B19001N000		 RING 2 Rp9.000
32-1 DISCONTINUE
SUB: 86401-65J00-V2E		 HEADRESTRAINT ASSY 1 - 4DR
32-2 DISCONTINUE
SUB: 86401B65J00NU9E		 HEADRESTRAINT ASSY 1 - 5DR
33 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
34-2 85680-63J50-EKA TRIM, FR CUSH LH 1 - 5DR
34-1 85680-63J50-ETV TRIM, FR CUSH LH 1 - 4DR
35 DISCONTINUE
SUB: 85106-80J40-000		 CUSHION S/ASSY, FR LH 1 -
36 DISCONTINUE
SUB: 86602-80J00-000		 •ADJUSTER SUB ASSY, FR LH 1 -
37 DISCONTINUE
SUB: 86762-63J50-000		 ••RISER, RR INSIDE LH 1 -
38 DISCONTINUE
SUB: 86721-63J50-000		 ••RISER, FR INSIDE 1 -
39 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
40 86604-80J01-000
SUB: 86604-80J00-000		 •ADJUSTER SUB ASSY, FR LH 1 Rp1.574.000
41 DISCONTINUE
SUB: 86641-63J50-000		 ••RISER, RR OUTSIDE 1 -
42 DISCONTINUE
SUB: 86711-63J50-000		 ••RISER, FR OUTSIDE 1 -
43 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
44 DISCONTINUE
SUB: 86691-63J00-000		 •HANDLE, FR SEAT ADJUSTER 1 -
45 01550-1016A-000
SUB: 01550B1016AN000		 •BOLT 2 Rp5.500
46 01550-1035A-000
SUB: 01550B1035AN000		 •BOLT 2 Rp5.500
47 09387-19001-000
SUB: 09387B19001N000		 RING 11 Rp9.000
48 DISCONTINUE
SUB: 85306-63JL0-000		 BACK S/ASSY, FR LH 1 -
49-1 DISCONTINUE
SUB: 85222-63J00-R8H		 COVER, FR BACK FRAME RH (BEIGE) 1 - 4DR
49-2 DISCONTINUE
SUB: 85222M63J00-P4Z		 COVER, FR BACK FRAME RH (GRAY) 1 - 5DR
50-1 DISCONTINUE
SUB: 85242-63J00-R8H		 COVER, FR BACK FRAME LH (BEIGE) 1 - 4DR
50-2 DISCONTINUE
SUB: 85242-63J00-P4Z		 COVER, FR BACK FRAME LH (GRAY) 1 - 5DR
51-2 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 - 5DR
51-1 DISCONTINUE
SUB: 85341-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - 4DR
52-1 DISCONTINUE
SUB: 85840-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - 4DR
52-2 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 - 5DR
53-1 85880-63J50-ETV TRIM, FR BACK LH 1 - 4DR
53-2 85880-63J50-EKA TRIM, FR BACK LH 1 - 5DR
54-1 86590-58J01-R8H HOOK, SEAT BACK (BEIGE) 1 Rp129.500 4DR
54-2 86590-58J01-P4Z HOOK, SEAT BACK (GRAY) 1 Rp85.500 5DR
55 09387-19001-000
SUB: 09387B19001N000		 RING 2 Rp9.000
56-1 85711-65JA0-R8H
SUB: 85711-65J00-R8H		 KNOB, RCLNG LH (BEIGE) 1 Rp69.000 4DR
56-2 85711-65JA0-P4Z
SUB: 85711-65J00-P4Z		 KNOB, RCLNG LH (GRAY) 1 Rp81.500 5DR
57-2 DISCONTINUE
SUB: 85720-63J20-P4Z		 COVER, RCLNG OUTSIDE LH (GRAY) 1 - 5DR
57-1 DISCONTINUE
SUB: 85720-63J20-R8H		 COVER, RCLNG OUTSIDE LH (BEIGE) 1 - 4DR
58 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
59 09409-10313-000 •CLIP 2 Rp14.000
60-1 DISCONTINUE
SUB: 85740-65J00-R8H		 COVER, FR RCLNG INSIDE LH (BEIGE) 1 - 4DR
60-2 85740-65J00-P4Z COVER, FR RCLNG INSIDE LH (GRAY) 1 Rp170.500 5DR
61 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
62 09409-10313-000 •CLIP 1 Rp14.000
63-1 DISCONTINUE
SUB: 86401-65J00-V2E		 HEADRESTRAINT ASSY 1 - 4DR
63-2 DISCONTINUE
SUB: 86401B65J00NU9E		 HEADRESTRAINT ASSY 1 - 5DR
64 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
65 09119-08097-000 BOLT (8X25) 8 Rp27.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
