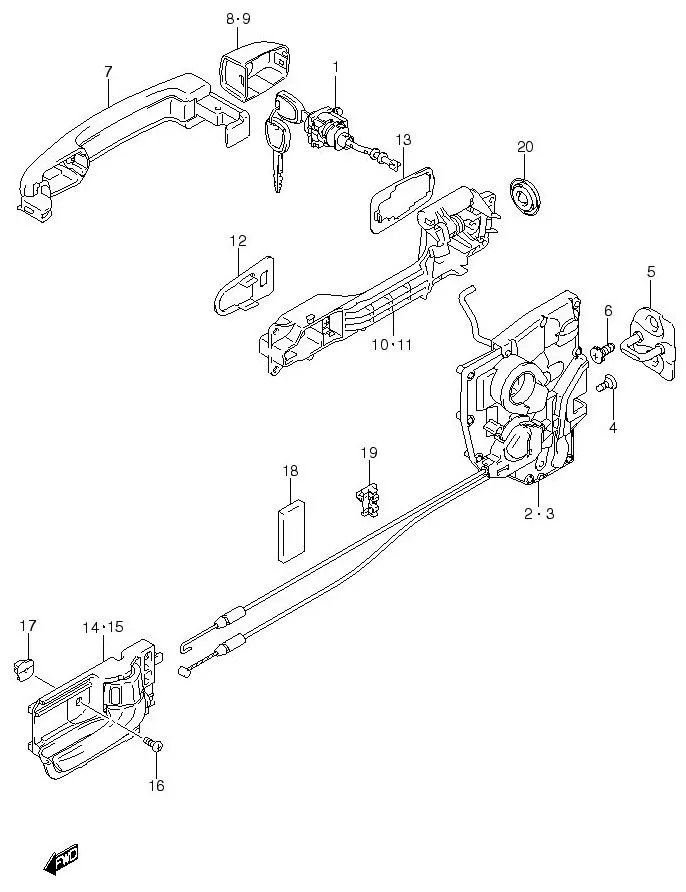

FIG.124 FRONT DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 82270-80830-000	CYLINDER, FRONT DOOR LOCK RH	1	-
2	82201-80J34-000 SUB: 82201-80J30-000	LATCH ASSY, FRONT DOOR RH	1	Rp1.943.000
3	82202-80J44-000 SUB: 82202-80J40-000	LATCH ASSY, FRONT DOOR LH	1	Rp1.893.000
4	09137-06028-000	SCREW (6X18)	6	Rp18.500
5	82610-63J00-000	STRIKER, DOOR LATCH	2	Rp174.500
6	DISCONTINUE SUB: 09137M08004-000	SCREW (8X18)	4	-	5DR:STD,DX
7-2	82812-63J00-ZDL	HANDLE, DOOR OUT (GRAY)	2	Rp529.000	4DR, 5DR:DX
7-3	82812-63J00-ZFM	HANDLE, DOOR OUT (COPPER)	2	Rp636.000	4DR,5DR:STD,DX
7-4	82812-63J00-ZFN	HANDLE, DOOR OUT (BLUE)	2	Rp715.500	5DR:STD,DX,5DR:DX,5DR:STD,DX,5DR:STD,5DR:STD,DX
8-1	82813-63J00-5PK	CAP, DOOR OUT RH (BLACK)	1	Rp130.500	PAINT TO MATCH 5DR:STD,DX
8-2	82813-63J00-ZDL	CAP, DOOR OUT RH (BLUE)	1	Rp206.500	4DR,5DR:DX
8-3	82813-63J00-ZFM	CAP, DOOR OUT RH (CHOPPER)	1	Rp245.500	4DR,5DR:STD,DX
8-4	82813-63J00-ZFN	CAP, DOOR OUT RH (BLUE)	1	Rp278.000	5DR:STD,DX,5DR:DX,5DR:STD,DX,5DR:STD,DX,5DR:STD,DX
9-2	82813-63J10-ZDL	CAP, DOOR OUT LH (GRAY)	1	Rp313.500	4DR,5DR:DX
9-4	82813-63J10-ZFN	CAP, DOOR OUT LH (BLUE)	1	Rp318.500	4DR:STD,DX,5DR:DX,5DR:STD,DX,5DR:STD,DX
9-3	DISCONTINUE SUB: 82813-63J10-ZFM	CAP, DOOR OUT LH (COPPER)	1	-	4DR,5DR:STD,DX
10	82821-63J00-000	FRAME, DOOR OUT LH	1	Rp452.500
11	82811-63J00-000	FRAME, DOOR OUT RH	1	Rp452.500
12	82814-63J00-000	PAD, DOOR OUT	2	Rp46.500
13	82815-63J00-000	CUSHION, SIDE DOOR OUT	2	Rp48.500
14	83110-63J30-BWR	HANDLE ASSY, DOOR INSIDE RH (GRAY)	1	Rp523.000
15	DISCONTINUE SUB: 83130-63J30-BWR	HANDLE ASSY, DOOR INSIDE LH (GRAY)	1	-
16	09132-05058-000	SCREW (5X12)	2	Rp14.000
17	09148-05031-000	NUT, DOOR INSIDE HANDLE	2	Rp18.000
18	77591M75000-000	PAD	2	Rp7.000
19	83271M50E00-000	CLIP	2	Rp6.500
20	09250-25007-000	PLUG, HANDLE HOLE (OD:33.5)	2	Rp10.500
