< KEMBALI KE THUMBNAIL FIG.90 FRONT HOOD ANEL FIG.91 FRONT FENDER FIG.92 FRONT BODY PANEL FIG.93 FLOOR PANEL (4DR)FIG.94 FLOOR PANEL (5DR)FIG.95 SIDE BODY PANEL (4DR)FIG.96 SIDE BODY PANEL (5DR)FIG.97 ROOF PANEL (4DR)FIG.98 ROOF PANEL (5DR)FIG.99 FRONT BUMPER (4DR)FIG.100 FRONT BUMPER (5DR)FIG.101 REAR BUMPER (4DR)FIG.102 REAR BUMPER (5DR)FIG.103 INSTRUMENT PANEL FIG.104 VENTILATOR FIG.105 HEATER FIG.106 HEATER CONTROL FIG.107 CONSOLE BOX FIG.108 FLOOR CARPET (4DR)FIG.109 FLOOR CARPET (5DR)FIG.110 INTERIOR TRIM (4DR)FIG.111 INTERIOR TRIM (5DR)FIG.112 BODY CAP/COVER FIG.113 FUEL LID OPENER FIG.114 ROOF LINING (4DR)FIG.115 ROOF LINING (5DR)FIG.116 MOLDING (4DR)FIG.117 MOLDING (5DR)FIG.118 SPLASH GUARD (5DR:DX)FIG.119 EMBLEM FIG.120 FRONT/BACK GLASS (4DR)FIG.121 WINDSHIELD GLASS (5DR)FIG.122 FRONT DOOR PANEL FIG.123 FRONT DOOR REGULATOR FIG.124 FRONT DOOR LOCK FIG.125 REAR DOOR PANEL (4DR)FIG.126 REAR DOOR REGULATOR (4DR)FIG.127 REAR DOOR LOCK (4DR)FIG.128 REAR DOOR PANEL (5DR)FIG.129 REAR DOOR REGULATOR (5DR)FIG.130 REAR DOOR LOCK (5DR)FIG.131 TRUNK LID (4DR)FIG.132 TRUNK LID LOCK (4DR)FIG.133 BACK DOOR PANEL (5DR)FIG.134 BACK DOOR LOCK (5DR)FIG.134 MIRROR/SUNVISOR FIG.136 SEAT BELT FIG.137 FRONT SEAT (STD)FIG.138 FRONT SEAT (DX)FIG.139 REAR SEAT (4DR)FIG.140 RH REAR SEAT (5DR)FIG.141 LH REAR SEAT (5DR)FIG.142 PARCEL SHELF (5DR)FIG.143 FUEL TANK FIG.144 TOOL FIG.145 AIR CONDITIONER FIG.146 COMPRESSOR

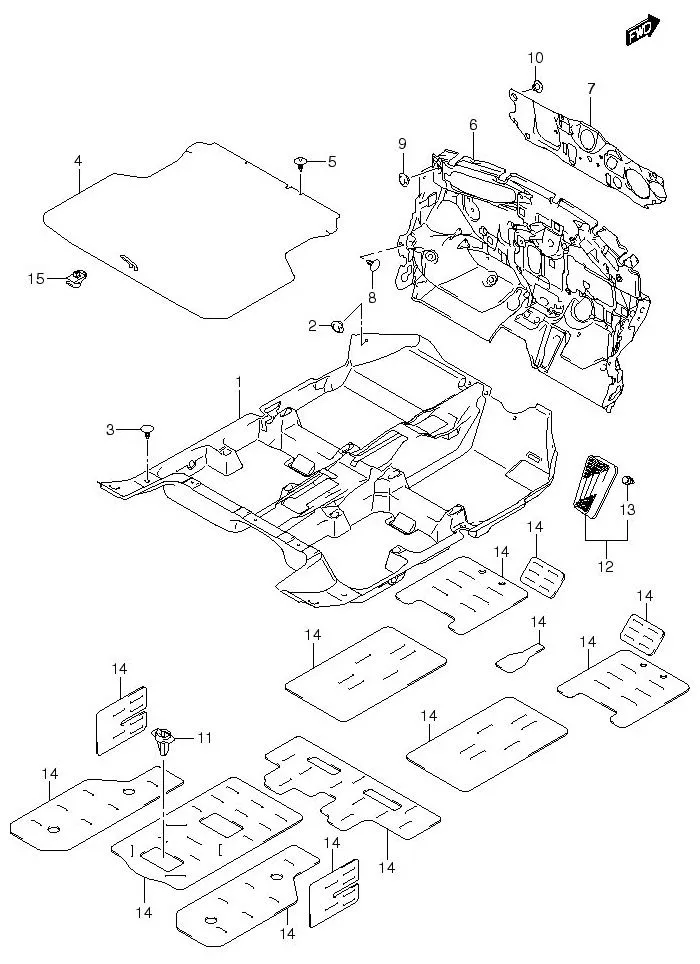

FIG.108 FLOOR CARPET (4DR)

FIG.108 FLOOR CARPET (4DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-1	DISCONTINUE SUB: 75110B81KA0NR9U	CARPET, FLOOR (BEIGE)	1	-	MT
1-2	DISCONTINUE SUB: 75110B81KB0NR9U	CARPET, FLOOR (BEIGE)	1	-	AT
2	09148-05037-000	CLIP	2	Rp18.000
3	DISCONTINUE SUB: 09409-10302-R8H	CLIP (BEIGE)	3	-
4	DISCONTINUE SUB: 75410-75K00-R2B	COVER, SPARE TIRE	1	-
5	09409-10302-5PK	CLIP (BLACK)	2	Rp18.500
6	DISCONTINUE SUB: 75220-80J00-000	SILENCER, DASH PANEL	1	-
7	75280-80J00-000	SILENCER, DASH OUTER	1	Rp878.000
8	DISCONTINUE SUB: 09409-10302-R8H	CLIP, DASH (BEIGE)	2	-
9	09148-05037-000	CLIP	6	Rp18.000
10	09148-05037-000	CLIP	2	Rp18.000
11	75450-80J00-000	HOLDER, SPARE TIRE	1	Rp125.000
12	75441-80J01-000	PEDAL, FOOTREST	1	Rp122.000	AT
13	DISCONTINUE SUB: 09409-08340-000	•CLIP	2	-	AT
14	99611-60A01-000	SHEET, FLOOR FR SILENCER	0	Rp1.210.000	CUT AS REQUIRED
15	DISCONTINUE SUB: 84851-65D00-5PK	HOOK, LUGGAGE CARPET (BLACK)	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
