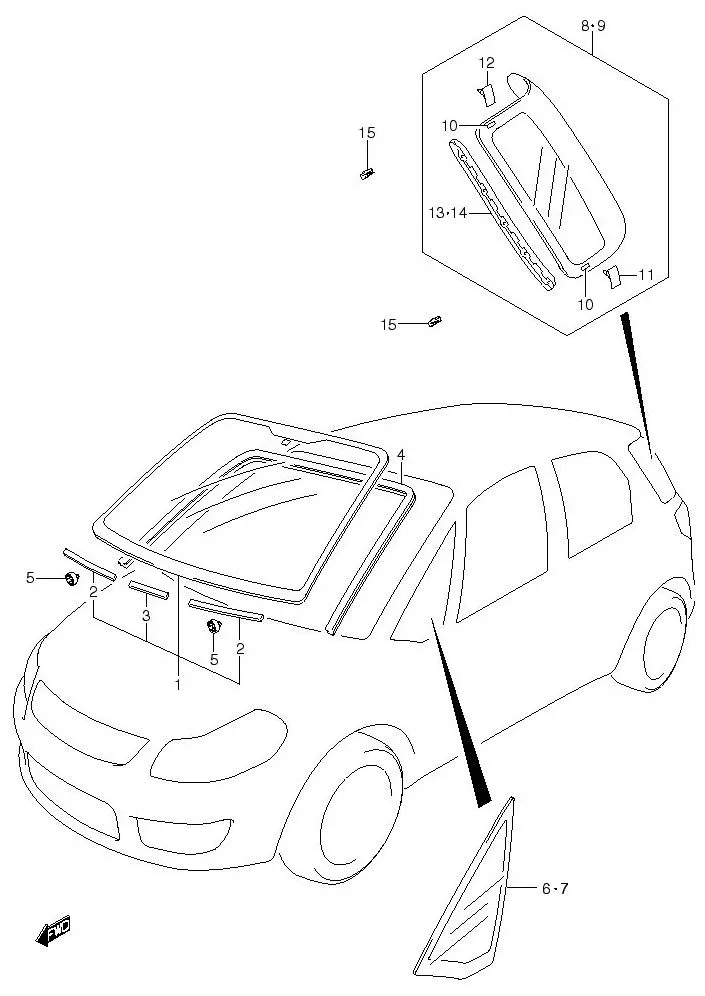

FIG.121 WINDSHIELD GLASS (5DR)

FIG.121 WINDSHIELD GLASS (5DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 84051B81K00N000	GLASS, WINDSHIELD	1	-
2	84617M79F00-000 SUB: 84617M60D00-000	•SPACER, WINDSHIELD GLASS	2	Rp14.500
3	84618-76F00-000 SUB: 84618M76F00-000	•SPACER, WINDSHIELD GLASS	1	Rp54.500
4	84512-81K00-000 SUB: 84512B81K00N000	•MOLDING, WINDSHIELD UPPER	1	Rp129.500
5	84618-76G10-000	STOPPER, WINDSHIELD GLASS	2	Rp30.000
6	DISCONTINUE SUB: 84550B80J10N000	GLASS, FR PILLAR WINDOW RH	1	-
7	DISCONTINUE SUB: 84560B80J10N000	GLASS, FR PILLAR WINDOW LH	1	-
8	DISCONTINUE SUB: 84580B79J00N000	GLASS, QTR WINDOW RH (GREEN)	1	-
9	DISCONTINUE SUB: 84590B79J00N000	GLASS, QTR WINDOW LH (GREEN)	1	-
10	84513-76F00-000	•MALE, GLASS FASTENER NO.2	4	Rp38.500
11	DISCONTINUE SUB: 84585-80J00-000	•CLIP, QTR WINDOW LOWER	2	-
12	DISCONTINUE SUB: 84586-80J00-000	•CLIP, QTR WINDOW UPPER	2	-
13	84582-79J00-000	•GARNISH, QTR WINDOW GLASS RH	1	-
14	84592-79J00-000	•GARNISH, QTR WINDOW GLASS LH	1	-
15	84514-65D00-000	FEMALE, GLASS FASTENER NO.1	4	Rp41.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
