SX4, NEO BALENO

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.90 FRONT HOOD ANELFIG.91 FRONT FENDERFIG.92 FRONT BODY PANELFIG.93 FLOOR PANEL (4DR)FIG.94 FLOOR PANEL (5DR)FIG.95 SIDE BODY PANEL (4DR)FIG.96 SIDE BODY PANEL (5DR)FIG.97 ROOF PANEL (4DR)FIG.98 ROOF PANEL (5DR)FIG.99 FRONT BUMPER (4DR)FIG.100 FRONT BUMPER (5DR)FIG.101 REAR BUMPER (4DR)FIG.102 REAR BUMPER (5DR)FIG.103 INSTRUMENT PANELFIG.104 VENTILATORFIG.105 HEATERFIG.106 HEATER CONTROLFIG.107 CONSOLE BOXFIG.108 FLOOR CARPET (4DR)FIG.109 FLOOR CARPET (5DR)FIG.110 INTERIOR TRIM (4DR)FIG.111 INTERIOR TRIM (5DR)FIG.112 BODY CAP/COVERFIG.113 FUEL LID OPENERFIG.114 ROOF LINING (4DR)FIG.115 ROOF LINING (5DR)FIG.116 MOLDING (4DR)FIG.117 MOLDING (5DR)FIG.118 SPLASH GUARD (5DR:DX)FIG.119 EMBLEMFIG.120 FRONT/BACK GLASS (4DR)FIG.121 WINDSHIELD GLASS (5DR)FIG.122 FRONT DOOR PANELFIG.123 FRONT DOOR REGULATORFIG.124 FRONT DOOR LOCKFIG.125 REAR DOOR PANEL (4DR)FIG.126 REAR DOOR REGULATOR (4DR)FIG.127 REAR DOOR LOCK (4DR)FIG.128 REAR DOOR PANEL (5DR)FIG.129 REAR DOOR REGULATOR (5DR)FIG.130 REAR DOOR LOCK (5DR)FIG.131 TRUNK LID (4DR)FIG.132 TRUNK LID LOCK (4DR)FIG.133 BACK DOOR PANEL (5DR)FIG.134 BACK DOOR LOCK (5DR)FIG.134 MIRROR/SUNVISORFIG.136 SEAT BELTFIG.137 FRONT SEAT (STD)FIG.138 FRONT SEAT (DX)FIG.139 REAR SEAT (4DR)FIG.140 RH REAR SEAT (5DR)FIG.141 LH REAR SEAT (5DR)FIG.142 PARCEL SHELF (5DR)FIG.143 FUEL TANKFIG.144 TOOLFIG.145 AIR CONDITIONER FIG.146 COMPRESSOR

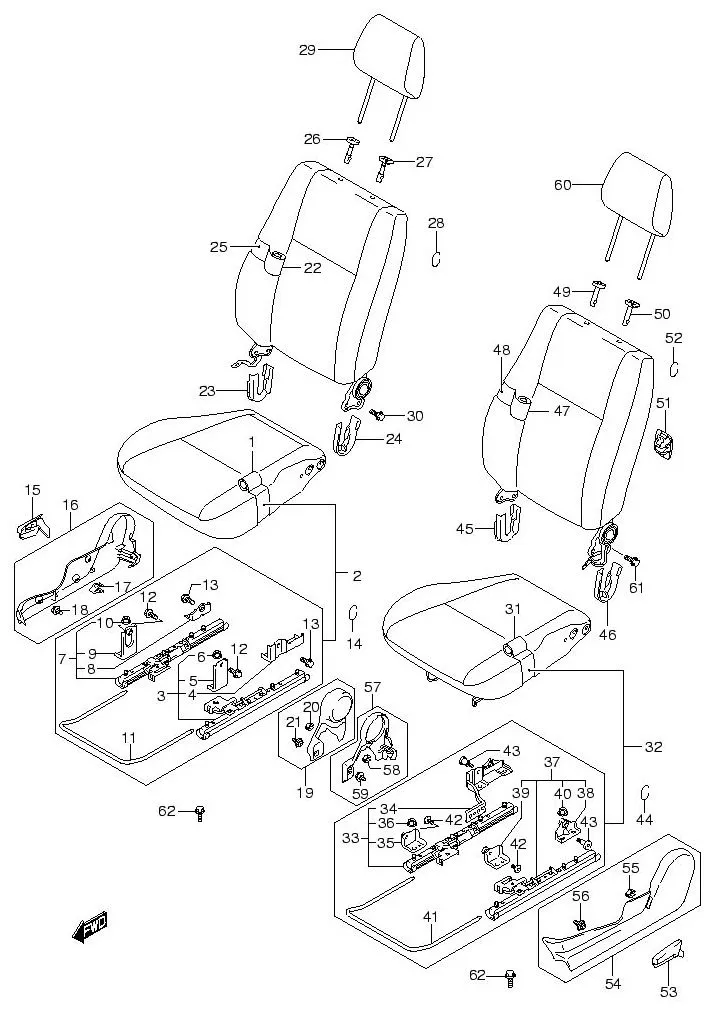

FIG.137 FRONT SEAT (STD)

FIG.137 FRONT SEAT (STD)
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 85180B63J50NEJZ		 TRIM, FR CUSHION 1 - 5DR
1-1 DISCONTINUE
SUB: 85180B63J50NETV		 TRIM, FR CUSHION 1 - 4DR
2 DISCONTINUE
SUB: 85105-80J21-000		 CUSHION SUB ASSY, FR RH 1 -
3 DISCONTINUE
SUB: 86601-80J00-000		 •ADJUSTER SUB ASSY, INSIDE 1 -
4 DISCONTINUE
SUB: 86712-63J50-000		 ••RISER 1 -
5 DISCONTINUE
SUB: 86721-63J50-000		 ••RISER 1 -
6 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
7 DISCONTINUE
SUB: 86603-80J00-000		 •ADJUSTER SUB ASSY, OUTSIDE 1 -
8 DISCONTINUE
SUB: 86641-63J50-000		 ••RISER 1 -
9 DISCONTINUE
SUB: 86711-63J50-000		 ••RISER 1 -
10 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
11 DISCONTINUE
SUB: 86691-63J00-000		 •HANDLE, ADJUSTER 1 -
12 01550-1016A-000
SUB: 01550B1016AN000		 •BOLT 2 Rp5.500
13 01550-1035A-000
SUB: 01550B1035AN000		 •BOLT 2 Rp5.500
14 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 11 Rp9.000
15-1 85211-65J00-R8H KNOB, RECLINING RH (BEIGE) 1 Rp64.500 4DR
15-2 85211-65JA0-P4Z
SUB: 85211-65J00-P4Z		 KNOB, RECLINING RH (GRAY) 1 Rp90.000 5DR
16-1 DISCONTINUE
SUB: 85220-63J20-R8H		 COVER, OUTSIDE RH (BEIGE) 1 - 4DR
16-2 85220-63J20-P4Z COVER, OUTSIDE RH (GRAY) 1 Rp488.000 5DR
17 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
18 09409-10313-000 •CLIP 2 Rp14.000
19-1 DISCONTINUE
SUB: 85240-65J00-R8H		 COVER, INSIDE LH (BEIGE) 1 - 4DR
19-2 85240-65J00-P4Z COVER, INSIDE LH (GRAY) 1 Rp141.000 5DR
20 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
21 09409-10313-000 •CLIP 1 Rp14.000
22-1 DISCONTINUE
SUB: 85380B63J40NETV		 TRIM, FR BACK RH (BLACK) 1 - 4DR
22-2 DISCONTINUE
SUB: 85380B63J40NEJZ		 TRIM, FR BACK RH 1 - 5DR
23-1 DISCONTINUE
SUB: 85222-63J00-R8H		 COVER, BACK FRAME RH (BEIGE) 1 - 4DR
23-2 DISCONTINUE
SUB: 85222M63J00-P4Z		 COVER, BACK FRAME RH (GRAY) 1 - 5DR
24-1 DISCONTINUE
SUB: 85242-63J00-R8H		 COVER, BACK FRAME LH (BEIGE) 1 - 4DR
24-2 DISCONTINUE
SUB: 85242-63J00-P4Z		 COVER, BACK FRAME LH (GRAY) 1 - 5DR
25 DISCONTINUE
SUB: 85305B63JG0N000		 BACK SUB ASSY, FR RH 1 -
26-1 DISCONTINUE
SUB: 85341-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - 4DR
26-2 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 - 5DR
27-1 DISCONTINUE
SUB: 85840-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - 4DR
27-2 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 - 5DR
28 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 2 Rp9.000
29-1 DISCONTINUE
SUB: 86401-65J00-V2E		 HEADRESTRAINT ASSY (BLACK) 1 - 4DR
29-2 DISCONTINUE
SUB: 86401-65J00-U9C		 HEADRESTRAINT ASSY (BLACK) 1 - 5DR
30 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
31-2 85680-63J50-EJZ TRIM, FR CUSHION LH 1 - 5DR
31-1 85680-63J50-ETV TRIM, FR CUSHION LH 1 - 4DR
32 DISCONTINUE
SUB: 85106-80J40-000		 CUSHION SUB ASSY, FR LH 1 -
33 DISCONTINUE
SUB: 86602-80J00-000		 •ADJUSTER SUB ASSY, INSIDE 1 -
34 DISCONTINUE
SUB: 86762-63J50-000		 ••RISER 1 -
35 DISCONTINUE
SUB: 86721-63J50-000		 ••RISER 1 -
36 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
37 86604-80J01-000
SUB: 86604-80J00-000		 •ADJUSTER SUB ASSY, OUTSIDE 1 Rp1.574.000
38 DISCONTINUE
SUB: 86641-63J50-000		 ••RISER 1 -
39 DISCONTINUE
SUB: 86711-63J50-000		 ••RISER 1 -
40 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
41 DISCONTINUE
SUB: 86691-63J00-000		 •HANDLE, ADJUSTER 1 -
42 01550-1016A-000
SUB: 01550B1016AN000		 •BOLT 2 Rp5.500
43 01550-1035A-000
SUB: 01550B1035AN000		 •BOLT 2 Rp5.500
44 09387-19001-000
SUB: 09387B19001N000		 RING 11 Rp9.000
45-1 DISCONTINUE
SUB: 85222-63J00-R8H		 COVER, BACK FRAME RH (BEIGE) 1 - 4DR
45-2 DISCONTINUE
SUB: 85222M63J00-P4Z		 COVER, BACK FRAME RH (GRAY) 1 - 5DR
46-1 DISCONTINUE
SUB: 85242-63J00-R8H		 COVER, BACK FRAME LH (BEIGE) 1 - 4DR
46-2 DISCONTINUE
SUB: 85242-63J00-P4Z		 COVER, BACK FRAME LH (GRAY) 1 - 5DR
47-1 85880-63J50-ETV TRIM, FR BACK LH (BLACK) 1 - 4DR
47-2 85880-63J50-EJZ TRIM, FR BACK LH 1 - 5DR
48 DISCONTINUE
SUB: 85306-63JL0-000		 BACK SUB ASSY, FR LH 1 -
49-1 DISCONTINUE
SUB: 85341-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - 4DR
49-2 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 - 5DR
50-1 DISCONTINUE
SUB: 85840-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 - 4DR
50-2 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 - 5DR
51-1 86590-58J01-R8H HOOK, SEAT BACK (BEIGE) 1 Rp129.500 4DR
51-2 86590-58J01-P4Z HOOK, SEAT BACK (GRAY) 1 Rp85.500 5DR
52 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 2 Rp9.000
53-1 85711-65JA0-R8H
SUB: 85711-65J00-R8H		 KNOB, RECLINING LH (BEIGE) 1 Rp69.000 4DR
53-2 85711-65JA0-P4Z
SUB: 85711-65J00-P4Z		 KNOB, RECLINING LH (GRAY) 1 Rp81.500 5DR
54-1 DISCONTINUE
SUB: 85720-63J20-R8H		 COVER, OUTSIDE LH (BEIGE) 1 - 4DR
54-2 DISCONTINUE
SUB: 85720-63J20-P4Z		 COVER, OUTSIDE LH (GRAY) 1 - 5DR
55 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
56 09409-10313-000 •CLIP 2 Rp14.000
57-1 DISCONTINUE
SUB: 85740-65J00-R8H		 COVER, INSIDE LH (BEIGE) 1 - 4DR
57-2 85740-65J00-P4Z COVER, INSIDE LH (GRAY) 1 Rp170.500 5DR
58 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
59 09409-10313-000 •CLIP 1 Rp14.000
60-1 DISCONTINUE
SUB: 86401-65J00-V2E		 HEADRESTRAINT ASSY (BLACK) 1 - 4DR
60-2 DISCONTINUE
SUB: 86401-65J00-U9C		 HEADRESTRAINT ASSY (BLACK) 1 - 5DR
61 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
62 09119-08097-000 BOLT 8 Rp27.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
