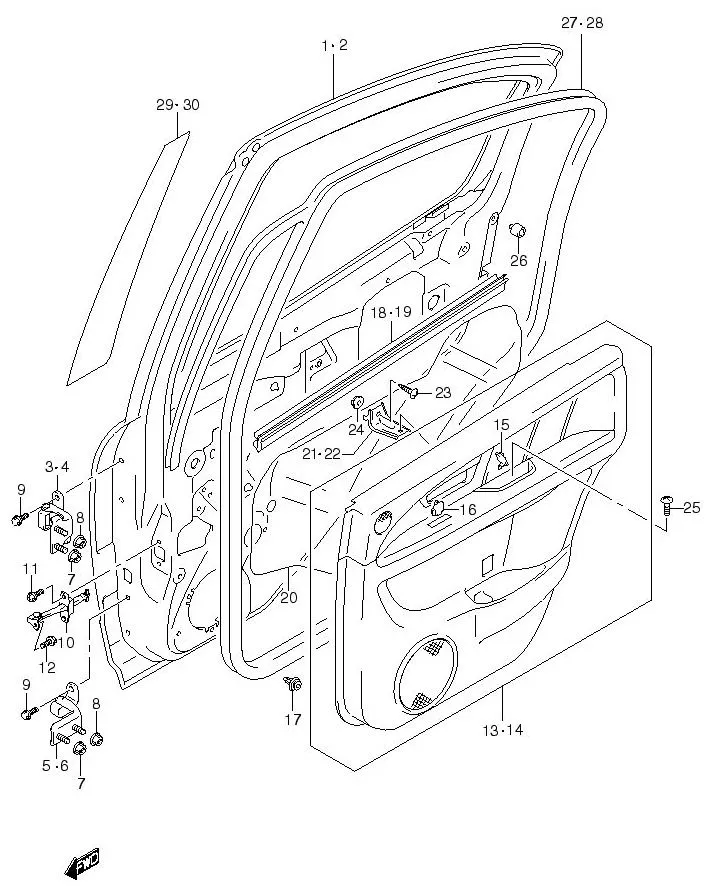

FIG.125 REAR DOOR PANEL (4DR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 68003-75811-000	PANEL ASSY, REAR DOOR RH	1	-
2	DISCONTINUE SUB: 68004-75811-000	PANEL ASSY, REAR DOOR LH	1	-
3	69410-63J00-000	HINGE, REAR DOOR UPPER RH	1	Rp528.000
4	69420-63J00-000	HINGE, REAR DOOR UPPER LH	1	Rp528.000
5	69430-63J00-000	HINGE, REAR DOOR LOWER RH	1	Rp528.000
6	69440-63J00-000	HINGE, REAR DOOR LOWER LH	1	Rp528.000
7	08361-2508A-000	NUT	4	Rp16.500
8	09159-08132-000	NUT	4	Rp19.500
9	09103M08557-000 SUB: 69491-65D10-000	BOLT, DOOR	8	Rp8.500
10	81810-54G04-000 SUB: 81810-54G01-000	STOP, REAR DOOR OPEN	2	Rp447.500
11	09122-86004-000	SCREW (6X20)	4	Rp15.000
12	09112-08004-000	SCREW (8X25)	2	Rp26.000
13	DISCONTINUE SUB: 83730-75KL0-EMS	TRIM, REAR DOOR RH (BEIGE)	1	-
14	DISCONTINUE SUB: 83740-75KL0-EMS	TRIM, REAR DOOR LH (BEIGE)	1	-
15	DISCONTINUE SUB: 83752-80J00-R8H	•CAP, INSIDE PULL CASE (BEIGE)	2	-
16	DISCONTINUE SUB: 83754-80J00-P4Z	•CAP, INSIDE HANDLE BEZEL (GRAY)	2	-
17	09409-10327-000 SUB: 09409B10312N000	CLIP	14	Rp5.000
18	83871-75KB0-000	WEATHERSTRIP, DOOR INNER RH	1	Rp458.500
19	83881-75KB0-000	WEATHERSTRIP, DOOR INNER LH	1	Rp458.500
20	DISCONTINUE SUB: 83913-80J00-000	COVER, DOOR SEALING	2	-
21	83751-75HA0-000 SUB: 83751B75HA0N000	BRACKET, DOOR TRIM RH	1	Rp8.000
22	83756-75HA0-000 SUB: 83756B75HA0N000	BRACKET, DOOR TRIM LH	1	Rp8.000
23	03241M0612A-000	SCREW	2	Rp6.500
24	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
25	09132-05058-000	SCREW (5X12)	2	Rp14.000
26	82711-65J00-000	STOPPER, DOOR	2	Rp34.000
27	84661-75KA0-000	WEATHERSTRIP, DOOR OPENING RH	1	Rp1.169.000
28	84671-75KA0-000	WEATHERSTRIP, DOOR OPENING LH	1	Rp1.169.000
29	83931-81K00-0CB SUB: 83931B80J00N0CB	TAPE, RR DOOR OUTER RH	1	Rp124.000	BODY COLOR:ZDL,ZFM,ZLJ,ZLK,ZLL,ZLT
30	83932-80J00-0CB SUB: 83932B80J00N0CB	TAPE, RR DOOR OUTER LH	1	Rp489.500	BODY COLOR:ZDL,ZFM,ZLJ,ZLK,ZLL,ZLT
