Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

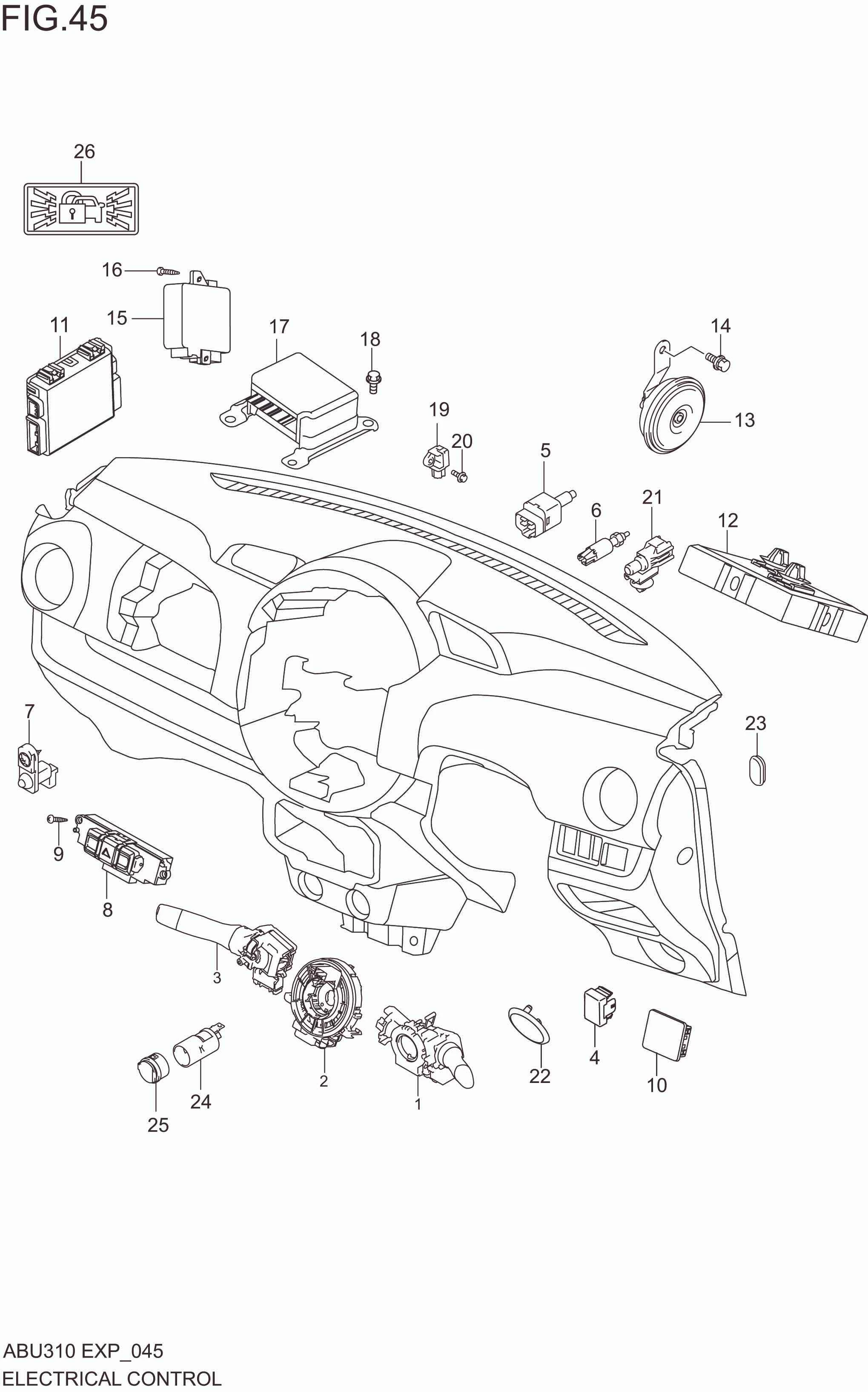

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37210M68P01-000	SWITCH ASSY, LIGHTING & TURN	1	Rp476.000
2	37480M62S00-000	CABLE ASSY, CONTACT COIL	1	Rp352.000
3	37310M68P01-000	SWITCH ASSY, WIPER & WASHER	1	Rp381.500
4	37285-75J00-000	CAP, OPTION SW HOLE	3	Rp11.000
5-1	37740M76G00-000 SUB: 37740M79G00-000	SET, STOP LAMP SW	1	Rp105.500	5MT
5-2	37740M83K00-000	SET, STOP LAMP SW	1	Rp109.000	5AGS
6	37970M74L02-000	SWITCH ASSY, CLUTCH	1	Rp165.500	5MT
7	37670M56R00-000	SWITCH ASSY, DOOR	4	Rp54.000
8	37990M62S01-000 SUB: 37990M62S00-000	SWITCH ASSY, P/W AND HAZARD	1	Rp303.000
9	03541-0410A-000	SCREW	2	Rp11.000
10	37285M62S00-000	CAP, MIRROR SW HOLE	1	Rp11.500
11	36775M62SE0-000	CONTROLLER ASSY, BODY ELEC	1	Rp1.435.000
12	37730M62S00-000	CONTROLLER ASSY, PARK SNSR	1	Rp608.000
13	38500M62S00-000	HORN ASSY, MIDDLE PITCHED	1	Rp152.500
14	09115-08001-000	BOLT (8X18)	1	Rp21.500
15	38720M62S02-000	CONTROLLER ASSY, EPS	1	Rp2.194.000
16	02142-0516A-000	SCREW	2	Rp3.500
17	38910M62S20-000	CONTROLLER ASSY, A/B	1	Rp1.397.500
18	09115-06004-000	BOLT (6X16)	3	Rp19.500
19	3F920M81R00-000	SENSOR ASSY, FORWARD RIGHT	1	Rp335.000
20	02162-0620A-000	BOLT	1	Rp5.500
21	95643M67P00-000	SENSOR, OUTSIDE AIR TEMP	1	Rp189.000	5AGS
22	35163M62S00-000	CAP, HEADLAMP LEVELER HOLE	1	Rp9.000
23	35164M62S00-000	GROMMET, HEADLAMP LEVELER HOLE	1	Rp11.000
24	39420M83P00-000	BODY, SOCKET	1	Rp102.000
25	39440M56R20-5PK	COVER, SOCKET (BLACK)	1	Rp18.000
26	36771-52R11-000	LABEL,SECURITY ALARM	1	Rp38.000
