Preview Engine Transmission Electrical Suspension Body

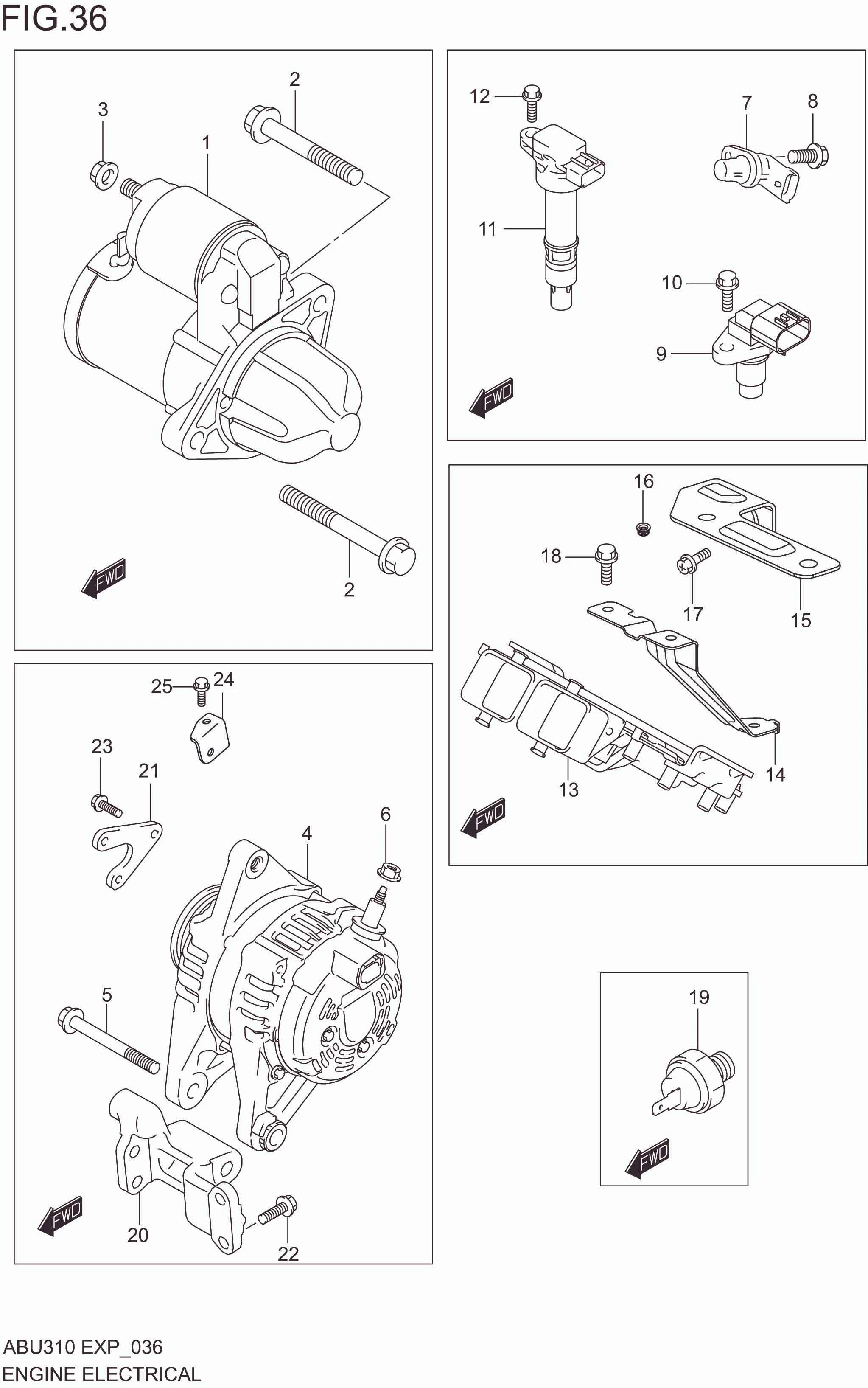

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100M55R04-000	MOTOR ASSY,STARTING	1	Rp2.743.000
2	01550-1060A-000	BOLT	2	Rp5.500
3	08316-1008A-000	NUT	1	Rp3.500
4	31400M69R00-000	GENERATOR ASSY	1	Rp6.407.500
5	01550-1085A-000	BOLT	1	Rp7.000
6	08316-1006A-000	NUT	1	Rp2.000
7	33220M55K20-000	SENSOR ASSY,CAM POSITION	1	Rp364.000
8	01550-0616A-000	BOLT	1	Rp3.500
9	33220M53M00-000	SENSOR ASSY,POSITION	1	Rp883.500
10	09103M06317-000	BOLT,CKP SENSOR	1	Rp6.500
11	33400M68P00-000	COIL ASSY,IGNITION	3	Rp597.500
12	09135M06032-000	BOLT	3	Rp9.000
13-2	33920M62S90-000	CONTROLLER ASSY,EPI	1	Rp3.573.500	5AGS
13-1	33920M62S80-000	CONTROLLER ASSY,EPI	1	Rp3.563.500	5MT
14	33924M62S00-000	BRACKET,EPI CONT FR	1	Rp17.000
15	33924M62S10-000	BRACKET,EPI CONT RR	1	Rp12.000
16	34955-70K00-000	BUSH,EPI BRKT	1	Rp8.500
17	02162-0616A-000	SCREW	1	Rp3.000
18	02162-0625A-000	SCREW	4	Rp3.500
19	37820M68K00-000	SWITCH ASSY,OIL PRESSURE	1	Rp199.500
20	11551M69R00-000	BRACKET,GENERATOR	1	Rp183.000
21	11561M68PA0-000	ARM,GEN BELT	1	Rp28.500
22	11564-68P00-000	BOLT,GENERATOR	1	Rp23.500
23	01550-0825A-000	BOLT,GENERATOR BRKT	4	Rp3.500
24	11562M66R01-000	ADJUSTER,GENERATOR	1	Rp26.500
25	11563-61M00-000	BOLT,GEN BELT ADJUSTING	1	Rp57.000
