Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETERHEAD LAMPREAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL LOCK SETFRONT WINDOW WIPER WINDOW WASHERAUDIO (N/TUNER)

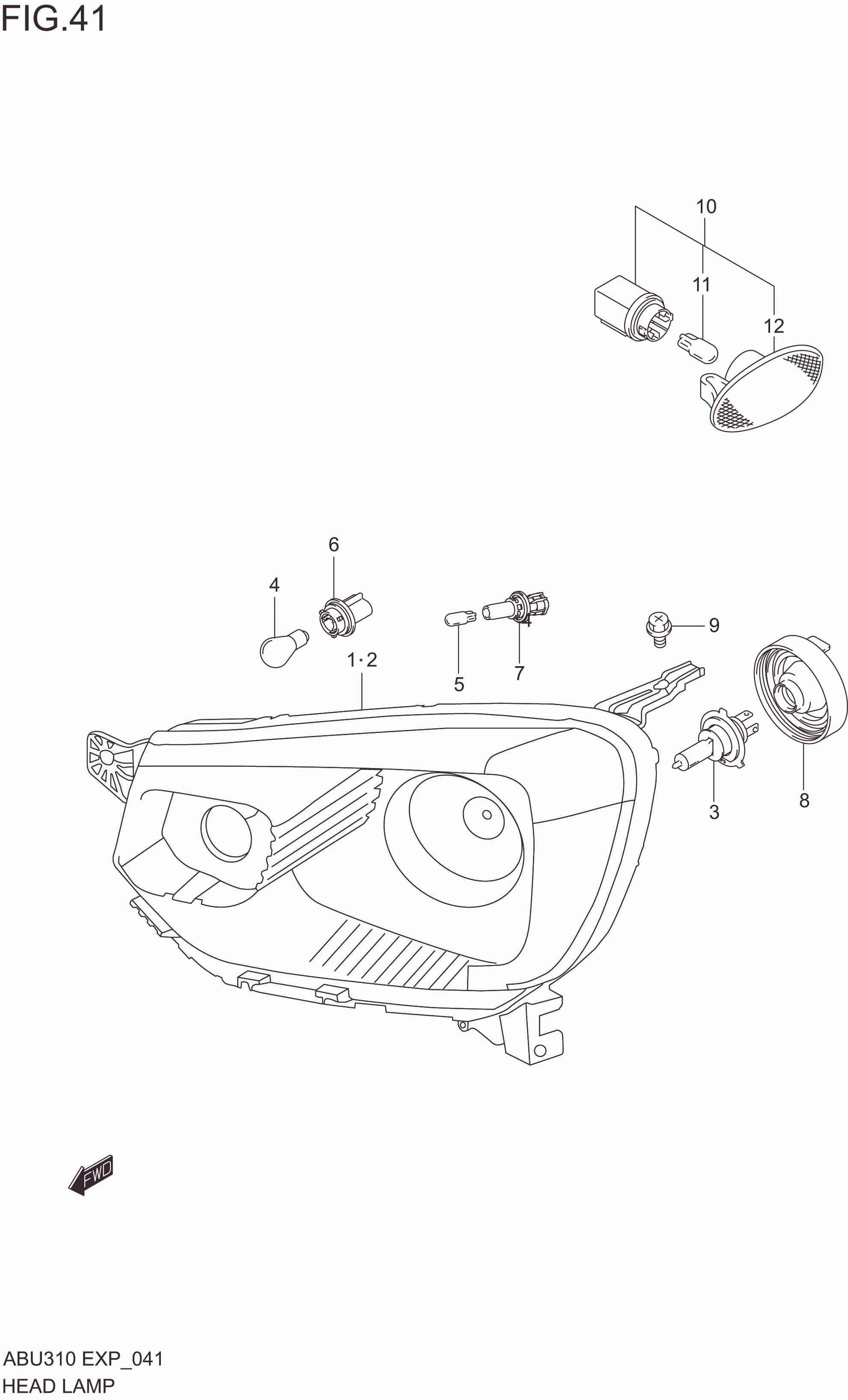

HEAD LAMP

HEAD LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35121M62S20-000 UNIT HEAD LAMP, RH 1 Rp702.000
2 35321M62S20-000 UNIT HEAD LAMP, LH 1 Rp702.000
3 09471M12090-000 BULB (12V,60/55W H4) 2 Rp42.500
4 09471-12186-000 BULB (12V21W) 2 Rp22.000
5 09471-12216-000 BULB (12V,5W) 2 Rp15.000
6 36110M74L00-000 SOCKET, TURNSIGNAL LAMP 2 Rp35.000
7 36118M75L00-000 SOCKET, POSITION LAMP 2 Rp72.500
8 35125M79G00-000 DUST COVER 2 Rp42.000
9 02142-0616A-000 SCREW 6 Rp3.000
10-1 36410M75F30-000
SUB: 36410M75F20-000		 LAMP ASSY, SIDE TURN SIG 2 Rp55.000 VENDOR 1
10-2 36410M75F30-000 LAMP ASSY, SIDE TURN SIG 2 Rp55.000 VENDOR 2
11 09471-12216-000 .BULB (12V5W) 2 Rp15.000
12-1 36412M75F01-000 .LENS 2 Rp21.000 VENDOR 1
12-2 36412M75F11-000 .LENS 2 Rp36.000 VENDOR 2

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
