Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL ENGINE ELECTRICALSTARTING MOTORGENERATORBATTERYSPEEDOMETERHEAD LAMPREAR LAMPROOM LAMPWIRING HARNESSELECTRICAL CONTROL LOCK SETFRONT WINDOW WIPER WINDOW WASHERAUDIO (N/TUNER)

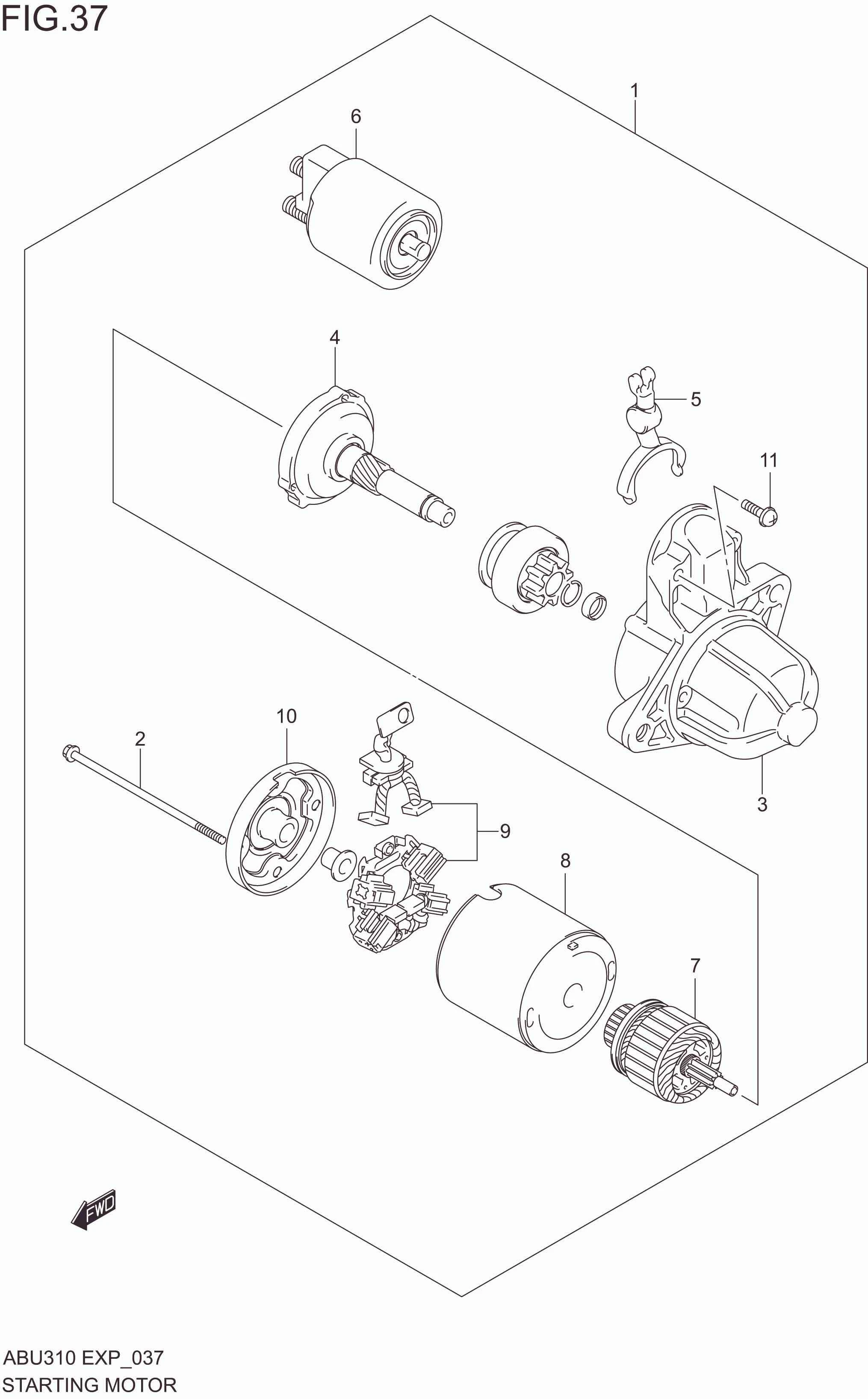

STARTING MOTOR

STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100M55R04-000 MOTOR ASSY, STARTING 1 Rp2.743.000
2 31174M55R00-000 .BOLT 2 Rp18.500
3 31150M55R02-000 .HOUSING ASSY 1 Rp216.500
4 31340M55R01-000 .SHAFT ASSY 1 Rp560.000
5 31190M55R00-000 .LEAVER ASSY 1 Rp35.000
6 31220M55R02-000 .SWITCH ASSY 1 Rp511.500
7 31311M55R00-000 .ARMATURE 1 Rp583.000
8 31110M55R01-000 .YOKE ASSY 1 Rp150.000
9 31173M55R00-000 .HOLDER ASSY 1 Rp212.000
10 31170M55R00-000 .FRAME ASSY 1 Rp50.500
11 31221M55R00-000 .BOLT 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
