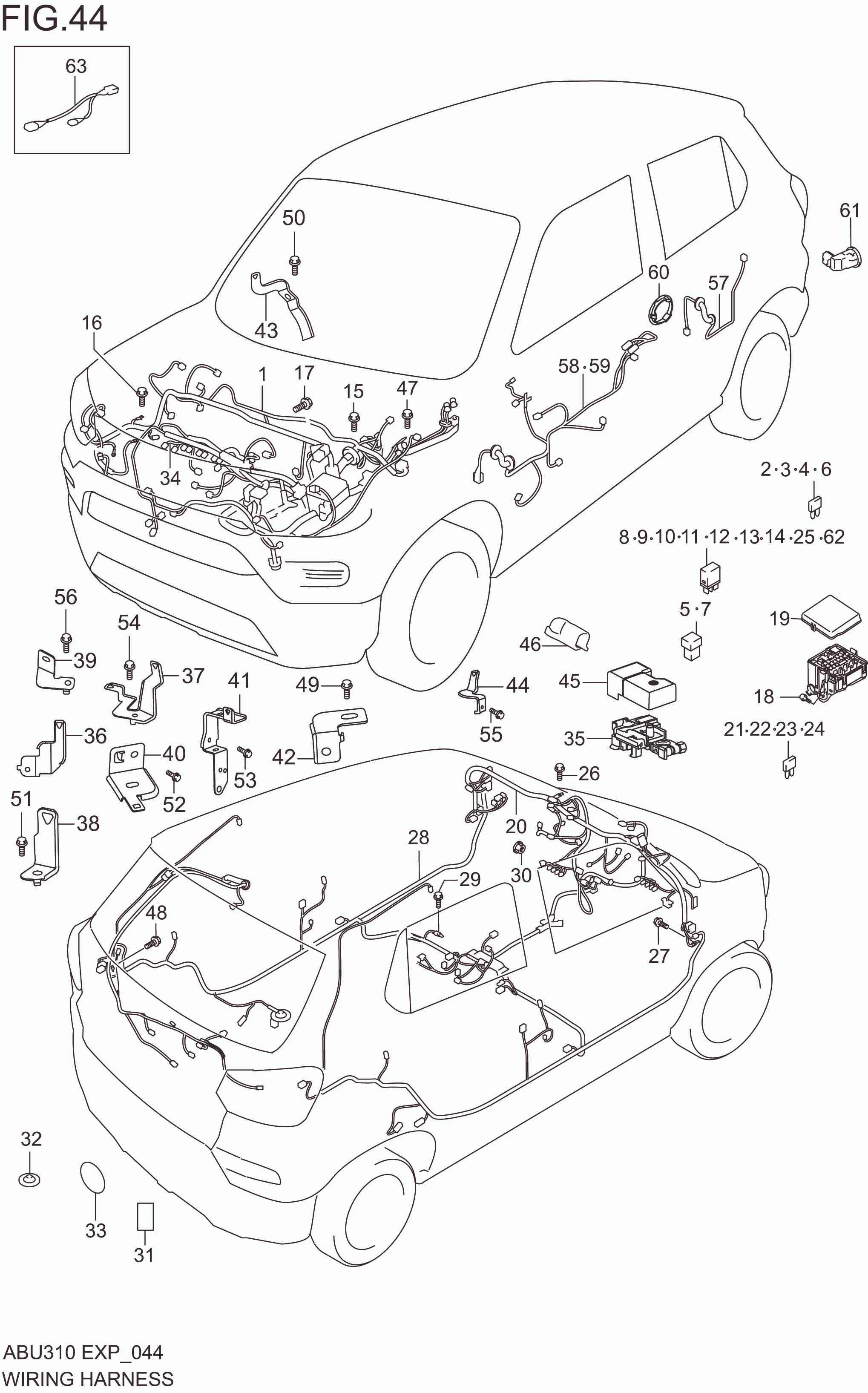

WIRING HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	36610M62SL0-000	HARNESS ASSY, MAIN	1	Rp5.344.000	5MT
1-1	36610M62SK0-000	HARNESS ASSY, MAIN	1	Rp4.611.000	5AGS
2	09481-10504-000	.FUSE (10A)	0	Rp12.500
3	09481-15504-000	.FUSE (15A)	0	Rp13.000
4	09481-25504-000	.FUSE (25A)	0	Rp17.500
5	09481M30402-000	.FUSE (30A)	0	Rp20.500
6	09481-30504-000	.FUSE (30A)	0	Rp15.000
7	09481-40403-000	.FUSE (40A)	0	Rp51.500
8	38860M76M00-000	.RELAY ASSY, ST	1	Rp58.500
9	38860M76M00-000	.RELAY ASSY, RDTR	1	Rp58.500
10	38860M76M00-000	.RELAY ASSY, HTR	1	Rp58.500
11	38860M76M00-000	.RELAY ASSY, HORN	1	Rp58.500
12	38860M76M00-000	RELAY ASSY, MAIN	1	Rp58.500
13	38860M76M00-000	RELAY ASSY, FUEL PUMP	1	Rp58.500
14	38860M76M00-000	RELAY, A/C	1	Rp58.500	W/AC
15	09115-06005-000	BOLT (6X16)	2	Rp14.000
16	09115-06005-000	BOLT (6X16)	1	Rp14.000
17	01550-0612A-000	BOLT	1	Rp3.500
18	02162-0616A-000	BOLT	2	Rp3.000
19	36717M62S00-000	COVER, RELAY BOX	1	Rp49.500
20	36620M62SC0-000	HARNESS ASSY, INSTPN	1	Rp2.443.000
21	09481-10504-000	.FUSE (10A)	0	Rp12.500
22	09481-15504-000	.FUSE (15A)	0	Rp13.000
23	09481-20504-000	.FUSE (20A)	0	Rp14.500
24	09481-30403-000	.FUSE (30A)	0	Rp41.000
25	38860M76M00-000	.RELAY ASSY, RR DEF	1	Rp58.500	W/RR DEF
26	09115-06005-000	BOLT (6X16)	2	Rp14.000
27	02162-0612A-000	BOLT	1	Rp11.000
28-1	36630M62SD0-000	HARNESS ASSY, FLOOR	1	Rp2.051.500	5MT
28-2	36630M62SF0-000	HARNESS ASSY, FLOOR	1	Rp2.251.000	5AGS
29	09115-06005-000	BOLT (6X16)	2	Rp14.000
30	09159-08127-000 SUB: 09159M08153-000	NUT	2	Rp11.000
31-2	36930M70F10-000	COVER, FLOOR HARNESS	1	Rp4.000	VENDOR 2
31-1	36930M70F10-000 SUB: 36930M70F00-000	COVER, FLOOR HARNESS	1	Rp4.000	VENDOR 1
32	36993M67L00-000	GROMMET, RR DEF WIRE	2	Rp4.000	W/RR DEF
33	DISCONTINUE SUB: 67627-70000-000	SEAL, DEF WIRE HOLE	2	-	N/RR DEF
34-1	36650M62S10-000	HARNESS ASSY, ENG	1	Rp2.450.000	5MT
34-2	36650M62S30-000	HARNESS ASSY, ENG	1	Rp3.584.000	5AGS
35	36739M62S00-000	.FUSE, BATTERY	1	Rp258.500
36	36651M62S00-000	BRACKET, ENG HARN MT	1	Rp10.000	5MT
37	36651M62S10-000	BRACKET, ENG HARN AGS	1	Rp13.500	5AGS
38	36651M62S20-000	BRACKET, ENG HARN AGS PROTCTOR	1	Rp7.500	5AGS
39	36651M62S30-000	BRACKET, ENG HARN BTRY	1	Rp5.000	5MT
40	36651M62S40-000	BRACKET, ENG HARN BODY	1	Rp8.000	5AGS
41	36651M62S50-000	BRACKET, ENG HARN CYL HEAD	1	Rp26.000
42	36651M62S60-000	BRACKET, ENG HARN HOOK	1	Rp10.000
43	36651M69R10-000	BRACKET, ENG HARN	1	Rp16.500
44	36653M81P10-000	BRACKET, CABLE AGS SIDE	1	Rp12.000	5AGS
45	36694M62S01-000	COVER, BTRY TERMINAL	1	Rp17.500
46	36997M68P10-000	COVER, TERMINAL	1	Rp65.000
47	09115-06005-000	BOLT (6X16)	1	Rp14.000	5MT
48	01550-0616A-000	BOLT	1	Rp3.500	5MT
49	01550-0616A-000	BOLT	1	Rp3.500	5AGS
50	01550-0612A-000	BOLT	2	Rp3.500	5MT
51	01550-0612A-000	BOLT	2	Rp3.500
52	01550-0612A-000	BOLT	3	Rp3.500	5AGS
53	01550-0612A-000	BOLT	1	Rp3.500	5AGS
54	01550-0612A-000	BOLT	1	Rp3.500
55	01550-0612A-000	BOLT	1	Rp3.500	5AGS
56	01550-0612A-000	BOLT	1	Rp3.500	5MT
57	36751M62S10-000	WIRE, RR DOOR	2	Rp68.000
58	36756M62S30-000	WIRE, DR DOOR	1	Rp170.000
59	36757M62S30-000	WIRE, SUB DOOR	1	Rp150.000
60	36759M62S00-000	PROTECTOR, DOOR HARN	2	Rp7.500
61	37735M62S01-5PK SUB: 37735M62S00-5PK	SENSOR ASSY, PARK (BLACK)	2	Rp315.500
62	38860M76M00-000	RELAY ASSY, BACK UP LAMP	1	Rp58.500	5AGS
63	36691M62S10-000	WIRE, A/B	1	Rp239.000	W/PASSENGER AIRBAG OPT
