Preview Engine Transmission Electrical Suspension Body

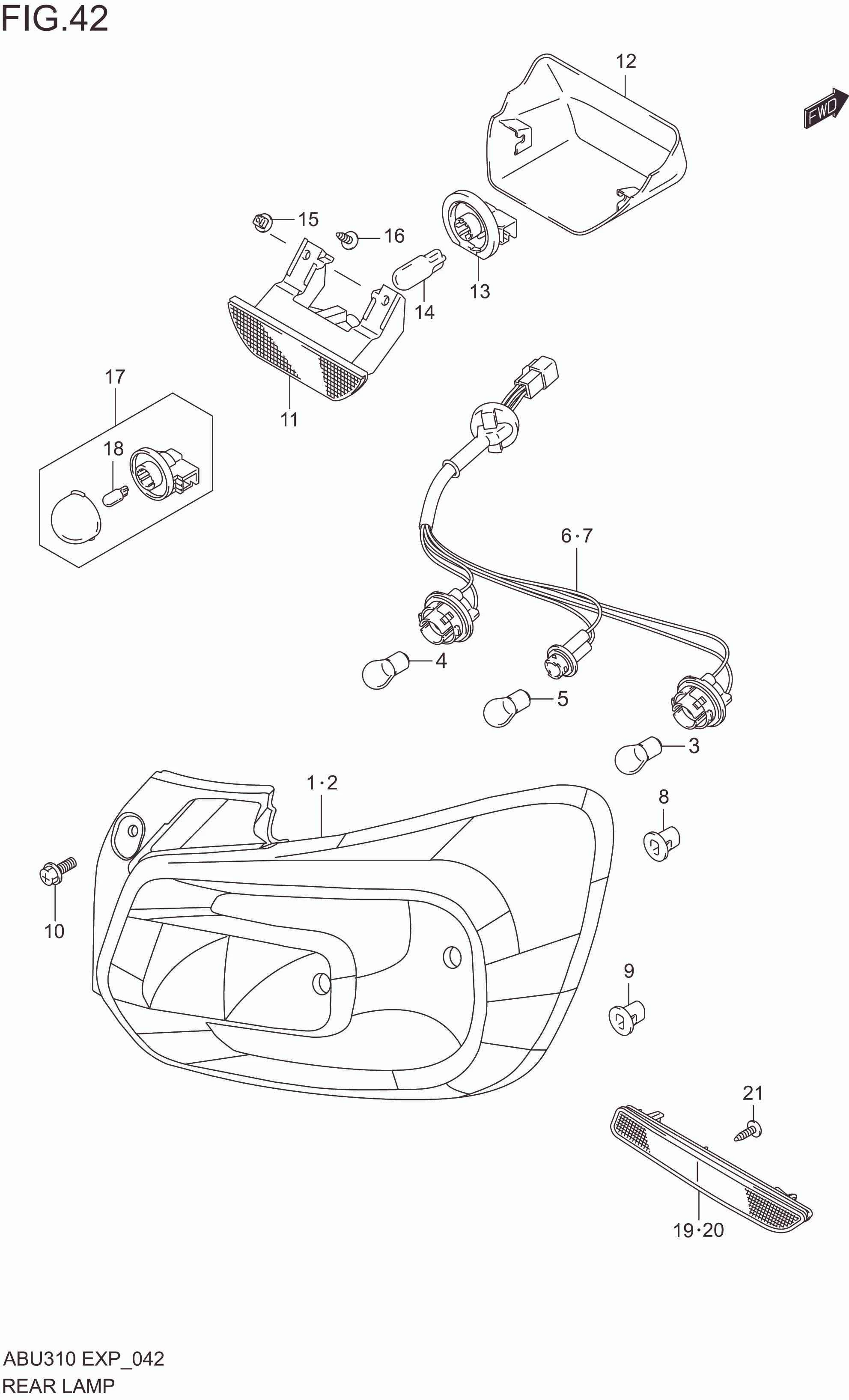

No	No. Part	Description	Qty	Price Per Pcs
1	35750M62S00-000	LAMP UNIT RR COMB, LH	1	Rp488.500
2	35650M62S00-000	LAMP UNIT RR COMB, RH	1	Rp488.500
3	09471-12046-000	BULB 12V,21/5W	2	Rp21.500
4	09471-12045-000	BULB 12V,21W	1	Rp13.500
5	09471-12245-000	BULB 12V,Y21W	2	Rp30.500
6	35658M62S00-000	WIRING HARNESS COMPLETE, LH	1	Rp130.000
7	35659M62S00-000	WIRING HARNESS COMPLETE, RH	1	Rp130.000
8	35153M59K10-000	GROMMET,REAR COMB LAMP LOWER	2	Rp8.000
9	35153M75L00-000	GROMMET,REAR COMB LAMP UPPER	2	Rp7.000
10	02142-0616A-000	SCREW	4	Rp3.000
11	35820M62S00-000	LAMP UNIT, HIGH MOUNT STOP	1	Rp38.500
12	35821M62S00-000	COVER, HIGH MT STOP LAMP	1	Rp32.000
13	35818M66L00-000	BULB HOLDER ASSY	1	Rp28.500
14	09471-12146-000	BULB (W16W)	1	Rp39.500
15	71851M70F00-000	NUT,HIGH MT STOP LAMP	2	Rp4.000
16	03541-0616A-000	SCREW	2	Rp13.500
17	35910M75J11-000	LAMP ASSY, LICENSE	2	Rp51.000
18	09471-12216-000	.BULB (12V 5W)	2	Rp15.000
19	35950M55K01-000	REFLECTOR ASSY, REAR	1	Rp54.000
20	35970M55K01-000	REFLECTOR ASSY, REAR	1	Rp54.000
21	03141-0516B-000 SUB: 03141-0516A-000	SCREW	2	Rp3.500
