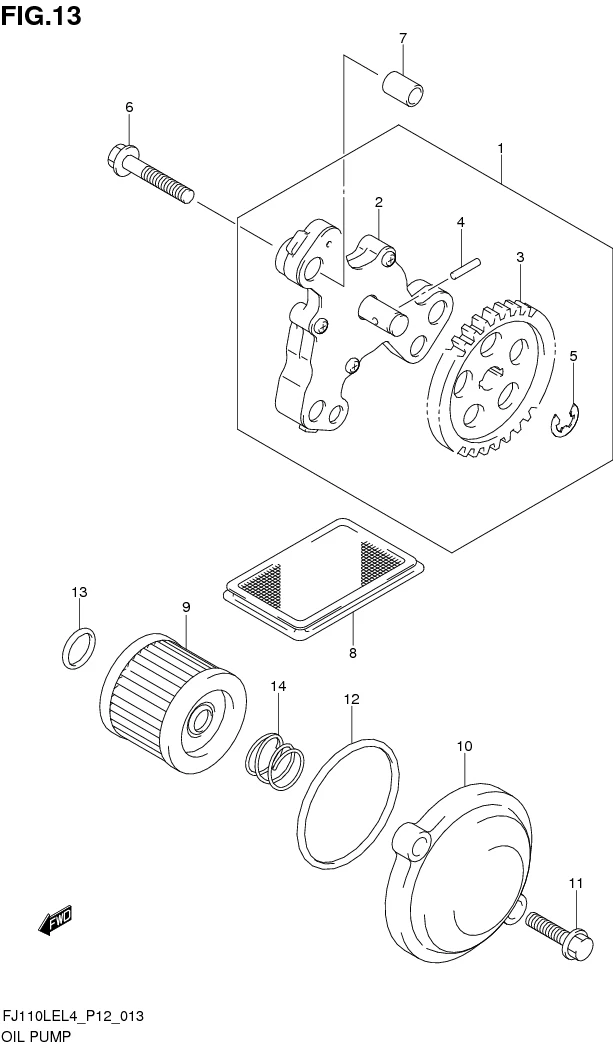

FIG. 13 OIL PUMP

FIG. 13 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16000-22J00-000
SUB: 16000B22J00N000		 PUMP SET, ENGINE OIL 1 Rp136.500
2 16400-22J00-000
SUB: 16400B22J00N000		 .PUMP ASSY, ENGINE OIL 1 Rp132.000
3 16331-22J00-000
SUB: 16331B22J00N000		 .GEAR, OIL PUMP DRIVEN (NT:29) 1 Rp12.500
4 09261-02008-000
SUB: 09261B02008N000		 .PIN (2.5X11.8) 1 Rp10.500
5 08332-1106A-000
SUB: 08332B1106AN000		 .E RING 1 Rp8.500
6 01547-0630A-000 BOLT 3 Rp6.500
7 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
8 16520-09402-000
SUB: 16520B09402N000		 STRAINER, ENGINE OIL 1 Rp18.000
9-1 16510-45H10-000
SUB: 16510B45H10N000		 FILTER, ENGINE OIL 1 Rp10.000
9-2 16510-45H20-000
SUB: 16510B45H20N000		 FILTER, ENGINE OIL 1 Rp9.000 OPT
10 16512-22J00-000
SUB: 16512B22J00N000		 CAP, OIL FILTER 1 Rp14.000
11 01547-0620B-000 BOLT 2 Rp6.500
12 09280-54001-000
SUB: 09280B54001N000		 O RING (D:2.4,ID:52.6) 1 Rp3.000
13 09280-13010-000 O RING (D:1.9,ID:12.5) 1 Rp3.000
14 16519-09J00-000 SPRING 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
