Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAMSHAFT/VALVEFIG. 9 CAM CHAINFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 MUFFLERFIG. 13 OIL PUMPFIG. 14 FUEL PUMPFIG. 15 CLUTCHFIG. 16 TRANSMISSIONFIG. 17 GEAR SHIFTINGFIG. 18 KICK STARTER

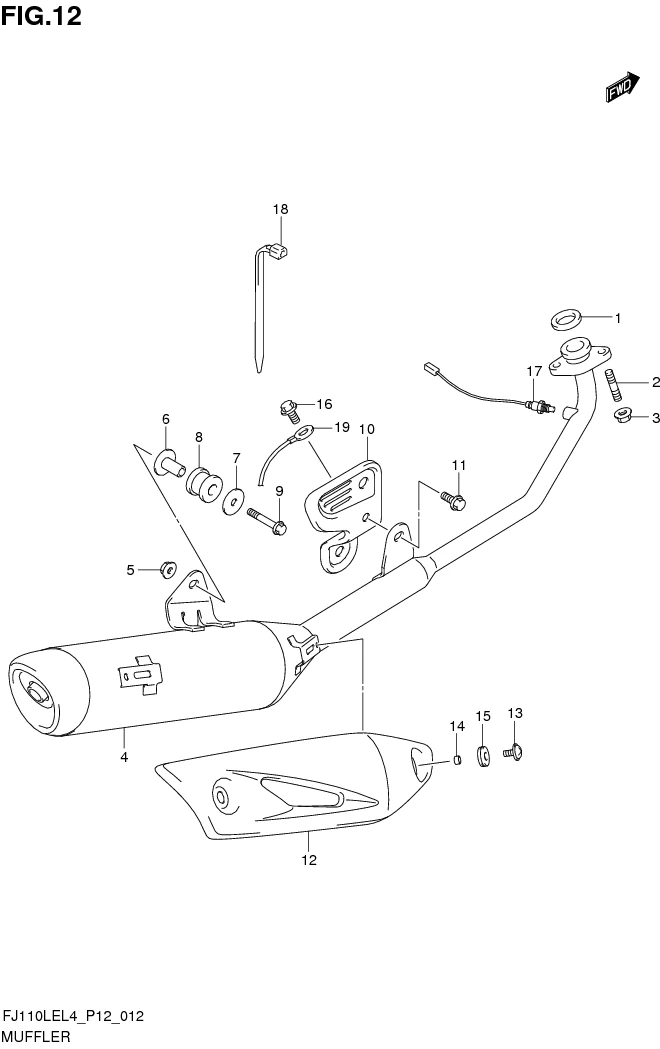

FIG. 12 MUFFLER

FIG. 12 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-30A20-000 GASKET, EXHAUST PIPE 1 Rp4.000
2 09108-08280-000
SUB: 09108B08280N000		 STUD BOLT 2 Rp8.000
3 08316-1008A-000 NUT 2 Rp3.500
4 14310-22J20-000 MUFFLER ASSY 1 Rp448.500
5 08316-1008A-000 NUT 1 Rp3.500
6 DISCONTINUE
SUB: 09180B08L01N000		 SPACER 1 -
7 09160-08149-000
SUB: 09160B08149N000		 WASHER (8.5X30X1.6) 1 Rp6.500
8 09320-12L06-000
SUB: 09320B12L06N000		 CUSHION 1 Rp5.500
9 01550-0840A-000
SUB: 01550B0840AN000		 BOLT 1 Rp3.500
10 14410-22J30-000 BRAKCKET, MUF SPRT 1 Rp30.000
11 09115-08L02-000 BOLT 1 Rp20.000
12 14781-22J10-0V0
SUB: 14781-22J20-000		 COVER, MUFFLER 1 Rp185.000
13 51875-07H30-000
SUB: 51875B07H30N000		 SCREW, MUFFLER COVER 2 Rp9.000
14 09180-06343-000
SUB: 09180B06343N000		 SPACER 2 Rp12.500
15 09320-08082-000
SUB: 09320B08082N000		 CUSHION 2 Rp10.500
16 09115-06L01-000 BOLT 1 Rp9.500
17 18213-09JB1-000 SENSOR, OXYGEN 1 Rp412.500
18 09404-06431-000 CLAMP (L:65) 1 Rp14.000
19 36851-22J00-000 WIRE, EARTH LEAD 1 Rp12.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
