Satria F115 Young Star

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 1 CYLINDER HEAD COVERFIG. 2 CYLINDER HEADFIG. 3 CYLINDERFIG. 4 CRANKCASEFIG. 5 CRANKCASE COVERFIG. 6 CRANKSHAFTFIG. 7 STARTER CLUTCHFIG. 8 CAMSHAFT/VALVEFIG. 9 CAM CHAINFIG. 10 THROTTLE BODYFIG. 11 AIR CLEANERFIG. 12 MUFFLERFIG. 13 OIL PUMPFIG. 14 FUEL PUMPFIG. 15 CLUTCHFIG. 16 TRANSMISSIONFIG. 17 GEAR SHIFTINGFIG. 18 KICK STARTER

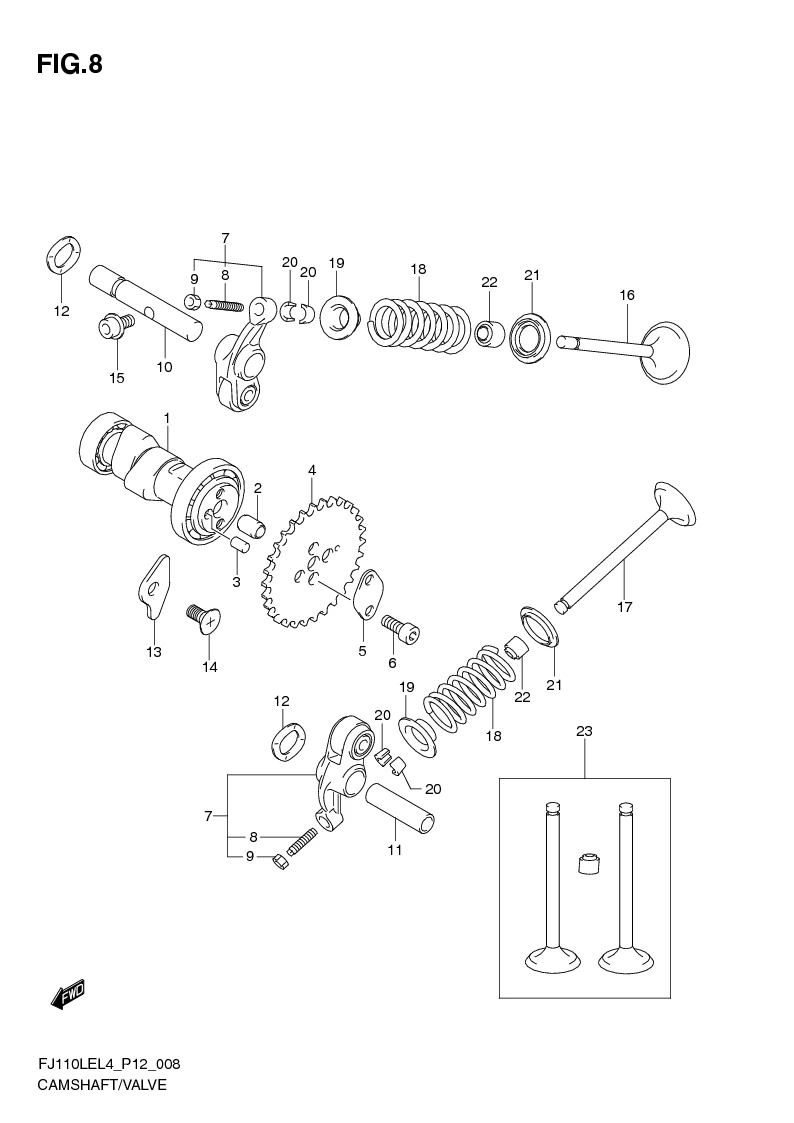

FIG. 8 CAMSHAFT/VALVE

FIG. 8 CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-22J20-000 CAM SHAFT 1 Rp223.000
2 09206-08008-000 PIN (6.3X8X12) 1 Rp4.000
3 09261-05005-000 PIN (5X8) 1 Rp3.000
4 DISCONTINUE
SUB: 12741B22J00N000		 SPROCKET, CAM SHAFT (NT:34) 1 -
5 12714-08H00-000
SUB: 12714B08H00N000		 WASHER, SPROCKET 1 Rp16.500
5 12842-09J20-000
SUB: 12842B09J00N000		 .SCREW, TAPPET ADJUSTING 2 Rp4.500
6 09106-05028-000 BOLT (5X15) 2 Rp6.500
6 12843-27A00-000 .NUT, TAPPET ADJUSTING 2 Rp19.000
7 12840-09J30-000
SUB: 12840-09J00-000		 ARM ASSY, VALVE ROCKER 2 Rp141.500
10 12861-22J00-000
SUB: 12861B22J00N000		 SHAFT, ROCKER ARM INTAKE 1 Rp13.500
11 12871-22J00-000
SUB: 12871B22J00N000		 SHAFT, ROCKER ARM EXHAUST 1 Rp8.500
12 09164-10017-000
SUB: 09164B10017N000		 WASHER 2 Rp10.500
13 12862-22J00-000
SUB: 12862B22J00N000		 RETAINER, CAMSHAFT 1 Rp20.500
14 02112-0612A-000 SCREW 1 Rp3.500
14 12932-09G00-000 COTTER, VALVE 4 Rp4.500
15 07120-0510A-000
SUB: 07120B0510AN000		 BOLT 1 Rp5.500
16 12911-22J00-000 VALVE, INTAKE 1 Rp25.000
17 12912-22J00-000 VALVE, EXHAUST 1 Rp40.500
18 12921-09J00-000 SPRING, VALVE 2 Rp11.000
19 12931-09G00-000 RETAINER, VALVE SPRING 2 Rp13.000
21 12933-09G00-000 SEAT, VALVE SPRING 2 Rp9.000
22 09289-05L01-000 SEAL (4.4X10.5X8.4) 2 Rp7.000
23 12900-22J00-KIT
SUB: 12900B22J00NKIT		 VALVE KIT 1 Rp78.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
